Name: B + B Thermo-Technik 0551 1100 Room sensor -30 up to +70 °C
Brand: B + B Thermo-Technik
SKU: 3089233
Availability: BackOrder

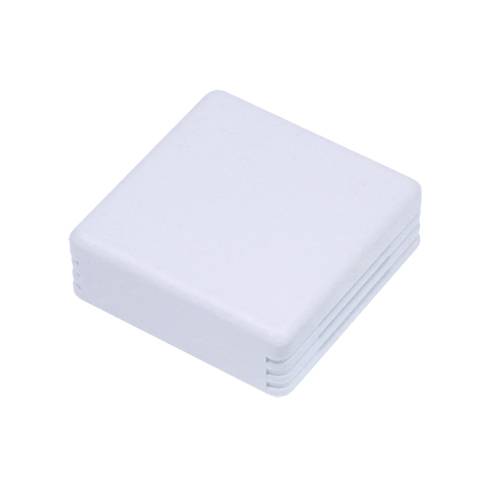

A white square plastic container with rounded corners.

Image similar

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 79.99 / piece)

€ 79.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Room sensor Temperature | 0...10V | Without display

-30 up to +70 °C
Screw terminals

Technical specifications

Connection: Screw terminals 0.2 mm² to 1.5 mm² (AWG 26 to 16)
Response time temperature
> 12 s
Output signal
0...10V
Max. output current 2mA
Operating voltage
15...24 V AC/DC
Designation
Temperature sensor;
Display
Without display
Operating temperature
-30...+70 °C
Housings
Plastic housing
71 x 71 x 27 mm
Accuracy
±0.2 K (0...90 °C)
±0.5 K (-40...+125 °C)
"Measurement range, temperature"
-40...+125 °C.
Scaling adjustable via DIP switches
Measured parameter
Temperature
Sensor
Digital humidity/temperature sensor
Temperature drift of the measurement electronics
±0.002% / K referring to 23 °C.
Environmental data
RoHS and REACH compliant

Product type: Room sensor

Temperature reading range (min.): -30 °C

Temperature reading range (max.): +70 °C

Dim: (L x W x H) 71 x 71 x 27 mm

Connector: Screw terminals

Temperature reading range: -30 up to +70 °C

Temperature accuracy: ±0.2 °C

Width: 71 mm

Height: 27 mm

Length: 71 mm

Documents & Downloads

Datasheet

Datasheet 3089233 B + B Thermo-Technik 0551 1100 Room sensor -30 up to +70 °C

User & Safety Instructions

User & Safety Instructions 3089233 B + B Thermo-Technik 0551 1100 Room sensor -30 up to +70 °C

Description

High quality and precise sensor with integrated transducer in the WALL design for building management or industrial applications. Measuring variables: Temperature, humidity Optionally with display output signal 0-10V or 4-20mA
