B + B Thermo-Technik 0625 0516-100 Probe (contact) -10 up to +105 °C Sensor type Pt100
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Highlights & Details
Probe 1xPt100/B/2
- Sensor type Pt100
- -10 up to +105 °C
- Open end cable
Technical specifications
- Connection cable 2 x 0.25 mm² with PVC insulation up to 105°C
- Accuracy class B.
- Product type
Probe (contact)
- Sensor type
Pt100
- Temperature reading range (min.)
-10 °C
- Temperature reading range (max.)
+105 °C
- Dim
(Ø x L) 15 mm x 2020 mm
Manufacturer's standards (no certificate)
- Connector
Open end cable
- Weight
200 g
- Temperature reading range
-10 up to +105 °C
- Length
2020 mm
- (Ø)
15 mm
Documents & Downloads
Datasheet
Datasheet 125033 B + B Thermo-Technik 0625 0516-100 Probe (contact) -10 up to +105 °C Sensor type Pt100
Datasheet 125033 B + B Thermo-Technik 0625 0516-100 Probe (contact) -10 up to +105 °C Sensor type Pt100
User & Safety Instructions
User & Safety Instructions 125033 B + B Thermo-Technik 0625 0516-100 Probe (contact) -10 up to +105 °C Sensor type Pt100
Description

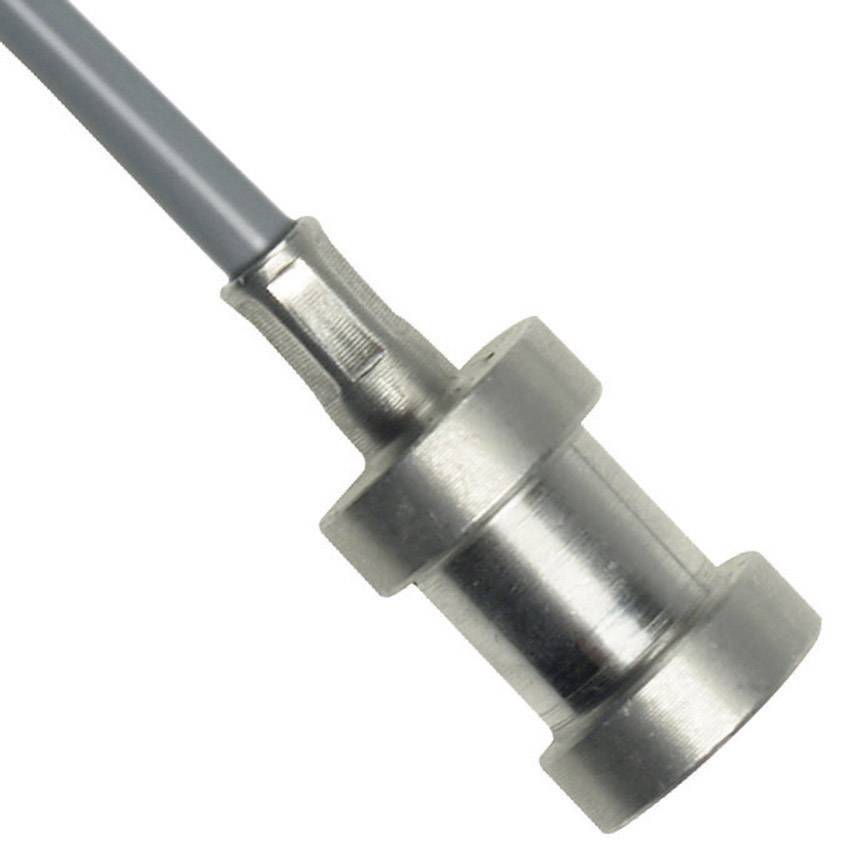

The Piping sensor is used for cost-effective measurement of temperature on pipes up to diameter of 100 mm. With the included clamping chain, the contact sensor on pipes and can be fixed. The temperature is recorded with the bent contact surface at the bottom of the sensor.
This text is machine translated.
This text is machine translated.
Features
- Protection class IP65
- Aluminum casing.
Hints
Type 0625 0516-100 replaces version 0629C0516-12.
