Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1191-012 0 bar up to 100 bar ISO 4400 square connector
Brand: B + B Thermo-Technik
SKU: 3089506
Availability: BackOrder

Black pressure transmitter sensor with angled electrical connector and threaded metal fitting, shown isolated on a white background.

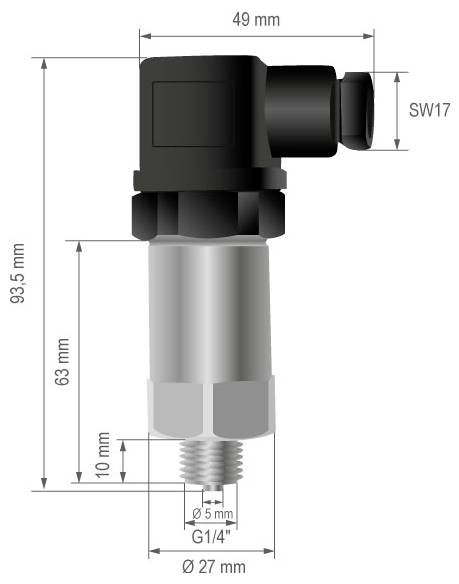

Technical drawing of a right-angle fitting with dimensions: 93.5 mm tall, 49 mm wide, G1/4 threaded base, 27 mm diameter, SW17 connection, and 5 mm thread detail.

1/2

Image similar

Product type

Pressure transducer

Connector

ISO 4400 square connector

Model

Relative pressure

Pressure reading range (max.)

100 bar

Max. operating voltage

36 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with DIN-Square connector

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, 0…10 V, burst pressure, 300 bar, designation, Pressure transmitter stainless steel, pressure measuring type, relative pressure, operating temperature, -20...+80 °C, Electrical connection, 4-pin industrial plug, DIN 43650, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, pressure measuring range, 0...100 bar, process connection, G1/4", residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, power supply, 12...36 V DC/ 5 mA, temperature coefficient, TCO < ±0.015 % FS/K; TCG < ±0.010 % FS/K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell

Product type: Pressure transducer

Type: 0550 1191-012

Connector: ISO 4400 square connector

Model: Relative pressure

Outputs: Voltage (analogue)

Output signal (min.): 0 V

Output signal (max.): 10 V

Accuracy: 0.4 %

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 100 bar

Pressure reading range: 0 bar up to 100 bar

Min. operating voltage: 12 V DC

Max. operating voltage: 36 V DC

Operating voltage: 12 - 36 V DC

Operating current: 5 mA

Burst load: 300 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3089506 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1191-012 0 bar up to 100 bar ISO 4400 square connector

User & Safety Instructions

User & Safety Instructions 3089506 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1191-012 0 bar up to 100 bar ISO 4400 square connector

Description

The pressure sensors with Hirschmann plugs are Ideal for measuring static and dynamic relative pressures in liquids or gases.

This text is machine translated.

Description

The pressure sensors with Hirschmann plugs are Ideal for measuring static and dynamic relative pressures in liquids or gases.
