Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-006 0 bar up to 6 bar ISO 4400 square connector
Brand: B + B Thermo-Technik
SKU: 3089310
Availability: BackOrder

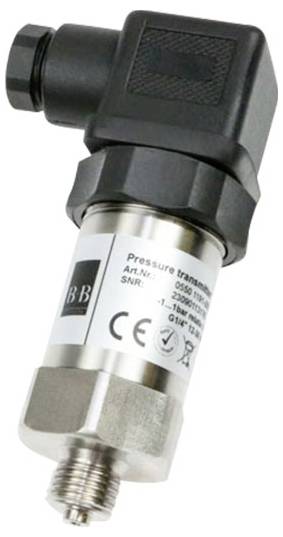

Industrial pressure transducer with threaded metal sensor body and angled black electrical connector, shown on white background.

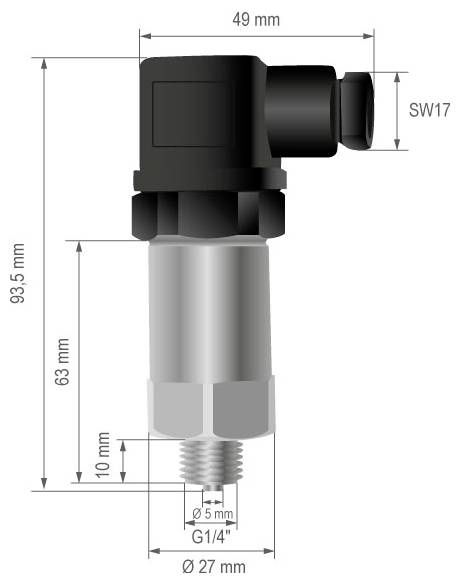

Technical drawing of a right-angle fitting with dimensions labeled: 93.5 mm tall, 49 mm wide, G1/4 thread, 27 mm diameter, SW17 fitting size.<br>

1/2

Image similar

Product type

Pressure transducer

Connector

ISO 4400 square connector

Model

Relative pressure

Pressure reading range (max.)

6 bar

Max. operating voltage

24 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with DIN-Square connector

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, 4...20 mA, burst pressure, 18 bar, designation, Pressure transmitter stainless steel, pressure measuring type, relative pressure, operating temperature, -20...+80 °C, Electrical connection, 4-pin industrial plug, DIN 43650, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, pressure measuring range, 0...6 bar, process connection, G1/4", residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, power supply, 14...24 V DC, temperature coefficient, TCO < ±0.015 % FS/K ; TCG < ±0.010 % FS/K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell, Allowable Burden, Ra[?]<(UV[volts]-10V) / 0.02 A (with output 4…20 mA)

Product type: Pressure transducer

Type: 0550 1291-006

Connector: ISO 4400 square connector

Model: Relative pressure

Outputs: Current (analogue)

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 6 bar

Pressure reading range: 0 bar up to 6 bar

Min. operating voltage: 14 V DC

Max. operating voltage: 24 V DC

Operating voltage: 14 - 24 V DC

Burst load: 18 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Variants(All information include VAT, plus shipping costs)

Pressure reading range (max.)

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-006 0 bar up to 6 bar ISO 4400 square connector

Item no:3089310

Available soon

Conrad Electronic

This article

6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-001 -1 bar up to 1 bar ISO 4400 square connector

Item no:3089306

Available soon

Conrad Electronic

1 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-003 0 bar up to 1.6 bar ISO 4400 square connector

Item no:3089430

Fast track dispatch on Thu 29 Oct

8 Piece(s)Conrad Electronic

1.6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-004 0 bar up to 2.5 bar ISO 4400 square connector Piece

Item no:3089291

Available soon

Conrad Electronic

2.5 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-005 0 bar up to 4 bar ISO 4400 square connector

Item no:3089314

Available soon

Conrad Electronic

4 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-007 0 bar up to 10 bar ISO 4400 square connector

Item no:3089515

Available soon

Conrad Electronic

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-008 0 bar up to 16 bar ISO 4400 square connector

Item no:3089511

Available soon

Conrad Electronic

16 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-002 0 bar up to 1 bar ISO 4400 square connector

Item no:3089470

Unavailable

Conrad Electronic

1 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-009 0 bar up to 25 bar ISO 4400 square connector

Item no:3089317

Unavailable

Conrad Electronic

25 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-010 0 bar up to 40 bar ISO 4400 square connector Piece

Item no:3089381

Unavailable

Conrad Electronic

40 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Documents & Downloads

Datasheet

Datasheet 3089310 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-006 0 bar up to 6 bar ISO 4400 square connector

User & Safety Instructions

User & Safety Instructions 3089310 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-006 0 bar up to 6 bar ISO 4400 square connector

Description

The pressure sensors with Hirschmann plugs are Ideal for measuring static and dynamic relative pressures in liquids or gases.

This text is machine translated.

Description

The pressure sensors with Hirschmann plugs are Ideal for measuring static and dynamic relative pressures in liquids or gases.
