Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-003 0 bar up to 1.6 bar ISO 4400 square connector Piece
Brand: B + B Thermo-Technik
SKU: 3089370
Availability: BackOrder

Pressure transmitter sensor with black angled connector and threaded metal probe<br>

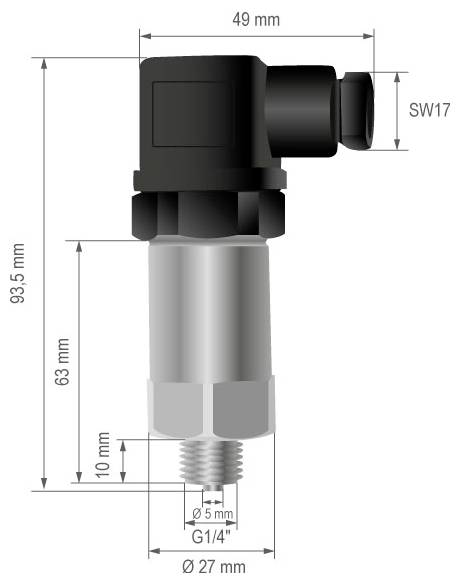

Technical drawing of a right-angle threaded fitting with dimensions labeled 93.5 mm tall, 49 mm long, 27 mm diameter, G1/4 thread, and SW17 size.

1/2

Image similar

Packaging type

Piece

Product type

Pressure transducer

Connector

ISO 4400 square connector

Model

Relative pressure

Pressure reading range (max.)

1.6 bar

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with DIN-Square connector

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, digital, I²C, burst pressure, 5 bar, name, stainless steel pressure transmitter, pressure measuring type, relative pressure, application temperature, -20...+80 °C, electrical connection, 4-pin industrial plug, DIN 43650, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, pressure measurement range, 0...1.6 bar, Process connection, G1/4", residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, power supply, 3.0...5.3 V DC / 5mA, temperature coefficient, TCO << ±0.015 % FS / K; TCG ±0.010 % FS / K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell, Allowable Burden, Ra[?]<(UV[volts]-10V) / 0.02 A (with output 4…20 mA)

Packaging type: Piece

Product type: Pressure transducer

Type: 0550 1391-003

Connector: ISO 4400 square connector

Model: Relative pressure

Outputs: I2C

Interfaces: I²C

Accuracy: 0.4 %

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 1.6 bar

Pressure reading range: 0 bar up to 1.6 bar

Min. operating voltage: 3 V DC

Max. operating voltage: 5.30 V DC

Operating voltage: 3 - 5.30 V DC

Operating current: 5 mA

Burst load: 5 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Variants(All information include VAT, plus shipping costs)

Pressure reading range (max.)

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-003 0 bar up to 1.6 bar ISO 4400 square connector Piece

Item no:3089370

Available soon

Conrad Electronic

This article

1.6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

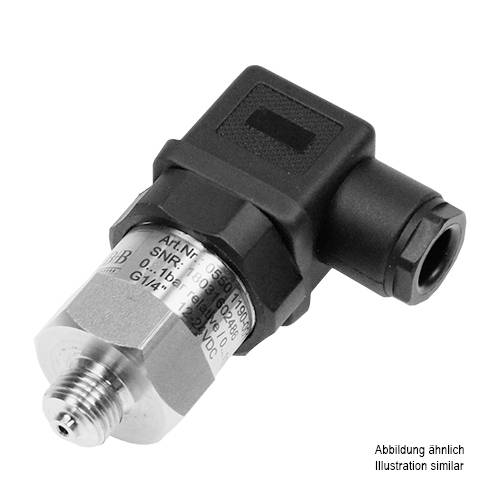

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-006 0 bar up to 6 bar ISO 4400 square connector

Item no:3089362

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-001 -1 bar up to 1 bar ISO 4400 square connector Piece

Item no:3089451

Unavailable

Conrad Electronic

1 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-002 0 bar up to 1 bar ISO 4400 square connector

Item no:3089285

Unavailable

Conrad Electronic

1 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-004 0 bar up to 2.5 bar ISO 4400 square connector Piece

Item no:3089373

Unavailable

Conrad Electronic

2.5 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-005 0 bar up to 4 bar ISO 4400 square connector Piece

Item no:3089281

Unavailable

Conrad Electronic

4 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-007 0 bar up to 10 bar ISO 4400 square connector

Item no:3089398

Unavailable

Conrad Electronic

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-008 0 bar up to 16 bar ISO 4400 square connector

Item no:3089394

Unavailable

Conrad Electronic

16 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-009 0 bar up to 25 bar ISO 4400 square connector

Item no:3089523

Unavailable

Conrad Electronic

25 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-010 0 bar up to 40 bar ISO 4400 square connector Piece

Item no:3089446

Unavailable

Conrad Electronic

40 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Documents & Downloads

Datasheet

Datasheet 3089370 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-003 0 bar up to 1.6 bar ISO 4400 square connector Piece

User & Safety Instructions

User & Safety Instructions 3089370 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1391-003 0 bar up to 1.6 bar ISO 4400 square connector Piece

Description

These pressure transmitters with digital output are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.

This text is machine translated.

Description

These pressure transmitters with digital output are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.

This text is machine translated.
