Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2190-004 0 bar up to 10 bar M12 (4-pin)
Brand: B + B Thermo-Technik
SKU: 3089384
Availability: BackOrder

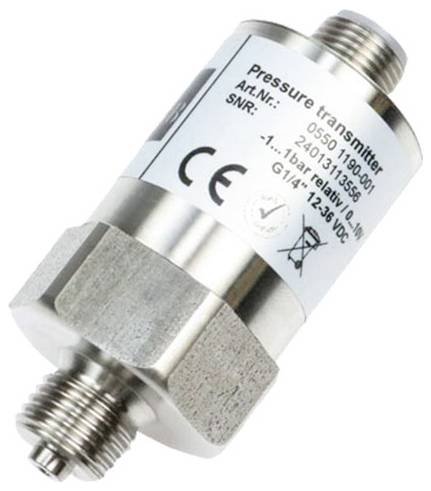

Close-up of a metal pressure transmitter sensor with threaded fittings and a label showing pressure range and CE marking.

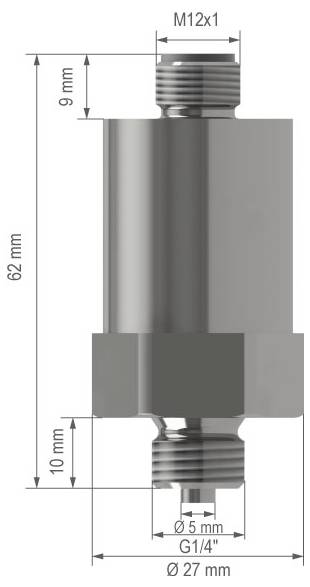

Technical drawing of a cylindrical connector with threaded ends, labeled M12x1 and G1/4, showing dimensions 62 mm tall and 27 mm wide.<br>

1/2

Image similar

Product type

Pressure transducer

Connector

M12 (4-pin)

Model

Absolute pressure

Pressure reading range (max.)

10 bar

Max. operating voltage

36 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 179.99 / piece)

€ 179.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with M12-Socket connector

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, 0…10 V, burst pressure, 30 bar, designation, Pressure transmitter stainless steel, pressure measuring mode, absolute pressure, operating temperature, -20...+80 °C, Electrical connection, M12 socket connector, EMC interference emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, measuring range pressure, 0...10 bar, process connection, G1/4", Residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, Power supply, 12...36 V DC/ 5 mA, temperature coefficient, TCO < ±0.015 % FS / K ; TCG < ±0.010 % FS / K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell

Product type: Pressure transducer

Type: 0550 2190-004

Connector: M12 (4-pin)

Model: Absolute pressure

Outputs: Voltage (analogue)

Output signal (min.): 0 V

Output signal (max.): 10 V

Interfaces: M12 socket

Accuracy: 0.4 %

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 10 bar

Pressure reading range: 0 bar up to 10 bar

Min. operating voltage: 12 V DC

Max. operating voltage: 36 V DC

Operating voltage: 12 - 36 V DC

Operating current: 5 mA

Burst load: 30 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3089384 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2190-004 0 bar up to 10 bar M12 (4-pin)

User & Safety Instructions

User & Safety Instructions 3089384 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2190-004 0 bar up to 10 bar M12 (4-pin)

Description

The pressure sensors with M12 connection are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.
