Name: Barthelme 51540528 51540528 LED strip open cable ends 24 V 5 m Warm white 1 pc(s)
Brand: Barthelme
SKU: 1969846
Availability: BackOrder

Highlights & Details

LED STRIP BASIC TOP VIEW IP67

140 LED per meter
IP67 protection against water and dust
Cast and therefore no profile is necessary
Life: 30 000 hours
Power 19.2 W/m
Color Reproduction CRI 90
Dimmable
Can be cut every 5 cm

Technical specifications

Product type: LED strip

Connectors (LED strips): open cable ends

LED strip features: Dimmable
Flexible
Can be shortened
Self-adhesive

Colour: Warm white

Total luminous flux: 1570 lm

Use: Inside/outside

: 19.2 W/m

Colour rendering index: 90 Ra

Radiation angle: 120°

Luminous flux (Φ): 1570 lm

Luminous flux (Φ) per unit: 15.7 lm

Operating voltage: 24 V

Connection: Open cable ends

Operating current: 4 A

Dim: (L x W x H) 5 m x 13 mm x 5 mm

Operational current per unit: 40 mA

Power consumption: 96 W

Power consumption per unit: 0.96 W

LEDs: 700 pc(s)

LED number per unit: 7

Width: 13 mm

Height: 5 mm

Length: 5 m

Unit length: 50 mm

: IP67

Min. temperature: -25 °C

Max. temperature: +45 °C

Type: 51540528

: n.rel.

: Yes

: 2.24 lm

RoHS-compliant: Yes

Protection class: IP67

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1969846 Barthelme 51540528 51540528 LED strip open cable ends 24 V 5 m Warm white 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1969846 Barthelme 51540528 51540528 LED strip open cable ends 24 V 5 m Warm white 1 pc(s)

Description

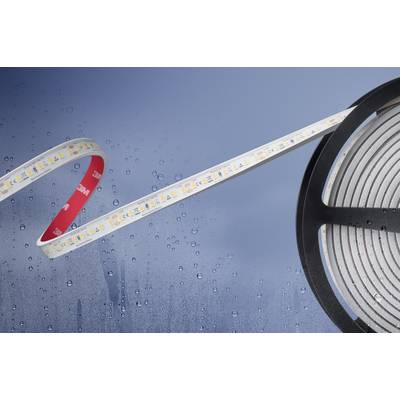

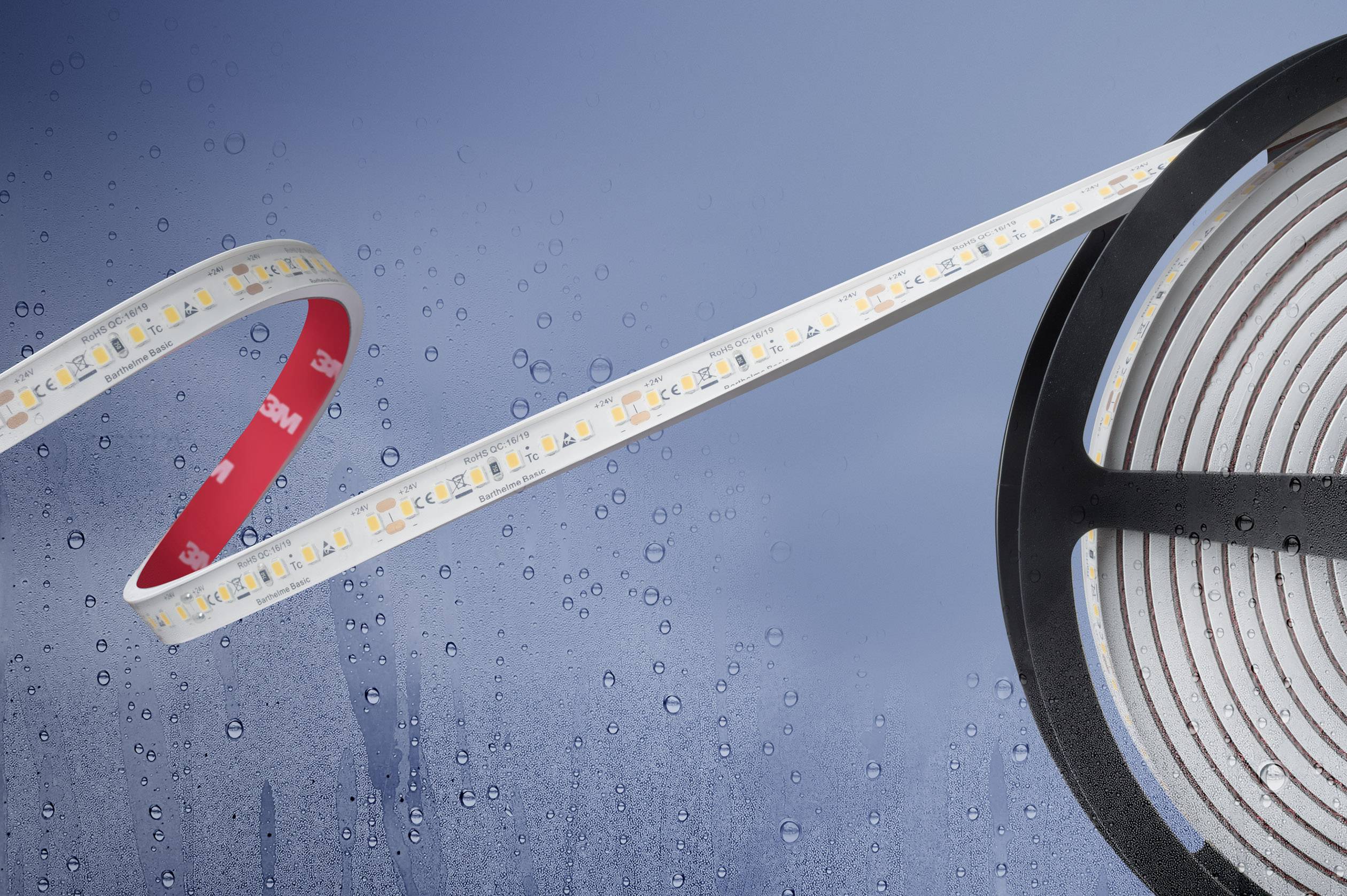

The fully potted, flexible LED strips of the LED STRIP BASIC TOP VIEW IP67-series are against water and dust-protected. They are ideal for various areas of use in indoor and outdoor areas, e.g. in the bathroom or in the garden. The special design allows the formation of convex or concave shapes.

This text is machine translated.

Hints

Smallest unit (50 mm) with 7 LEDs, divisible at the marked places. Can be separated into 100 units, soldering pads every 50 mm.

Description

The fully potted, flexible LED strips of the LED STRIP BASIC TOP VIEW IP67-series are against water and dust-protected. They are ideal for various areas of use in indoor and outdoor areas, e.g. in the bathroom or in the garden. The special design allows the formation of convex or concave shapes.

This text is machine translated.
