Barthelme 51540628 51540628 LED strip open cable ends 24 V 5 m Warm white 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
open cable ends
LED strip features
Dimmable
Flexible
Can be shortened
Colour
Warm white
Total luminous flux
317 lm
Datasheet (PDF)
Number
Total (1 m = € 28.57)
€ 142.85
plus VAT.
14-day return policy included
Highlights & Details
LED STRIP BASIC SIDE-VIEW IP66
- Lateral Lichtaustritsflache
- 140 LED per meter
- IP66 protection against water and dust
- Cast and therefore no profile is necessary
- Life: 30 000 hours
- Power 14.4 W/m
- Color Reproduction CRI 90
- Dimmable
- Can be cut every 5 cm
Technical specifications
- Product type
LED strip
- Connectors (LED strips)
open cable ends
- LED strip features
Dimmable
Flexible
Can be shortened
- Colour
Warm white
- Total luminous flux
317 lm
- Use
Inside/outside
14.4 W/m
- Colour rendering index
90 Ra
- Radiation angle
120°
- Luminous flux (Φ) per unit
3.17 lm
- Operating voltage
24 V
- Connection
Open cable ends
- Operating current
3 A
- Dim
(L x W x H) 5 m x 12 mm x 6.5 mm
- Operational current per unit
30 mA
- Power consumption
72 W
- Power consumption per unit
0.72 W
- LEDs
700 pc(s)
- LED number per unit
7
- Width
12 mm
- Height
6.5 mm
- Length
5 m
- Unit length
50 mm
IP66
- Min. temperature
-25 °C
- Max. temperature
+45 °C
- Type
51540628
n.rel.
Yes
0.45 lm
- RoHS-compliant
Yes
- Protection class
IP66
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1969849 Barthelme 51540628 51540628 LED strip open cable ends 24 V 5 m Warm white 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1969849 Barthelme 51540628 51540628 LED strip open cable ends 24 V 5 m Warm white 1 pc(s)
Description

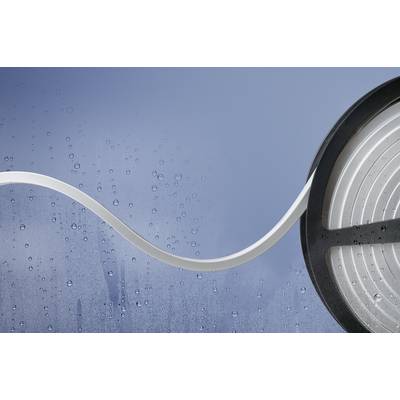

The fully encapsulated, flexible LED strips of the LED STRIP BASIC SIDE VIEW IP66 series are protected from water and dust. They are ideal for a wide range of indoor and outdoor applications, e.g. in the bathroom or in the garden. The special design enables the reproduction of convex or concave shapes.
This text is machine translated.
This text is machine translated.
Hints
Smallest unit (50 mm) with 7 LEDs, divisible at the marked places. Can be separated into 100 units, soldering pads every 50 mm.
