BERNSTEIN Tools for Electronics 2-122 ESD Scraper set 0.5 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
14-day return policy included
Highlights & Details

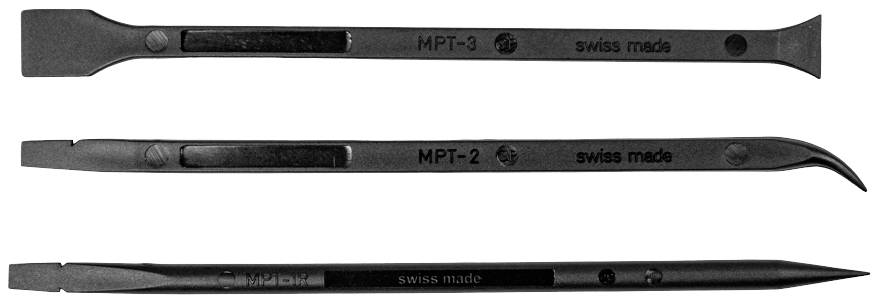

ESD lever tool normally closed contact spatula PVDF plastic 3 pcs
- Versatile tools and auxiliaries
- For application or removal of chemical substances
- When soldering, bonding, smoothing, stirring, opening or scraping
- Hard, stable, scratch-proof, heat and acid resistant

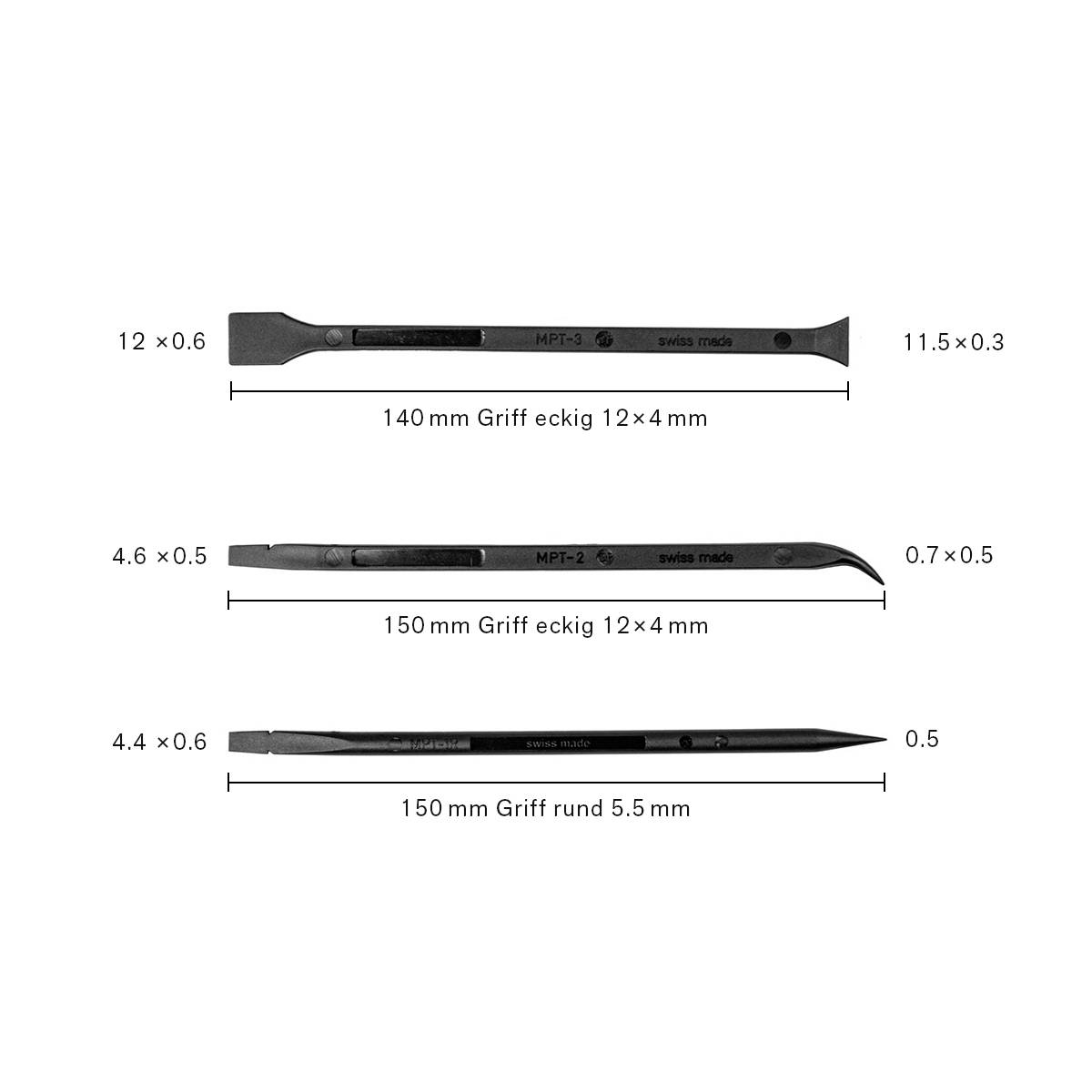

- Shape flat-wide from 4.4 to 12.0 mm
- Pointed from 0.5 to 0.7 mm
- ESD-safe material
- Material PVDF Polyvinylidene fluoride
Technical specifications
- Product type
Scraper set
- Tip size
0.5 mm
- Material
PEEK
- Material properties
acid-resistant
- Material (handle)
PVDF
- Width
4.4 mm
- Content
1 Set
- Tip shape
Pointed
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3251034 BERNSTEIN Tools for Electronics 2-122 ESD Scraper set 0.5 mm
Description
Tools that can be used on both sides as spatula, scrapper, opener, lifting or lever tool for electronics, for example while soldering (lead-free soldering work). Can be used for removing soldering covers, rubber latex, adhesive coatings or for application of adhesives. Often used when dosing chemical components or as a stirring bar for the preparation of adhesives and solutions. Other uses for small parts as a positioning assistant during assembly work in the technical area up to cleaning of 3D printed parts.
This text is machine translated.
This text is machine translated.
Hints
PVDF Polyvinylidene fluoride carbon-fiber reinforced. General information PVDF: Excellent mechanical strength and toughness, smooth surface, high abrasion resistance, heat stabilized and heat resistance (continuous use temperature up to 150°C). Resistant to UV and core radiation (sterilization). Excellent chemical resistance to most aggressive substances, mineral and organic acids, hydrocarbons, alcohols, and halogenated solvents. Resistance to hydrofluoric acid (40% concentration, 90°C), nitric acid (50% concentration, 90°C), hydrochloric acid (36% concentration, 90°C). High purity, clean room and medical approved, low extraction value. ESD-safe material (avoiding powder Pull, spark formation, ignition sources). Typical applications are the handling of components that are sensitive to scratches and contamination, cleaning and etching processes.
