binder 99 9136 60 12 Micro DIN connector Sleeve socket Total number of pins: 12 1 pc(s)

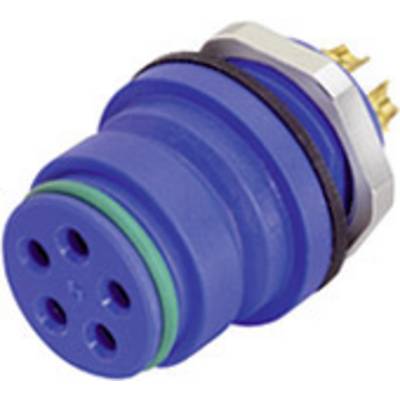

Blue electrical connector with multiple round connection points, surrounded by a green ring. Suitable for industrial applications.
Technical drawing of an M12 connector with detailed dimensions and measurements in millimetres.
Technical drawing of a circle with a diameter of 10 mm, which is bisected centrally. Arrows point to the upper line.

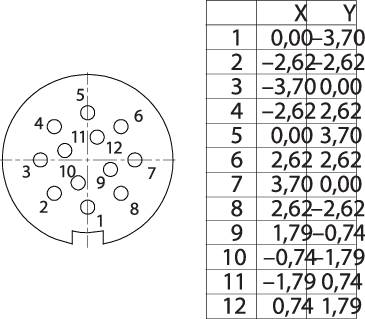

Technical Drawing of a Circular Connector with Numbered Positions, Supplemented by a Table of X and Y Coordinates.
Technical drawing of a mechanical component with dimensions. The component has cylindrical forms and varying cross-sections.
Technical drawing of a circle with a diameter of 10.5.
1/6
Image similar
Product type
Micro DIN connector
Connector type
Sleeve socket
Total no. of pins
12
Connection
Solder bucket
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
17 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 16.99 / piece)
€ 19.99
-15 %
€ 16.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

99 9136 60 12

Product type

Micro DIN connector

Connector type

Sleeve socket

Total no. of pins

12

Connection

Solder bucket

Soldering

Factory colour

Blue

Content

1 pc(s)

Max. temperature

+85 °C

Nominal current

2 A

Min. temperature

-25 °C

Nominal current - rounded value

2 A

Leading contact (PE)

No

Nominal voltage

60 V

Contact material

Bronze, gold plated

Case material

PA (UL 94 V-0)

24

Connection angle

180°

Manufacturer part #

99 9136 60 12

Number of pins

12

max. cross section

0.25 mm²

Cross-section range

0.25 mm² (max)

IP67

Documents & Downloads

Datasheet

Datasheet 1665923 binder 99 9136 60 12 Micro DIN connector Sleeve socket Total number of pins: 12 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1665923 binder 99 9136 60 12 Micro DIN connector Sleeve socket Total number of pins: 12 1 pc(s)
