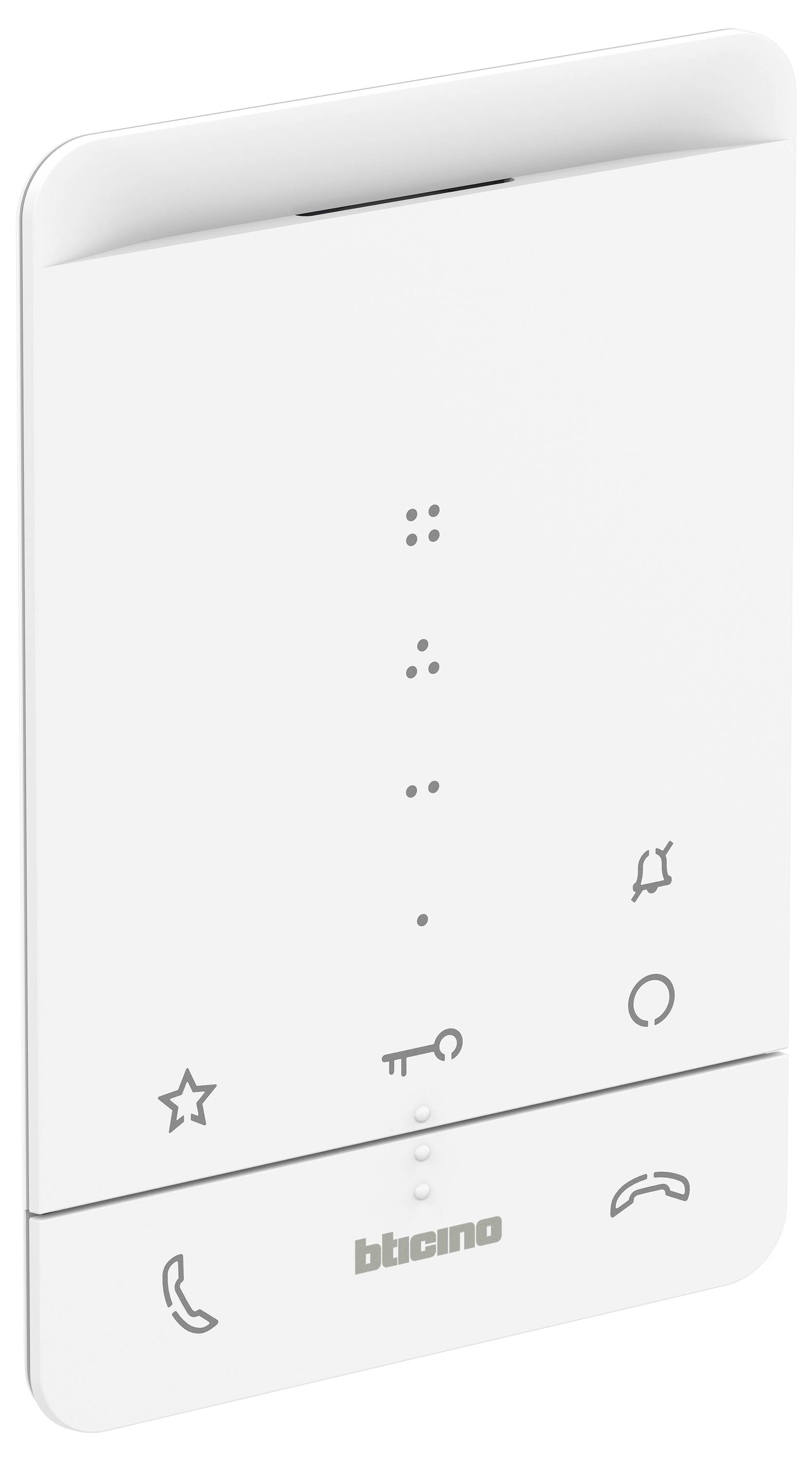

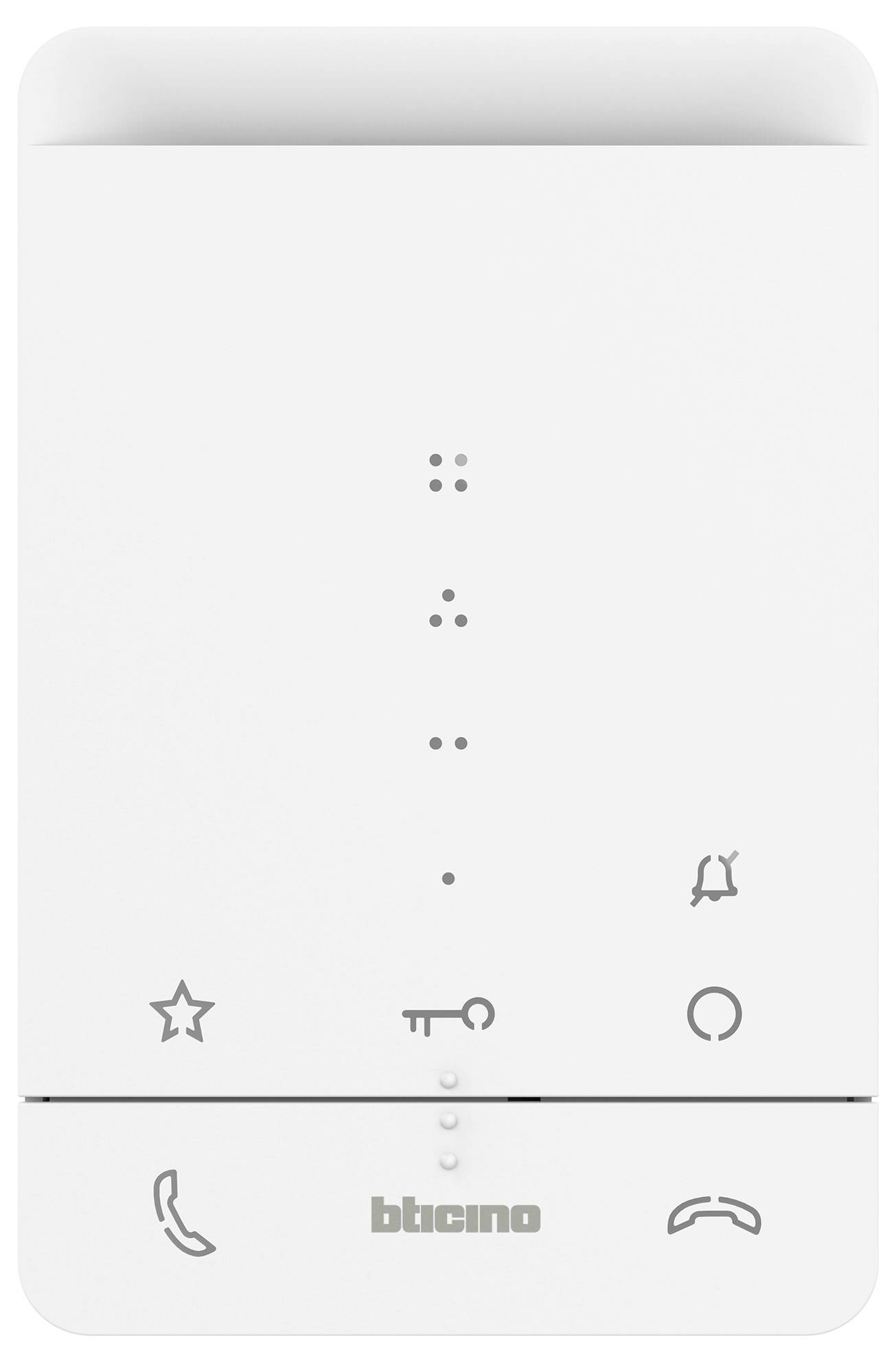

Bticino CLASSE100 A16E Indoor audio interface Two-wire Indoor panel White
EAN:
Part number:
Item no:
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
Highlights & Details
Bticino, audio home station CLASSE 100 A16E
- Interior unit for 2-wire door entry systems with door mat function/physician circuit
- 3 Sensor buttons
- 4 free config. Buttons and 16 melodic ring tones
Technical specifications
- Product type
Indoor audio interface
- Component
Indoor panel
- Units
1
- Transfer type
Two-wire
- Leads
2
- Mounting type (interior)
Wall
- Factory colour
White
- Max. cable length
600 m
- Tunes
16
- Dimensions (built-in device)
102 × 155 × 18.5 mm
- Width
102 mm
- Height
155 mm
- Depth
18.5 mm
- Weight
0.2470
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3322667 Bticino CLASSE100 A16E Indoor audio interface Two-wire Indoor panel White
Description
Hörerloses audio household station CLASSE100 A16E2-wire bus system, free intercom, in addition to the two physical call buttons (accept and terminate call) it possesses 3 sensor buttons for: Opening door, switching on the staircase light (activator No.: 346210 is needed) and switching the door station on and off and via 4 freely configurable additional keys (e.g.:Intern speaking, additional door opener, etc.).
16 selectable melodies.
Including doctor circuit/door-mat function.
For door/floor calling with distinctive ringtones.
Volume of the call sound is adjusted using the control on the side.
LED-display for: Ringtone switch, door opener and connection status.
Wall mounting with supplied wall mount.
A table accessory (order no.: 344692) is available separately.
Connection for BUS, floor call and additional signal bells.
Dimensions B × H × T: 102 × 155 × 18.5 mm
This text is machine translated.
16 selectable melodies.
Including doctor circuit/door-mat function.
For door/floor calling with distinctive ringtones.
Volume of the call sound is adjusted using the control on the side.
LED-display for: Ringtone switch, door opener and connection status.
Wall mounting with supplied wall mount.
A table accessory (order no.: 344692) is available separately.
Connection for BUS, floor call and additional signal bells.
Dimensions B × H × T: 102 × 155 × 18.5 mm
This text is machine translated.
Features
- Handset-free audio home station/internal unit for 2-wire technology, suitable for wall or table mounting (table accessories available separately)
- The interior has next to the 3 sensor buttons for door OPEN, accept call, stairwell light ON (activator art. 346210) and door station to switch on/off, 2 calls and 4 free Wi-Fi. Keys
- Door automation (medical circuit): This function opens the door after a call is made from the door station, the CLASSE 100 A16E rings and the door opener is activated automatically
- Select from 16 melodic ring tones. A distinction is made between door and floor calls with distinctive ringtones by 2 different melodies, adjust the volume with the control dial
- Connection for BUS, floor call and auxiliary signal bell | Dimensions B × H × T: 102 × 155 × 18.5 mm
Scope of delivery
- Speech unit
- Quick guide
- Instructions for use
