Cable meter 4954679 Fluke Networks DSX2-8000QI INT Telecom, Networks
EAN:
Part number:
Item no:
Number
Total (€ 51,605.00 / piece)
€ 51,605.00
incl. VAT
14-day return policy included
Highlights & Details
2 GHz DSX2-8000 WLAN activated + CertiFiber Pro Quad (Multimode and Singlemode) OLTS Module (2) + FI-1000-KIT inspection camera
Technical specifications
- Power supply: Li-ion battery pack (7.2 V)
- Battery life: Approx. 8 hours
- Charging time: 4 hours (from 10% to 90%)
- Operating temperature: 0 °C to 45 °C
- Frequency range: Up to 2000 MHz (ANSI/TIA Level 2G / IEC Level VI Accuracy)
- Internal memory: Up to 5,000 CAT 8 measurements with plots
- Function (cable) - copper: Attenuation, open circuit, short circuit, wire map, length, delay/delay skew, DC loop resistance, resistance imbalance, return loss, NEXT, PS-NEXT, ACR-N, ACR-F, Alien Crosstalk (ANEXT); Fiber: Optical Attenuation (Tier 1 OLTS), Fiber Optic Length, End Face Check / Fiber Inspection
- Product type
Cable meter
- Function
Break
- Max. cable length
150 m
- Acoustic signal
Yes
- Display
LCD
- Optical display
Yes
- Test sockets
RJ45
LC
SC
USB
- Dim
(L x W x H) 66.7 x 133 x 279.4 mm
Manufacturer's standards (with certificate)
- Weight
1.28 kg
- Range
Telecom
Networks
- Features
Touchscreen
- Calibration service
Factory calibration (1 year validity)
- Reading category
CAT I
- Width
133 mm
- Height
279.4 mm
- Length
66.7 mm
- Type
DSX2-8000QI INT
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3841433 Cable meter 4954679 Fluke Networks DSX2-8000QI INT Telecom, Networks
Description
The Fluke Networks DSX2-8000QI INT VERVERVSIL™ is the complete solution for the acceptance and certification of modern networks. The system accelerates every step of the certification process and combines copper certification (up to CAT 8) and fiber damping and end-surface testing in one powerful platform. The projected touchscreen and intuitive ProJX™ management help prevent misconfigurations and monitor project progress in real time.
This text is machine translated.
This text is machine translated.
Features
- 2 GHz DSX-8000 CAT 8 CableAnalyzer, CertiFiber Pro Quad (multimode and singlemode) OLTS modules & inspection camera: WLAN activates Versiv2 main and remote device + (2) DSX CAT 8 copper modules + (2) quad OLTS modules + inspection camera

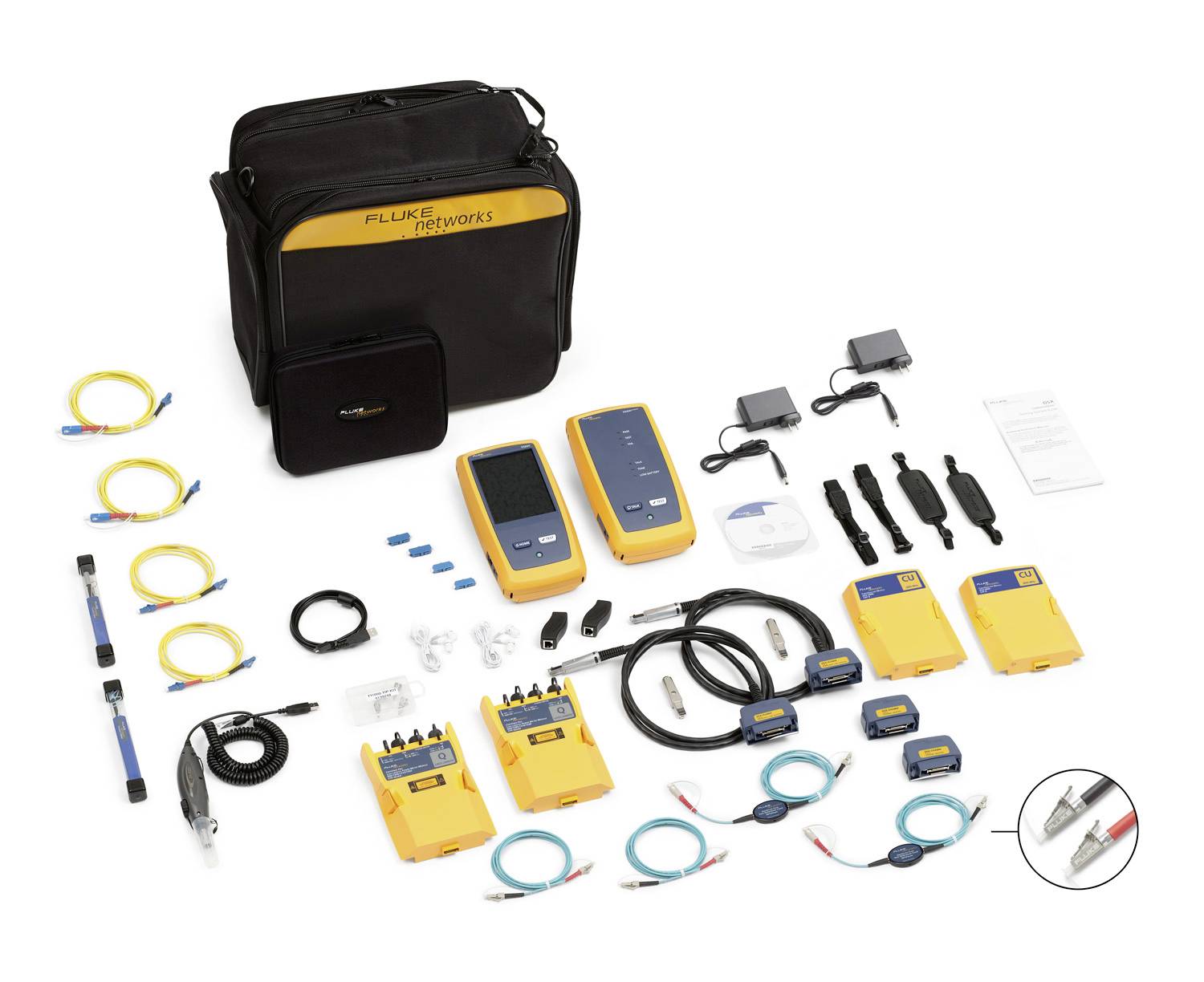

Scope of delivery
- Versiv2 mainframe & remote device,
- 2x DSX-8000 CableAnalyzer-Module
- 2x CertiFiber Quad OLTS modules
- 2x CAT 8 permanent link adapter
- 2x CAT 8-channel adapter
- USB inspection camera with spikes
- AxTalk Terminators
- Fibreglass cleaning kit
- SC/LC MM/SM reference cable sets
- 2x Headsets
- 2x carrying strap
- 2x mains adapters/chargers
- Carrying case
- Calibration certificate
- Quick guide
