VOLTCRAFT CT-20TDR Cable tester Suitable for Shielded/unshielded cable, CAT3, CAT4, CAT5, CAT5E, CAT 6, Coax
EAN:
Part number:
Item no:
Number
Total (€ 142.85 / piece)
€ 189.08
-24 %
€ 142.85
plus VAT.
Highlights & Details
LAN-cable tester CT-20 TDR
- Cable testing
- Length measurement
- Tone generator for localising cables
Technical specifications
- Measurement range for length measurement: 1 - 350 m
- Accuracy length measurement: ±5%
- Product type
Cable tester
- Max. cable length
350 m
- Optical display
Yes
- Dim
(L x W x H) 195 x 90 x 40 mm
- Width
90 mm
- Height
40 mm
- Length
195 mm
- Type
CT-20TDR
- Suitable for
Shielded/unshielded cable, CAT3, CAT4, CAT5, CAT5E, CAT 6, Coax
- Power supply (details)
9 V block battery
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 121946 VOLTCRAFT CT-20TDR Cable tester Suitable for Shielded/unshielded cable, CAT3, CAT4, CAT5, CAT5E, CAT 6, Coax
Conformity certificate
Conformity certificate 121946 VOLTCRAFT CT-20TDR Cable tester Suitable for Shielded/unshielded cable, CAT3, CAT4, CAT5, CAT5E, CAT 6, Coax
Warranty Terms
Warranty Terms 121946 VOLTCRAFT CT-20TDR Cable tester Suitable for Shielded/unshielded cable, CAT3, CAT4, CAT5, CAT5E, CAT 6, Coax
Description
The multi-function LAN cable tester makes it possible to check 2 - 8-pin cables and their shielding. There are 5 test modes to choose from: LAN mode, phone mode, coax mode, locate mode and length mode. Specific cables and number of cores can be selected in the individual modes. The test procedure is automatic and the result is displayed graphically and in plain text.
Features
- Illuminated dot matrix display
- Measurement of already laid cables with remote measuring connection possible
- Length and fault location of 1
- 350 m cable length
- For CAT3, CAT4, CAT5, CAT5E, CAT6 and coaxial cables screened/unscreened
- Input protected against overvoltage and transient bell signals.

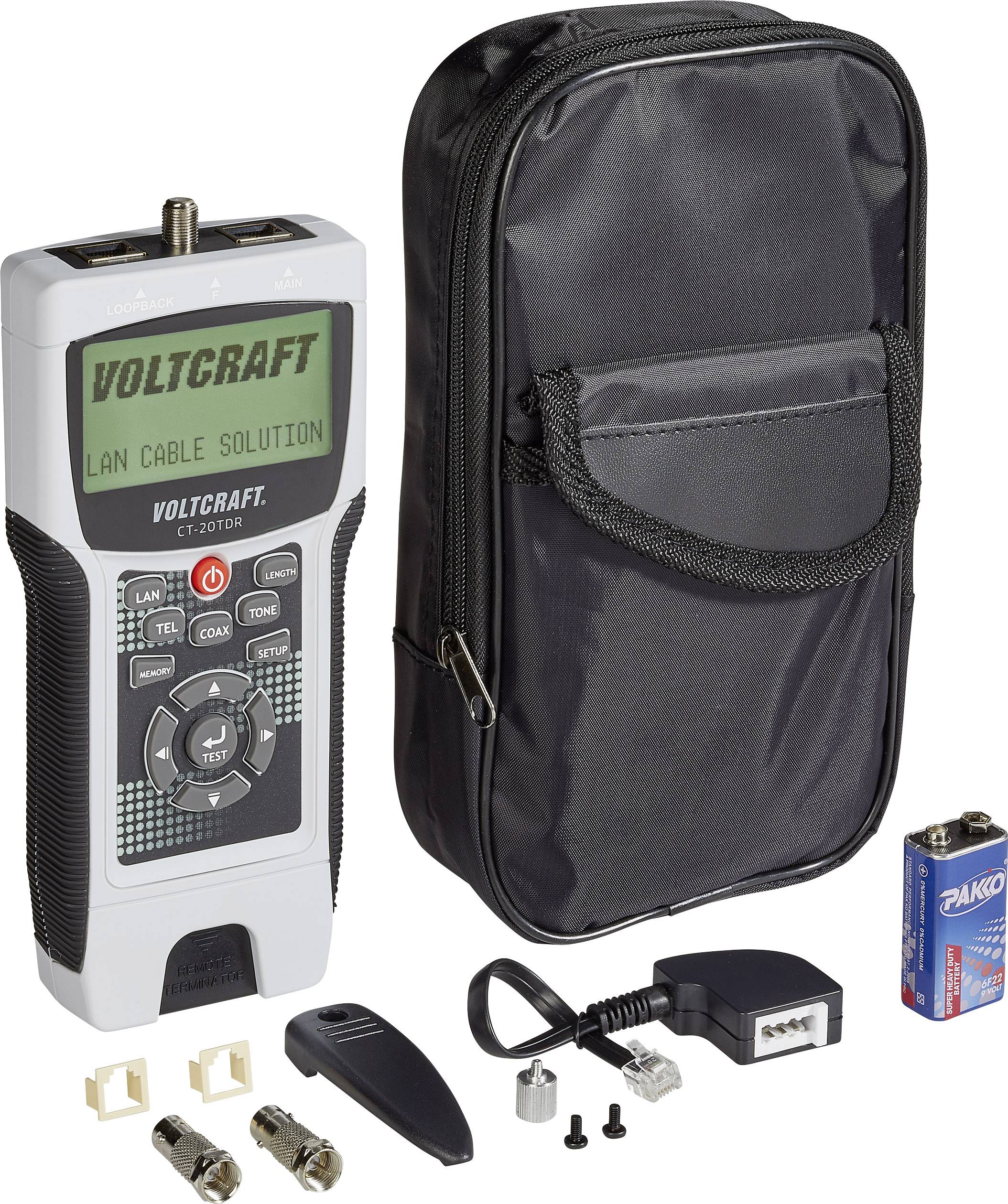

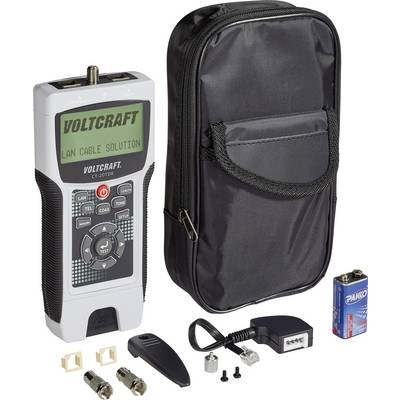

Scope of delivery
- Remote Measurement termination (ID1)
- 2 Adapters F/BNC
- 2 Western reducer inserts RJ45/RJ11
- Belt clip
- Soft case
- Battery
- User manual.
Hints
For localising cables, a separate receiver is necessary.
