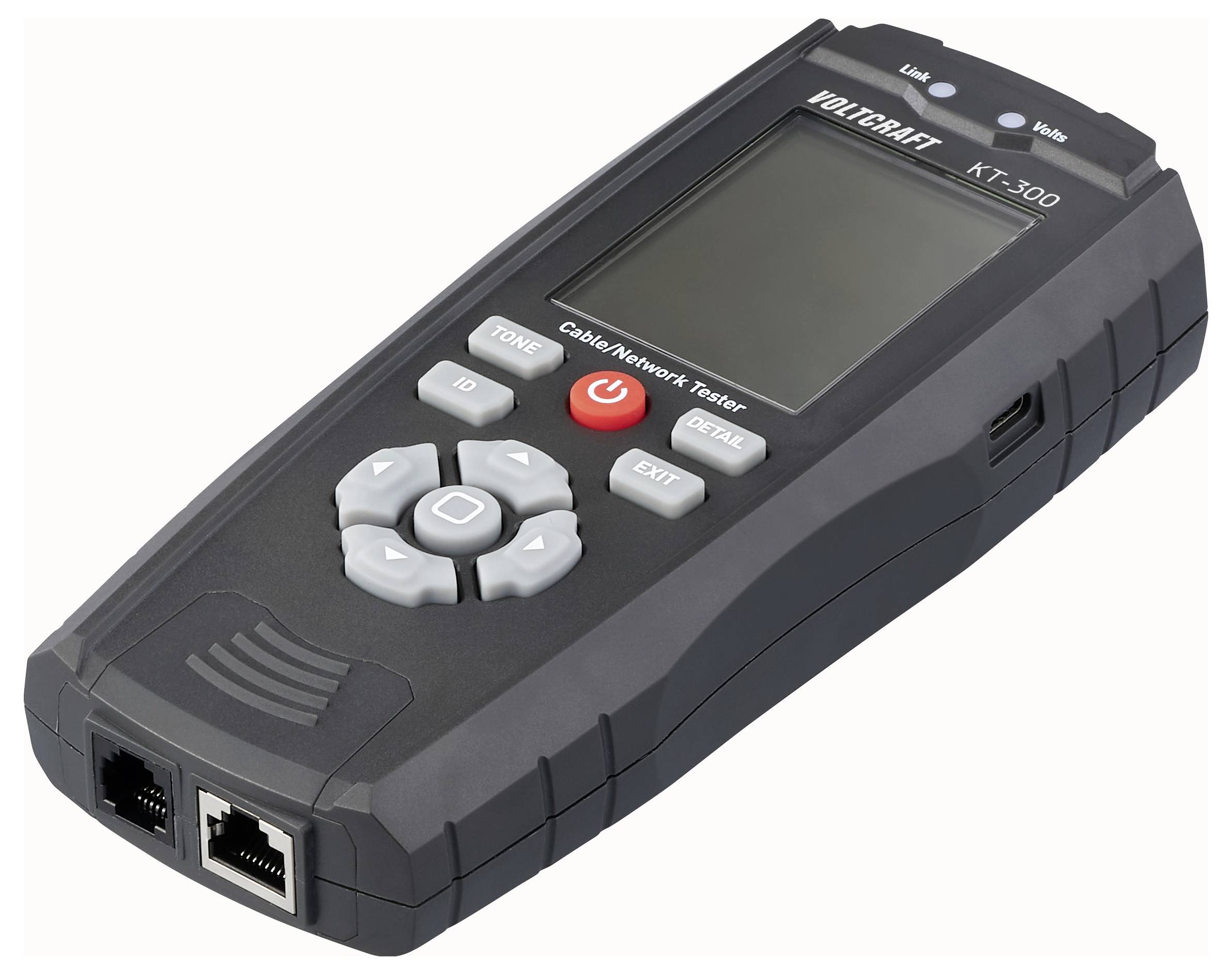

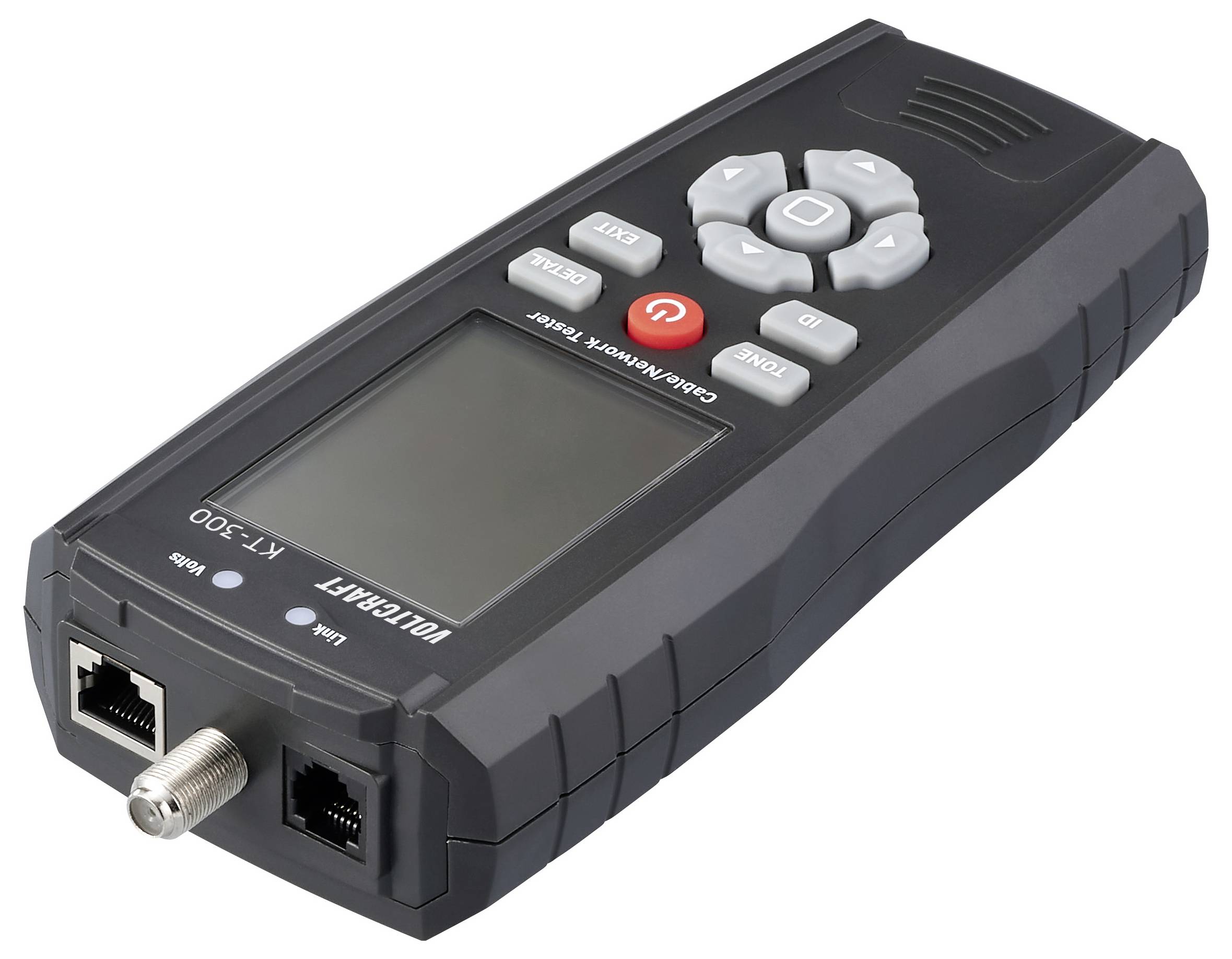

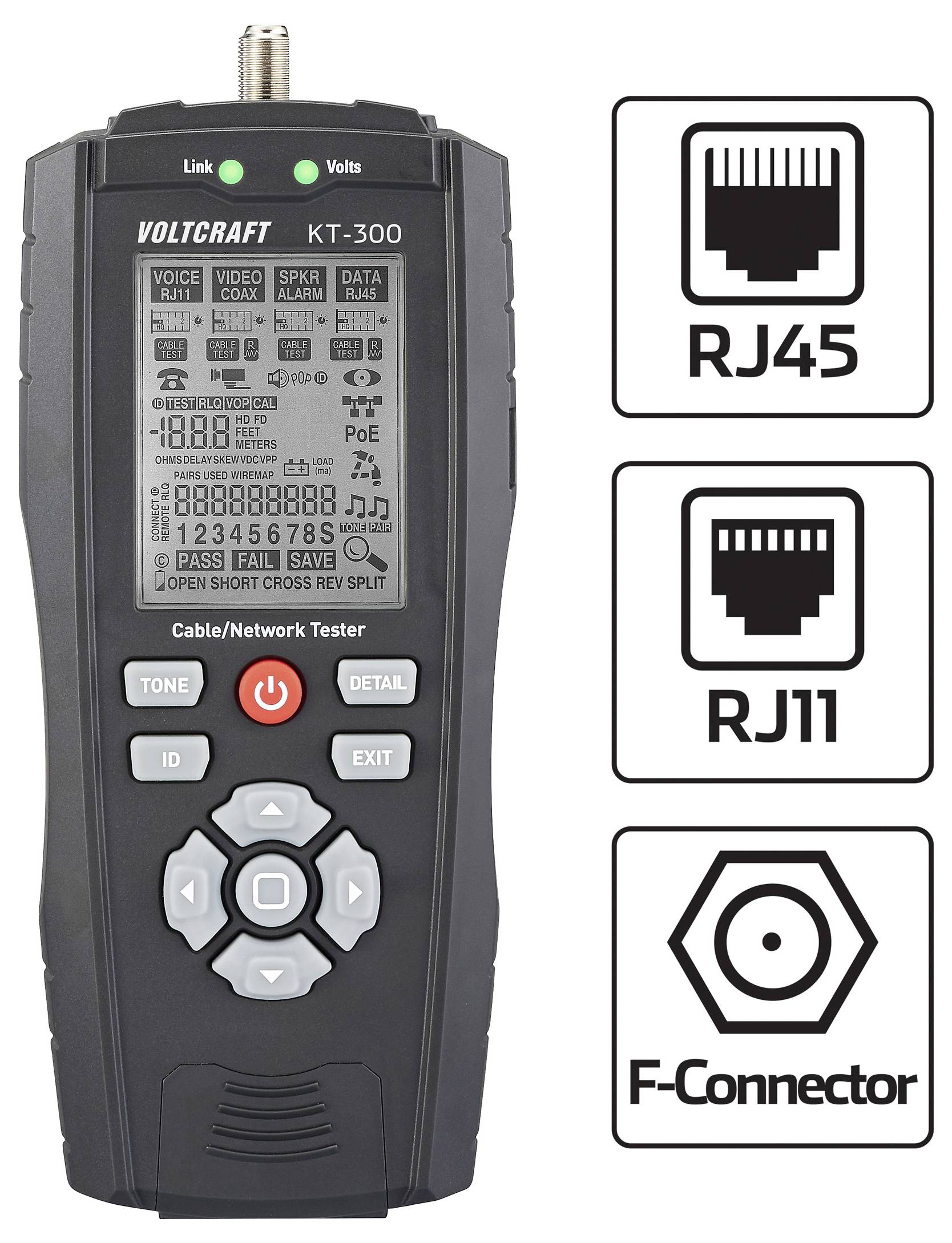

Cable tester VC-17497100 VOLTCRAFT KT-300 Telecom, Networks

Comprehensive cable analysis and TDR error locating

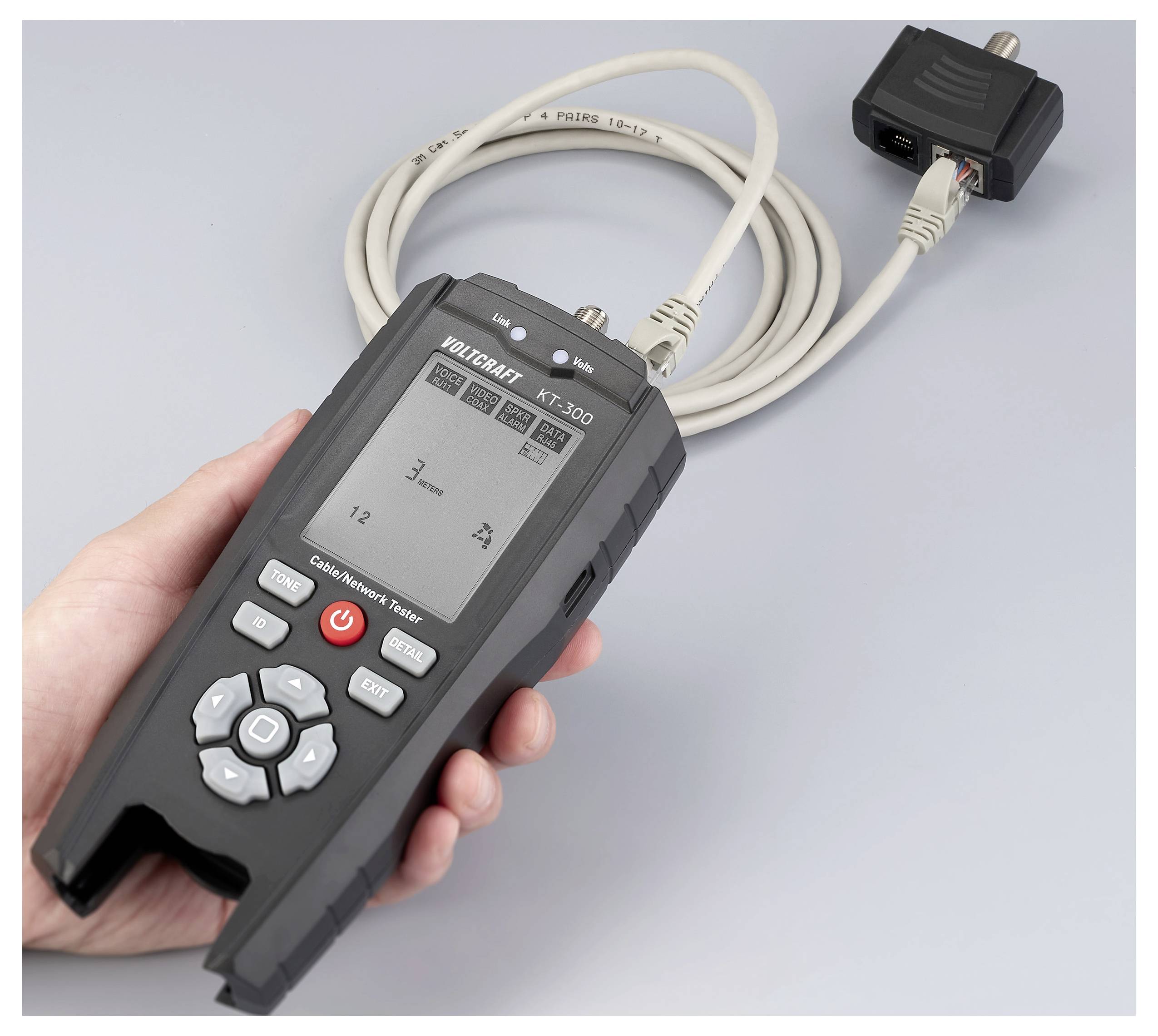

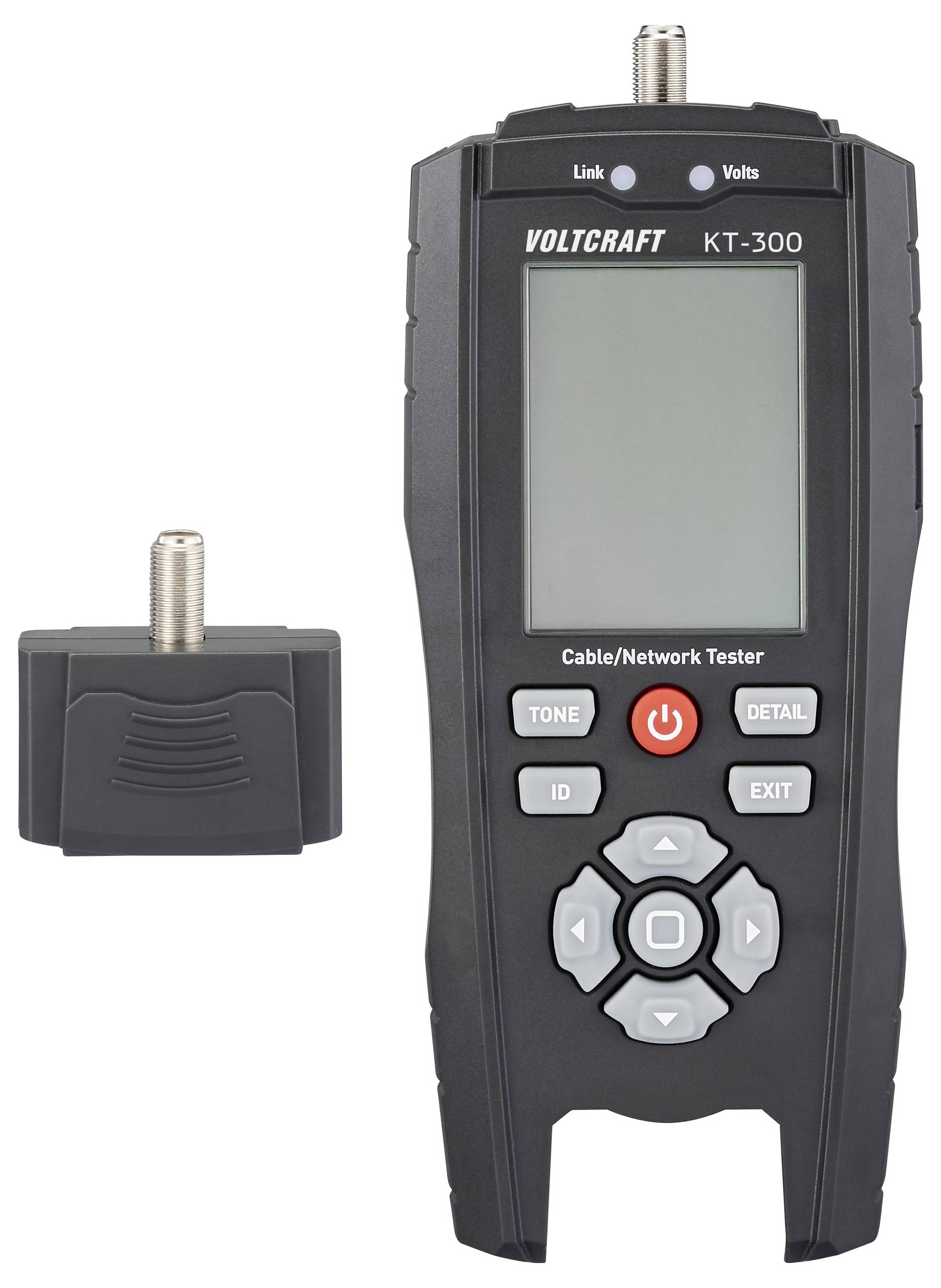

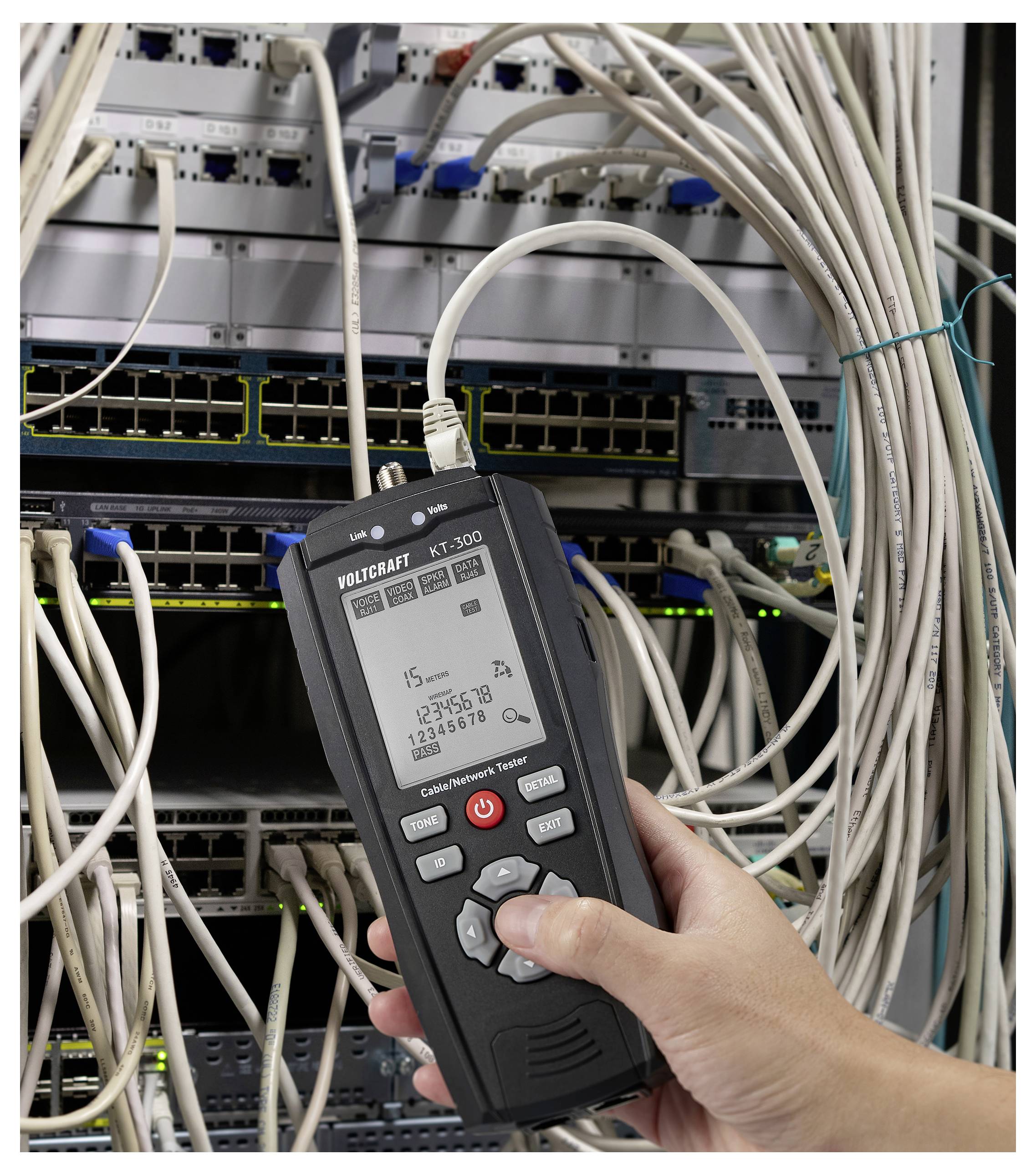

If you want to detect cable breaks or unclean connections in electrical systems, problems are quickly arise. The VOLTCRAFT KT-300 LAN cable tester is an indispensable tool, especially for laying cables under plaster. Whether twisted-pair cable (CAT5E to CAT7), coaxial cables (50, 75 and 93 Ω) or telephone and alarm lines: Using TDR-technology (Time Domain Reflectometry) are located in cables with a length of 0.5 to 610 meters to exact distances to faults. For a detailed diagnosis, resistance, propagation delay and time offset (displacements/skew), including length and distance to error places are precisely determined. Thanks to VOP (adjustable propagation speed) a high measurement accuracy is obtained for different cable types like UTP, FTP or SSTP.
Verification of network and PoE structures

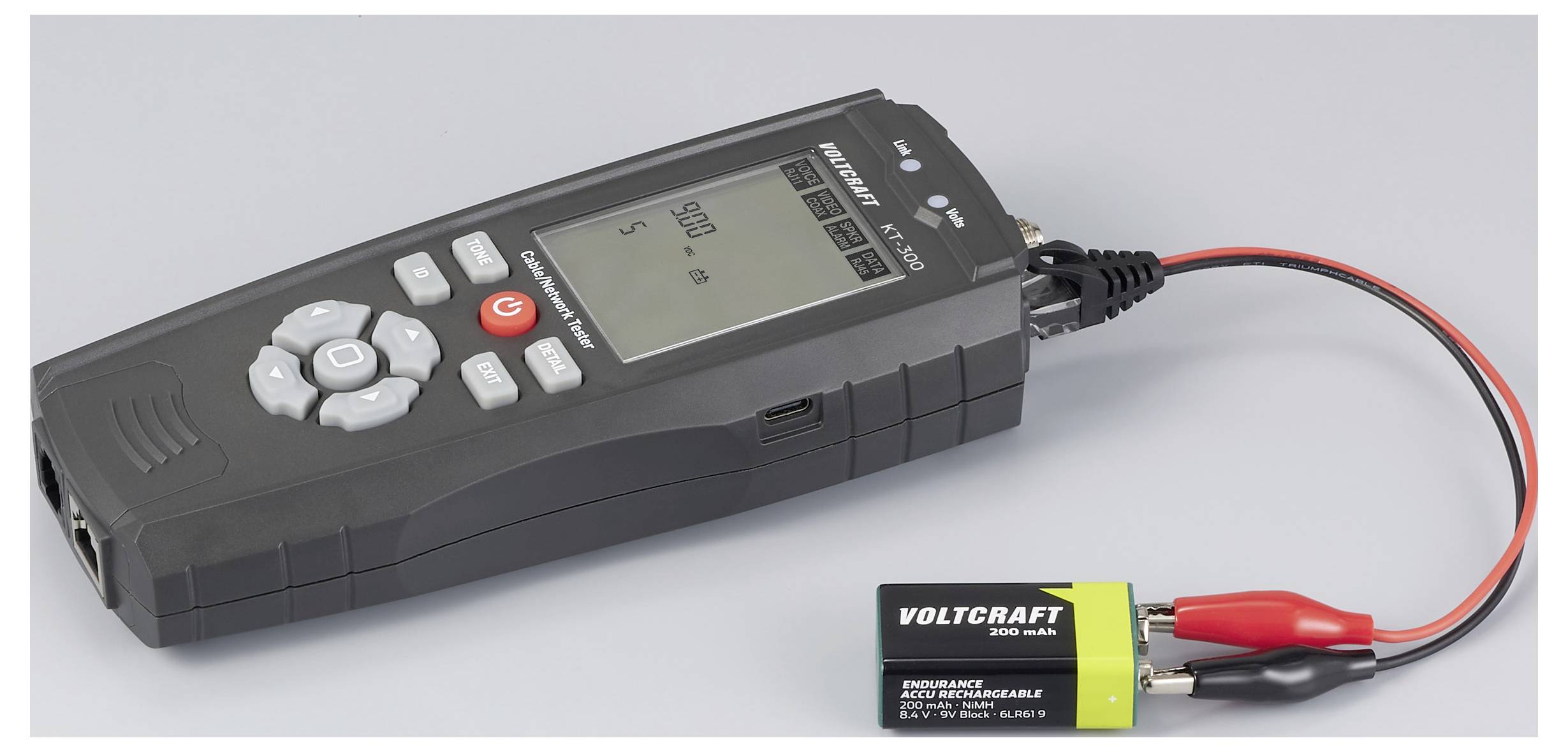

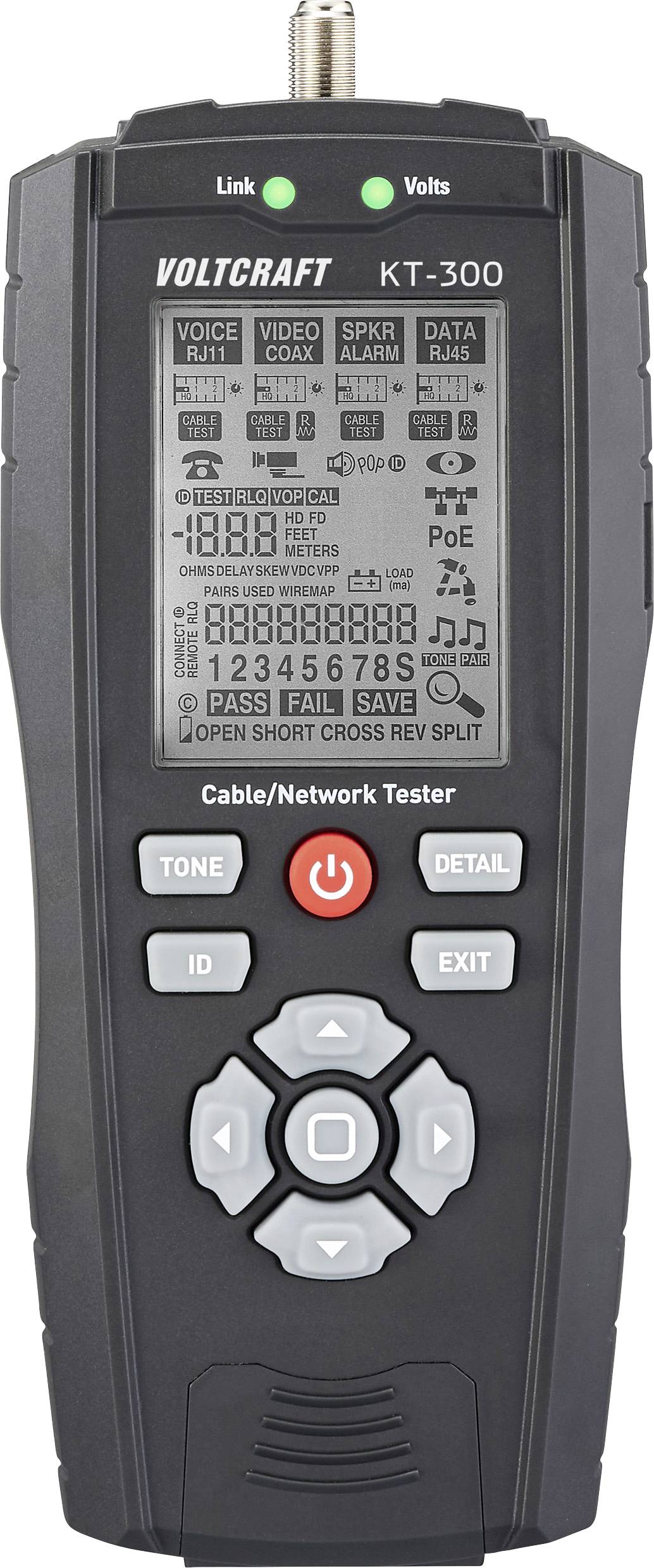

To ensure correct wiring, the VOLTCRAFT KT-300 LAN cable tester creates complete wire maps and reliably identifies line interruptions, short-circuits, reverse polarity as well as separate wire pairs (split pairs). In addition to general Ethernet connectivity tests, the tester has a PoE signal detection that distinguishes between end-span and mid-span power supplies, but also detects the simultaneous use of all eight wires. To test the function of alarm systems, a 100 mA load test for 12 V batteries is also integrated, which tests the load capacity under real conditions.
Efficient cable location and documentation
An integrated tone generator and eight remote RJ45 stations are available for installation and troubleshooting in complex environments. These enable the simultaneous identification of up to eight connection sockets or cable paths. The internal memory has space for 250 reports that can be read and printed via the USB interface.
System equipment and accessories

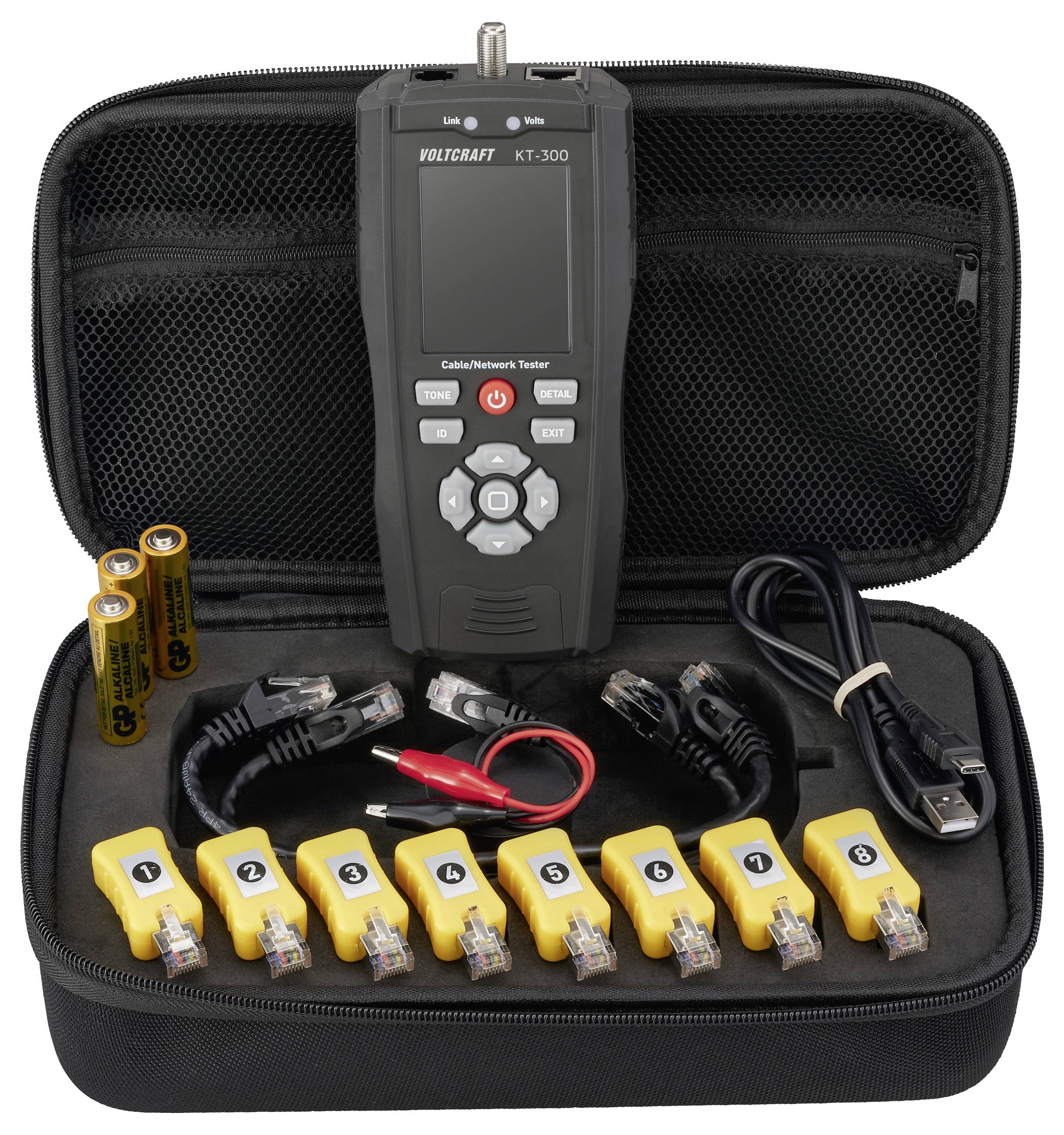

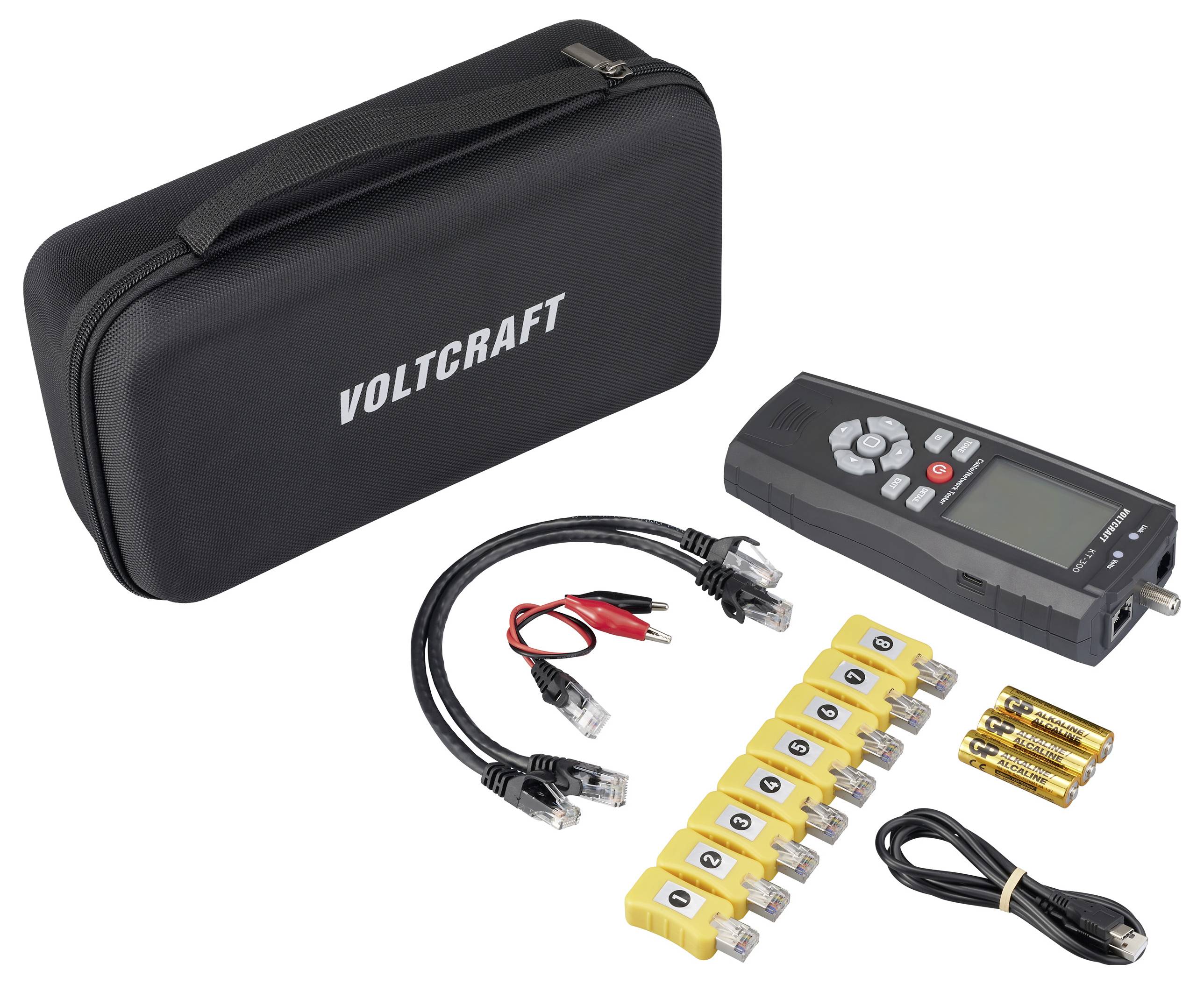

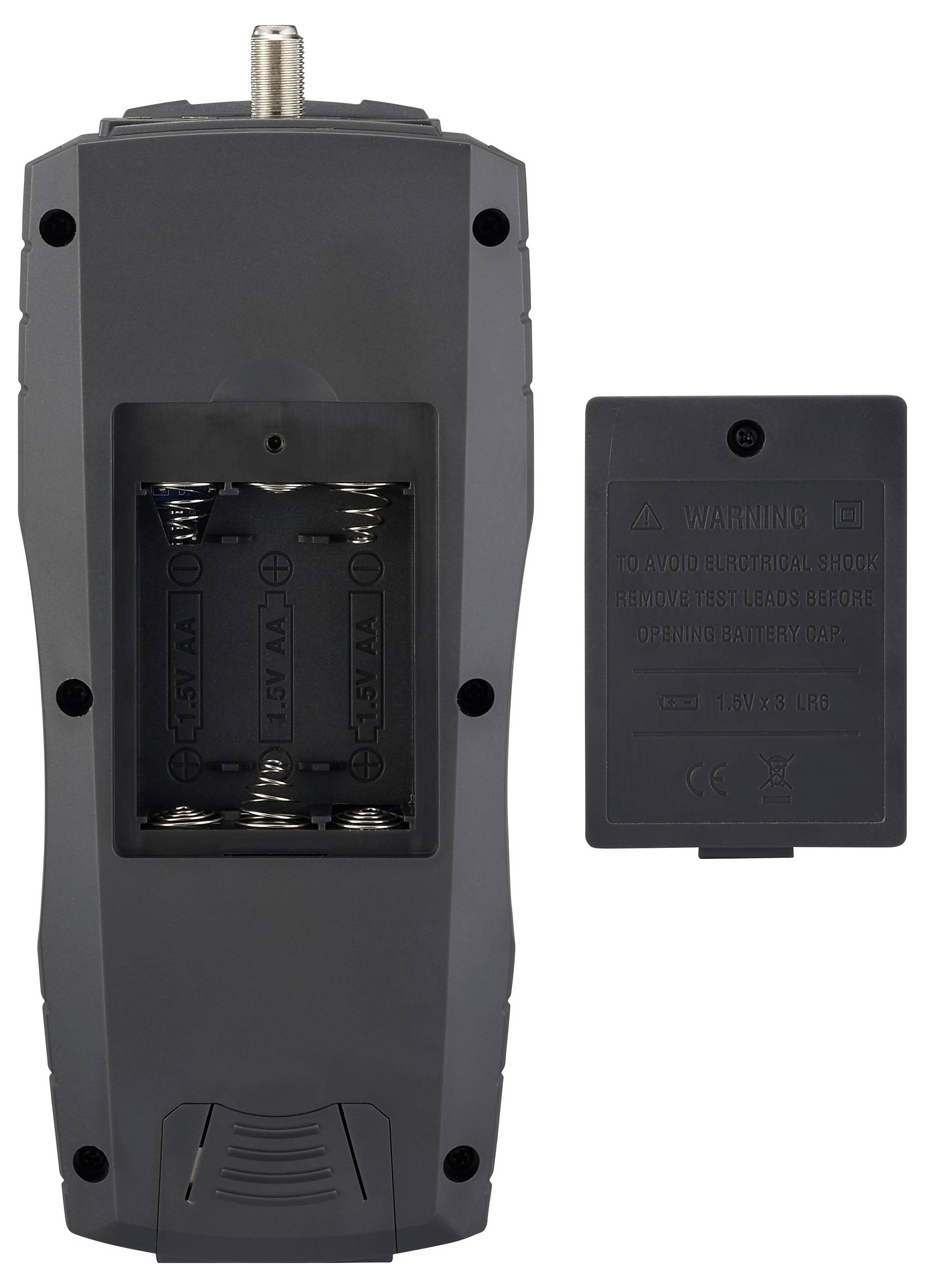

Everything, WAS is required for immediate use of the VOLTCRAFT KT-300 LAN cable tester, comes with the tester, three AA batteries and a robust carrying case. The accessories also include eight remote units, two RJ45 connection cables, a USB cable as well as a special adapter cable from RJ45 to alligator clips for universal contacts. The user manual is enclosed.

This text is machine translated.
