Cable tester VC-18799370 VOLTCRAFT KT-7

EAN:
Part number:
Item no:
Two Volcraft KT-7 HDMI cable tester units, transmitter and receiver, showing HDMI and HDMI Mini pinout diagrams and a power/switch button.

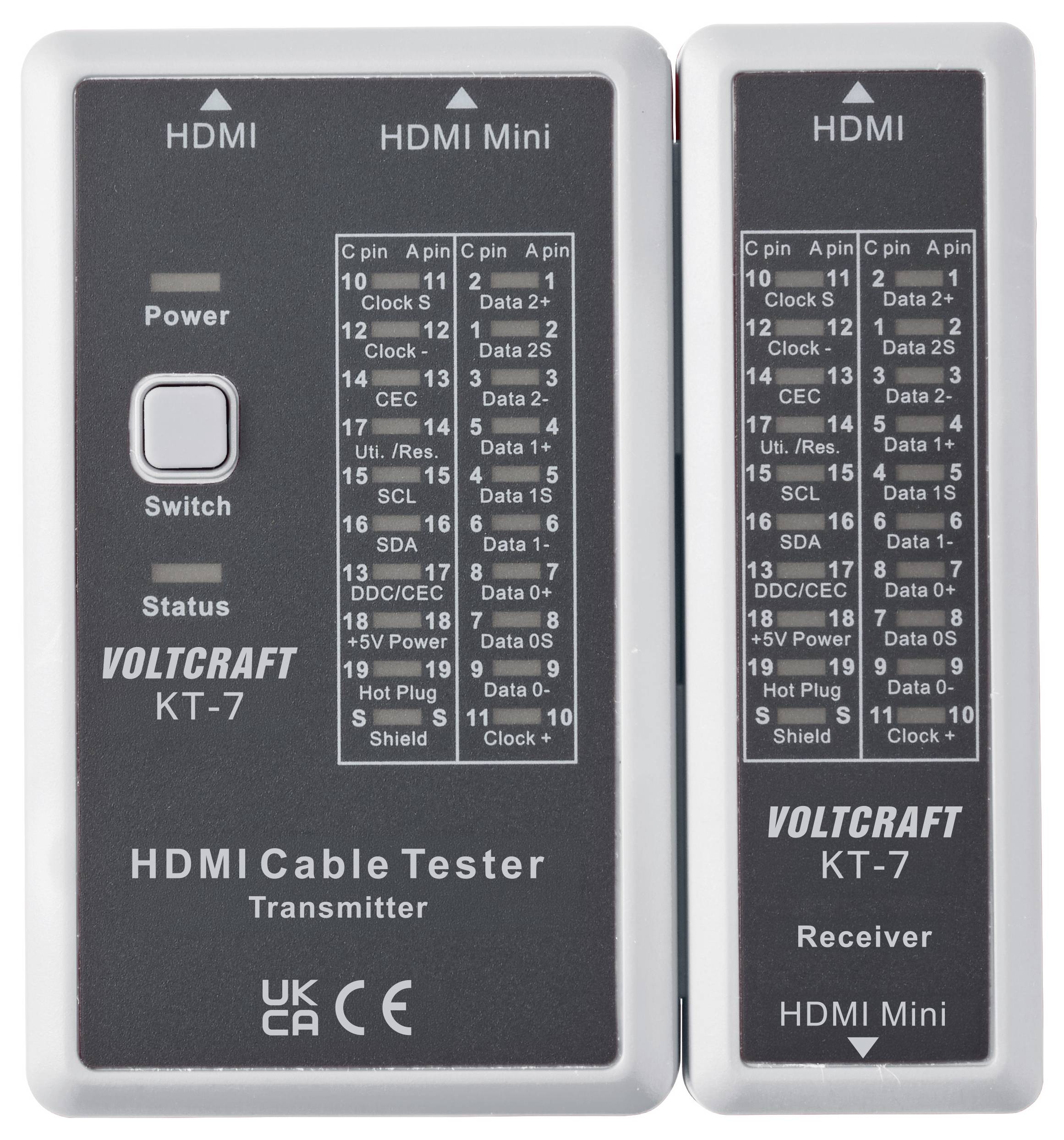

Two VOLTCRAFT KT-7 HDMI cable tester modules, transmitter and receiver, showing HDMI/HDMI Mini port pinout labels and a power switch.

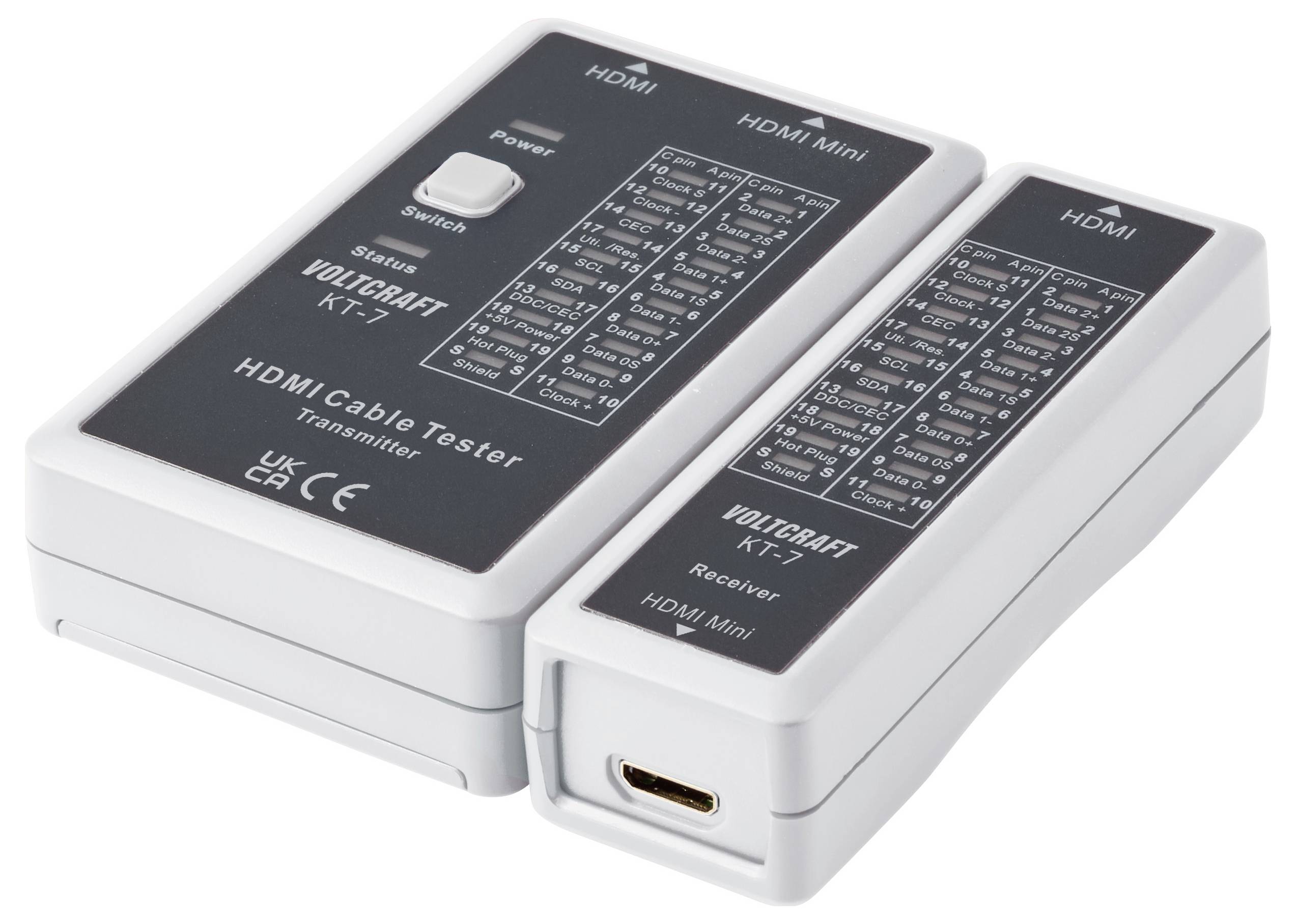

Two white HDMI Mini cable tester units labeled transmitter and receiver, shown side by side with indicator lights and test charts.

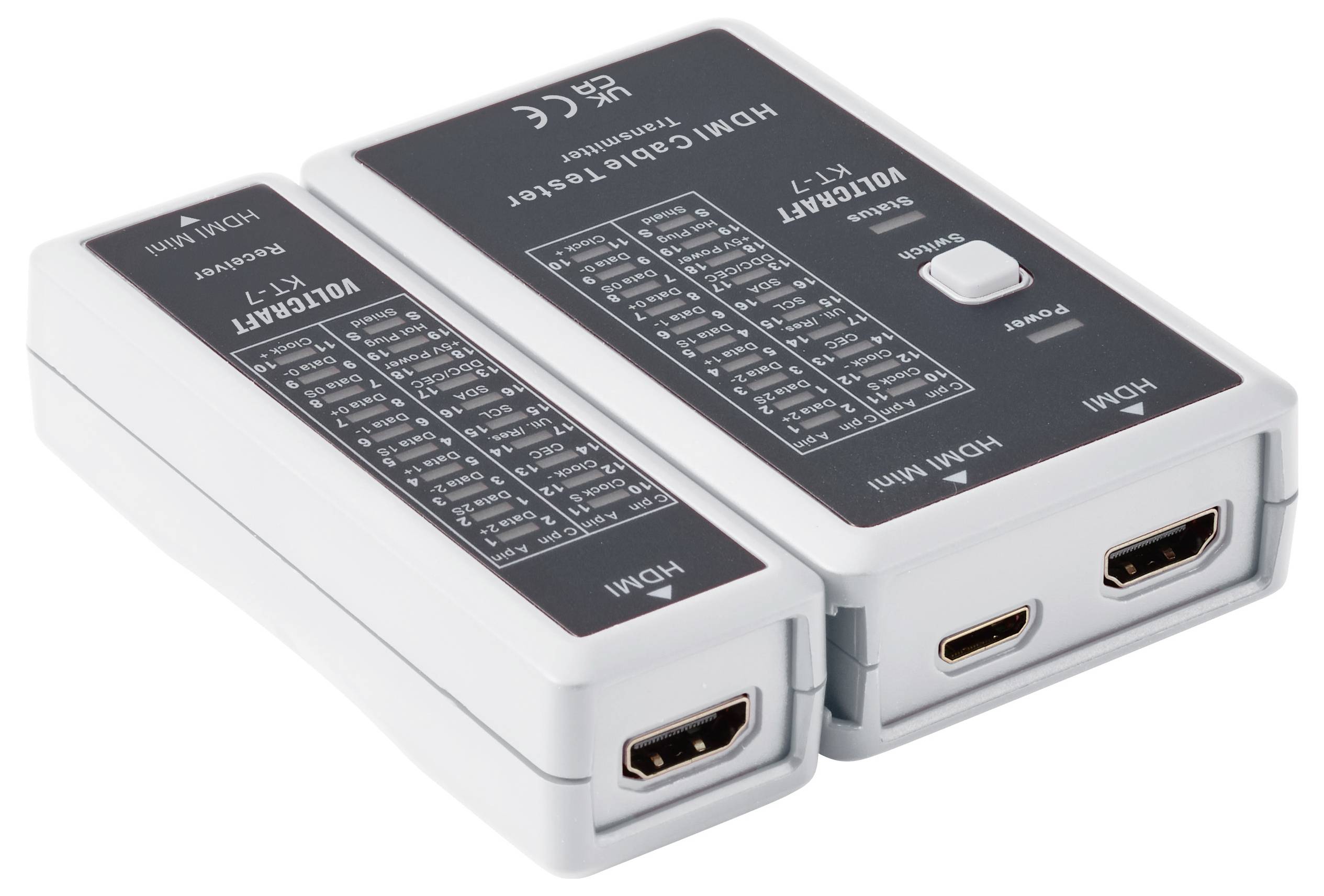

Two white HDMI voltage tester devices with labeled top panels and HDMI ports, shown side by side on a white background.
White wireless door/window sensor set with main unit open to show battery compartment and mounting plate beside it<br>

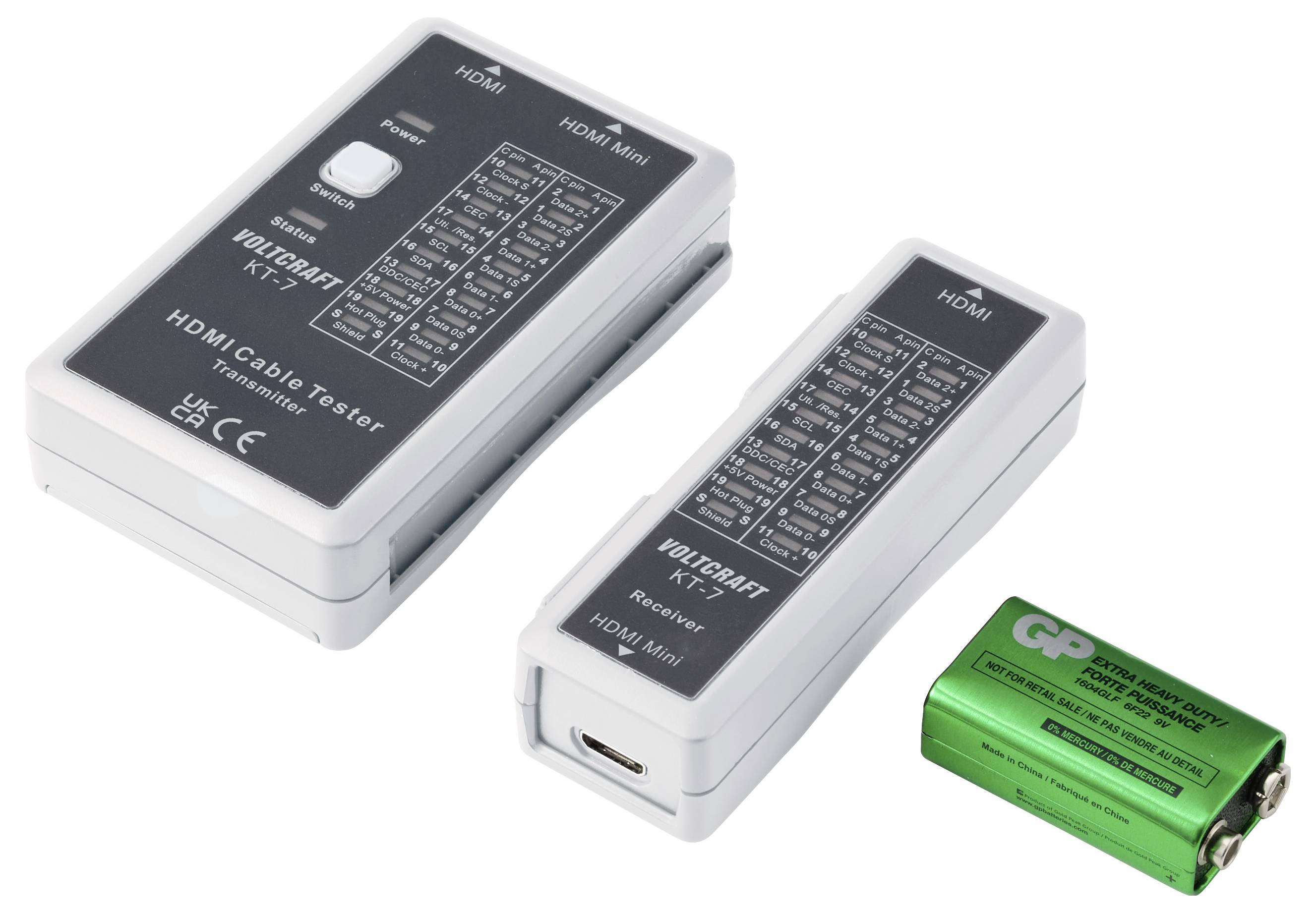

Two handheld HDMI cable tester units labeled transmitter and receiver, shown with a green 9V battery on a white background.

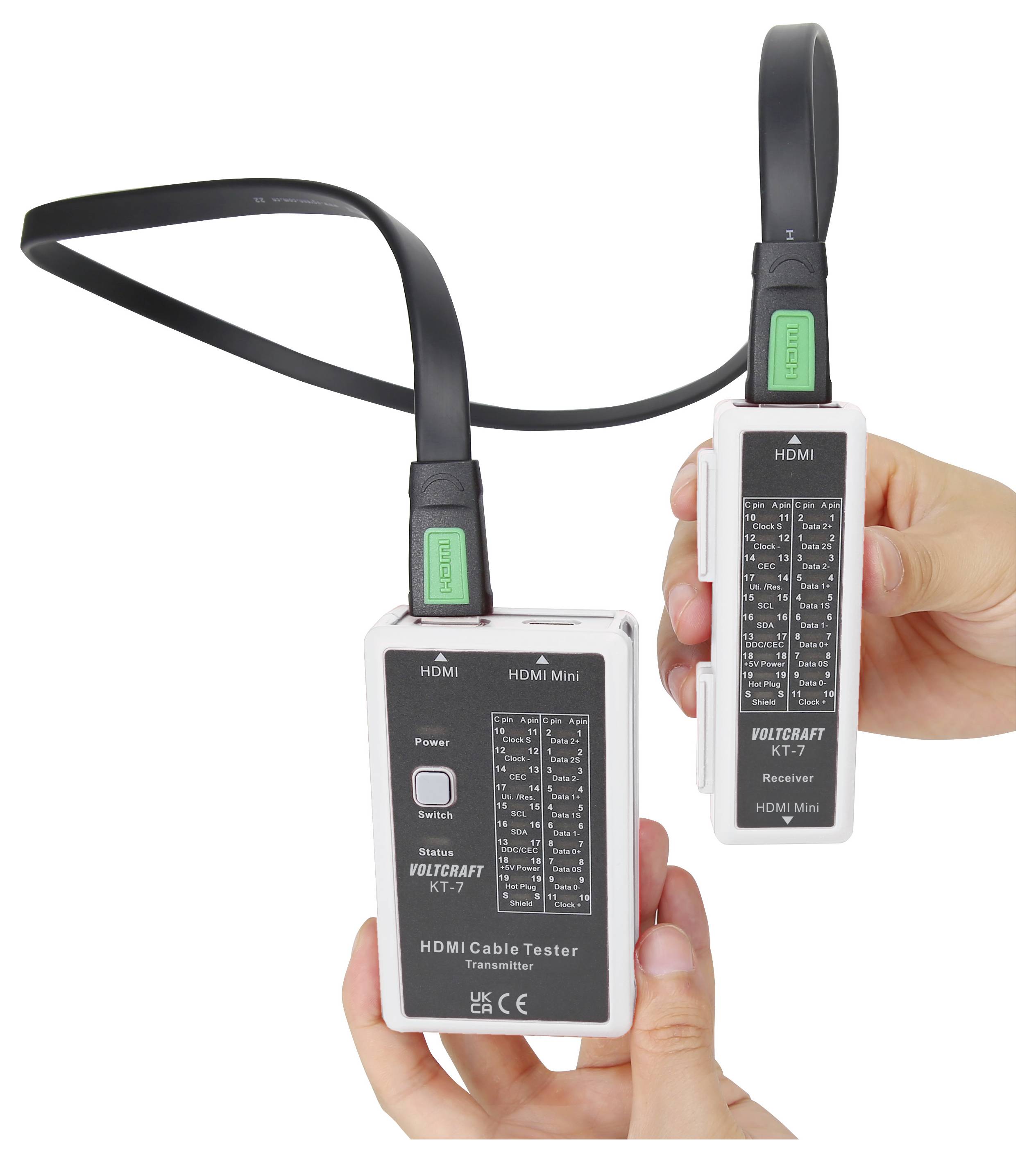

Hands holding a VOLTCRAFT KT-7 HDMI cable tester transmitter and receiver connected by a cable, with port/test status labels on each unit.

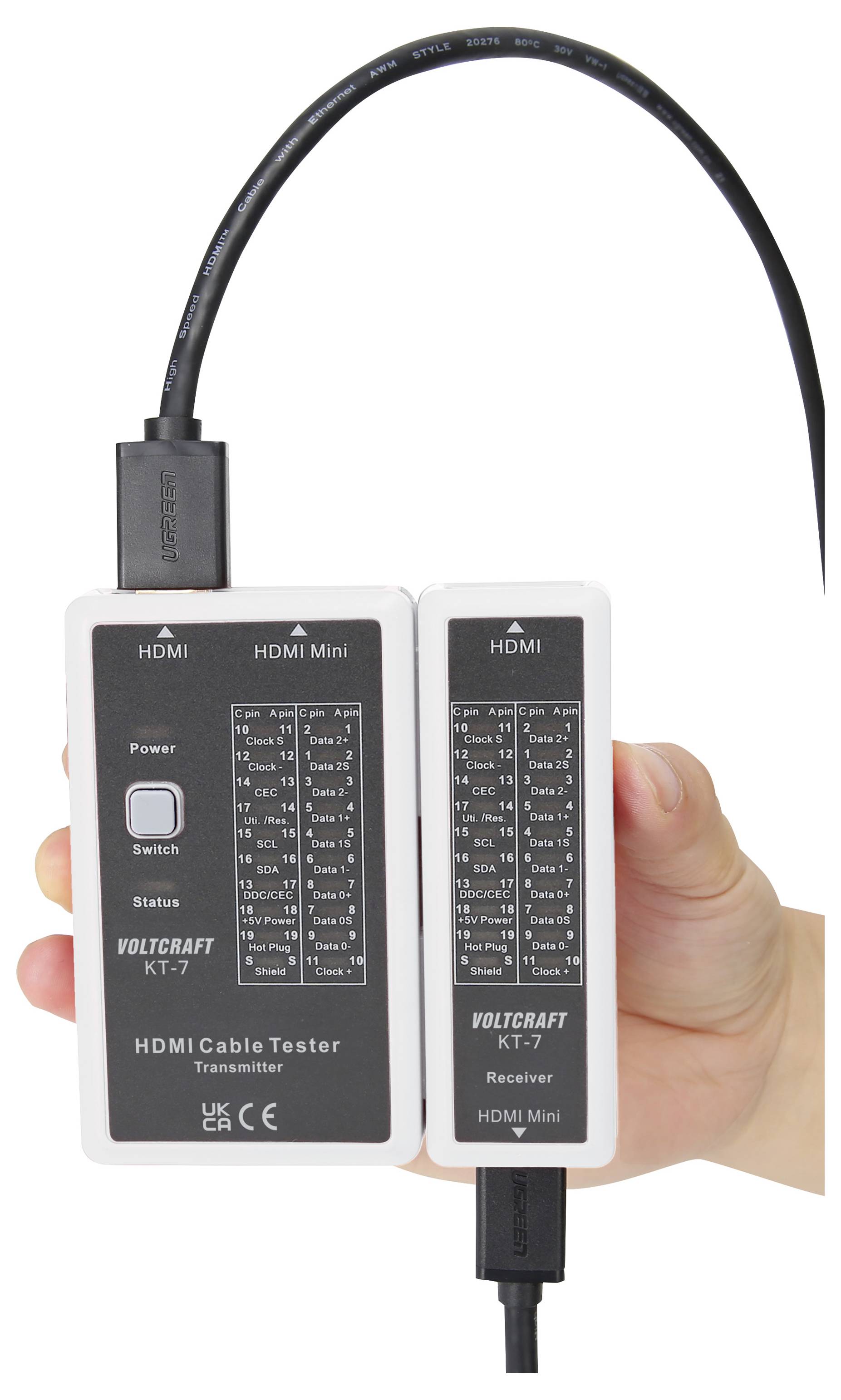

Hand holding a Voltcraft KT-7 HDMI cable tester with transmitter and receiver connected by a cable, showing labeled ports and status indicators.
1/8
Datasheet (PDF)
Dispatches on Tue 15 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

VOLTCRAFT KT-7 Cable tester HDMI

  • Cable tester for HDMI and Mini-HDMI cables
  • 20 LED indicators (19 pins plus shield)
  • Automatic detection of open, short, and crossover circuits
  • Scan test mode
  • Full display test mode
  • Single-key operation

Technical specifications

Product type

Cable tester

Function

Break

Acoustic signal

No

Display

LED

Optical display

Yes

Test sockets

HDMI plug

HDMI plug C mini

Manufacturer's standards (no certificate)

Weight

129 g

Type

KT-7

Plastic free packaging

Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3759874 Cable tester VC-18799370 VOLTCRAFT KT-7

User & Safety Instructions

User & Safety Instructions 3759874 Cable tester VC-18799370 VOLTCRAFT KT-7

Warranty Terms

Warranty Terms 3759874 Cable tester VC-18799370 VOLTCRAFT KT-7

Description

The VOLTCRAFT KT-7 cable tester is specially designed for checking HDMI and mini-HDMI cables. The 129 g light measuring device offers an optical LED display and is suitable for controlling video and audio cables in a professional environment.

Targeted diagnosis of HDMI cables
The device automatically identifies open circuits, short circuits and crossed connections in the cables. You can switch flexibly between a scan test mode and a complete display test mode.

Detailed LED-display
For locating errors the tester has 20 LED-displays, which show the 19 pins as well as the shielding of the HDMI-cable individually and show the status visually.

User-friendly operation
Thanks to the one-button operation, the testing process can be started easily. A built-in battery level warning indicator and manual or automatic shutdown option support a trouble-free operation.

This text is machine translated.

Features

  • Manual or automatic power-off
  • Low battery indicator

Scope of delivery

  • Transmitter
  • Receiver
  • 9 V battery
  • User manual
