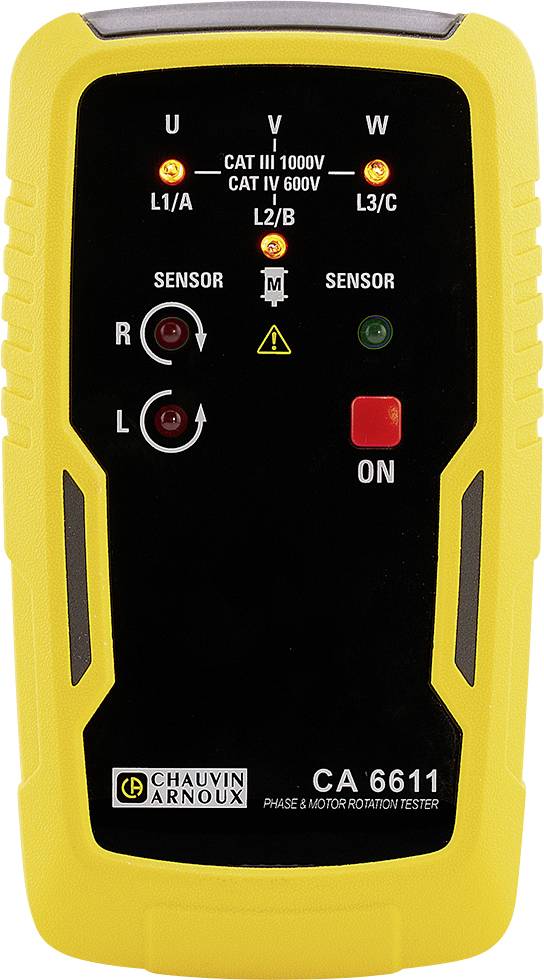

Chauvin Arnoux CA 6611 phase and motor rotation tester with U, V, W input indicators, sensor ports, and ON button.<br>

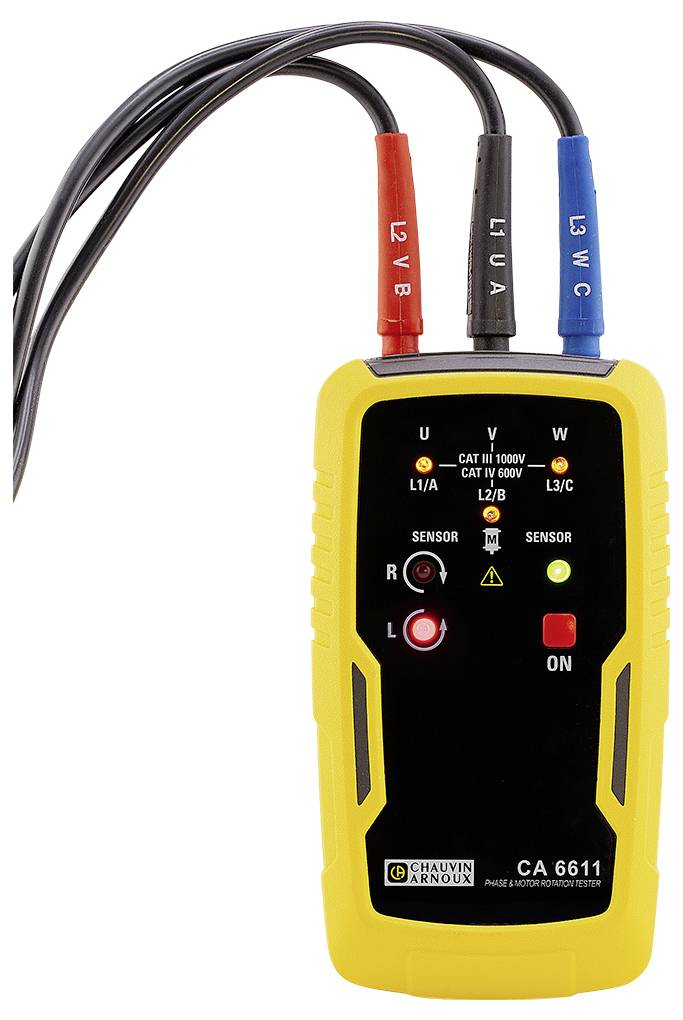

Yellow and black electrical phase rotation tester with three connected leads labeled L1/U/A, L2/V/B, and L3/W/C, showing indicator lights and an ON button.

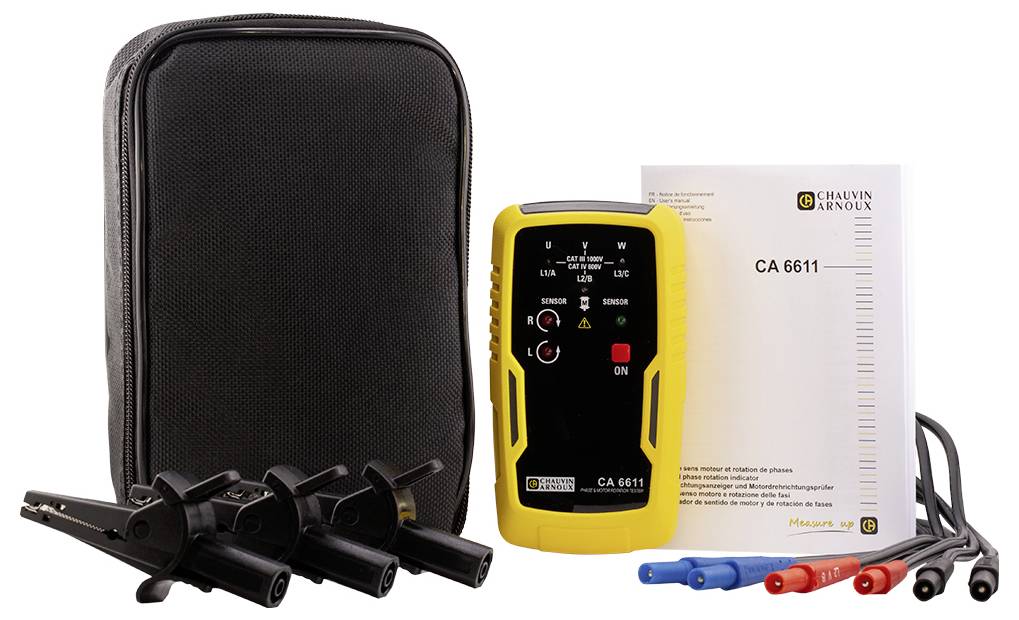

A yellow Chauvin Arnoux CA 6611 test device with manual, carrying case, and four probe leads arranged on a white background.<br>

Yellow electrical phase rotation tester with three leads labeled L2/VB, L1/UA, and L3/WC, front panel lights and ON button, model CA 6611<br>

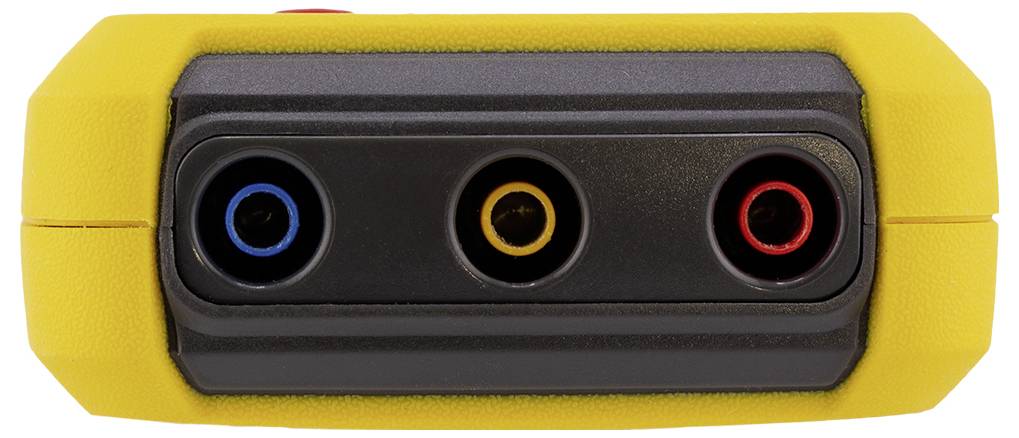

A rugged yellow handheld device with a black front panel showing three circular ports or lights in blue, amber, and red.

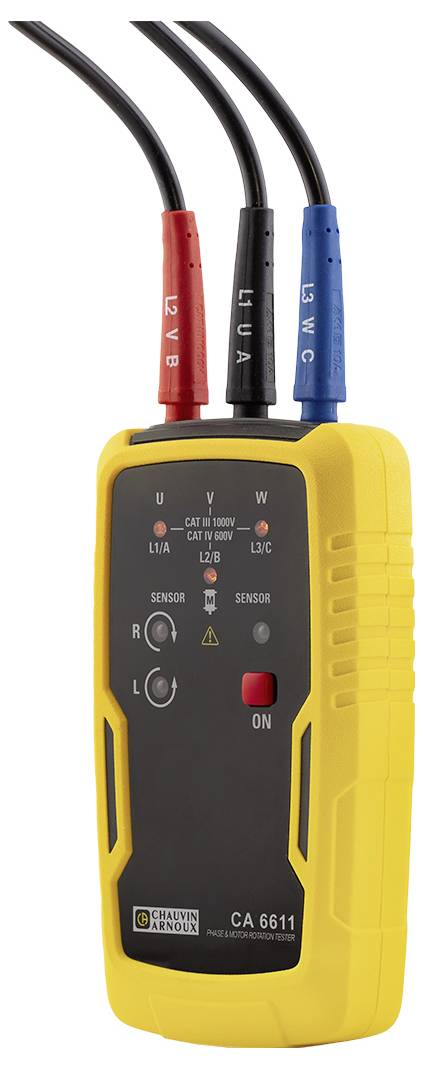

Yellow Chauvin Arnoux CA 6611 electrical tester with three labeled probe leads and front control buttons for measuring U, V, and W signals.

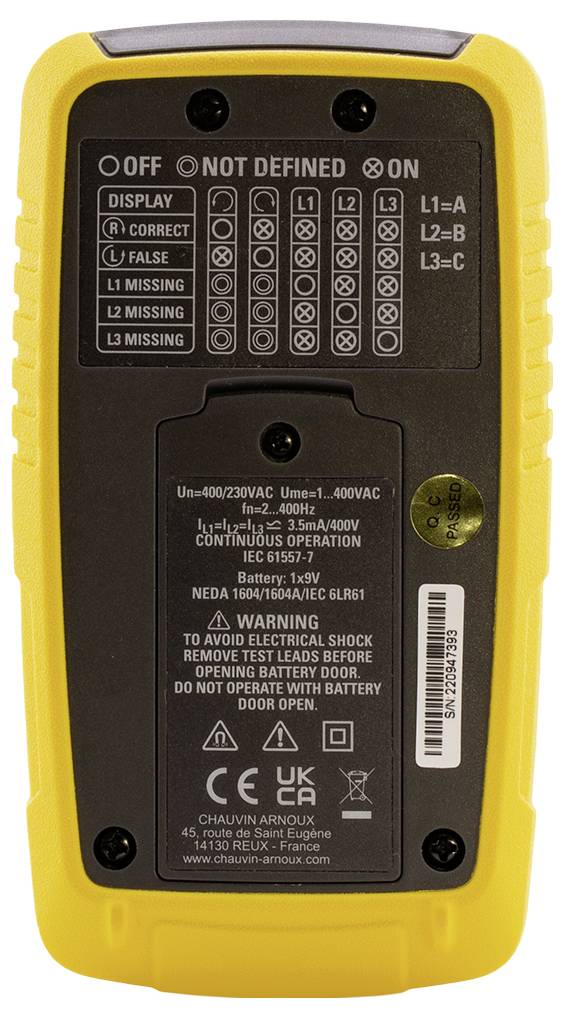

Back view of a yellow Chauvin Arnoux electrical testing device with printed status indicators, connection labels, warning text, and a battery compartment.

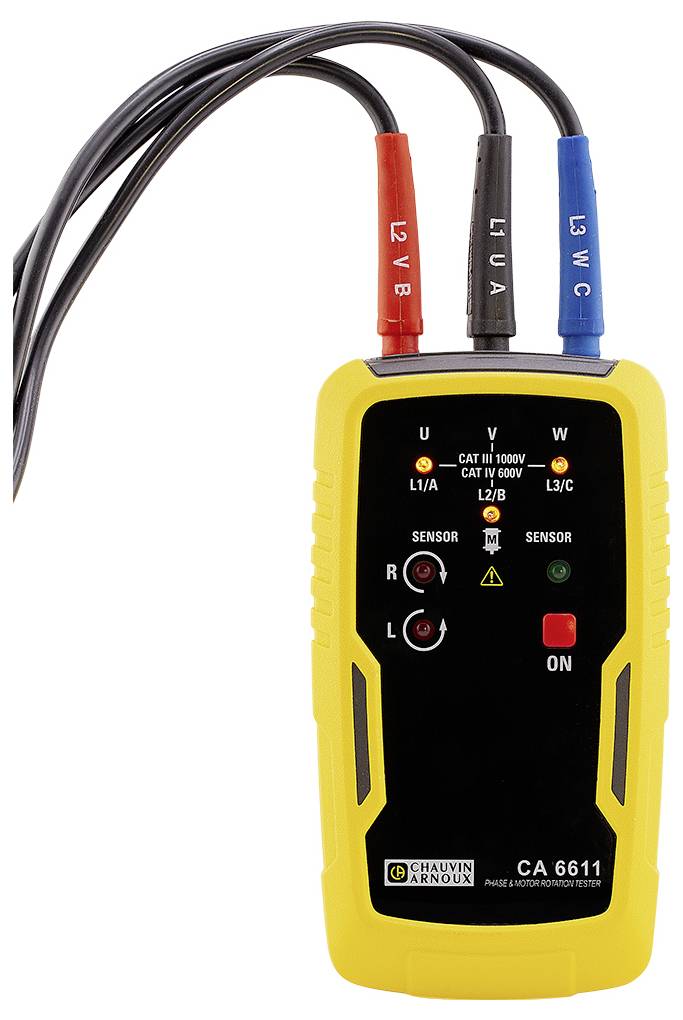

Handheld three-phase electrical phase rotation tester with yellow casing, three labeled leads (L1, L2, L3), indicator lights, and ON button.

1/8

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 239.99 / piece)

€ 239.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

CA 6611 Rotating field direction and engine rotation direction tester

Simple device for displaying and testing the phase sequence of the external conductor and the direction of rotation of drives
Indicates the presence of all external conductors and their phase sequence
Determines the direction of rotation of electrical drives contact-free or by checking the correct external conductor connections at the terminals
Display of the external conductor L1/L2/L3 and the phase sequence clockwise or counterclockwise via several LEDs
Automatic test directly upon connection of the devices
Magnetic casing for simplifying the connection
Colour marking of the connections to avoid incorrect connections

Technical specifications

Operating voltage:
With connection: 1 VAC to 440 VAC between conductors
No connection: 120 VAC to 440 VAC between outer conductors
Power supply with 9 V battery

Product type: Phase and EMF tester

Reading type: Rotating magnetic field
Phase

Display: LED

V AC reading range: 1 up to 440 V

Reading category: CAT III 1000 V
CAT IV 600 V

: IP40

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 31 x 135 x 75 mm

Weight: 190 g

Max. frequency: 400 Hz

Min. frequency: 2 Hz

Frequency range: 2 Hz - 400 Hz

V AC reading range (max.): 440 V

V AC reading range (min.): 1 V

Width: 135 mm

Height: 75 mm

Length: 31 mm

Type: CA 6611

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3743730 Chauvin Arnoux CA 6611 Phase and EMF tester CAT III 1000 V, CAT IV 600 V LED

User & Safety Instructions

User & Safety Instructions 3743730 Chauvin Arnoux CA 6611 Phase and EMF tester CAT III 1000 V, CAT IV 600 V LED

Warranty Terms

Warranty Terms 3743730 Chauvin Arnoux CA 6611 Phase and EMF tester CAT III 1000 V, CAT IV 600 V LED

Description

Phase rotation and motor rotation direction tester CA 6611 – Precise phase and rotation direction detection for industrial applications
The CA 6611 is a versatile rotary field and motor rotation direction tester for professional use in industry and electrical engineering. It enables the reliable determination of the phase sequence in three-phase networks as well as the recognition of the direction of rotation of motors - even without a direct connection. It therefore supports safe commissioning and reduces downtime for maintenance and service. The test starts automatically after the connection of the measurement leads, while the clear display lamps enable a quick and intuitive evaluation in the daily work.

Your benefits at a glance
• Quick and automatic display of the phase sequence without additional settings
• Detects breaks in external conductors at an early stage
• Increases safety when commissioning and servicing equipment
• Detection of the direction of rotation of the motor even without electrical connection
• Intuitive operation through immediate test results after connection
• Reduces faulty connections thanks to color-coded test leads
• Compact and lightweight for mobile use

Typical areas of application:
• Testing of three-phase installations in buildings and industrial plants
• Check the phase sequence for new installations
• Commissioning and maintenance of electric motors
• Maintenance and service of electrical distribution systems
• Service applications for industrial consumers such as pumps, fans and conveyors
• Troubleshooting power and connection problems
• Used by electrical installers and service technicians

Technical highlights
• Indicates the presence of all external conductors and their phase sequence
• Determines the direction of rotation of electrical drives without contact or by checking the correct external conductor connections at the terminals
• Voltage range: With connection: 1 V to 440 V AC / No connection: 120 V to 440 V AC
• Frequency range: 2 Hz to 400 Hz
• Electrical safety: CAT IV 600 V / CAT III 1000 V.
• Automatic phase sequence test immediately after connection of the test leads
• Indicator lights for phase and phase sequence of the external conductor clockwise or counterclockwise
