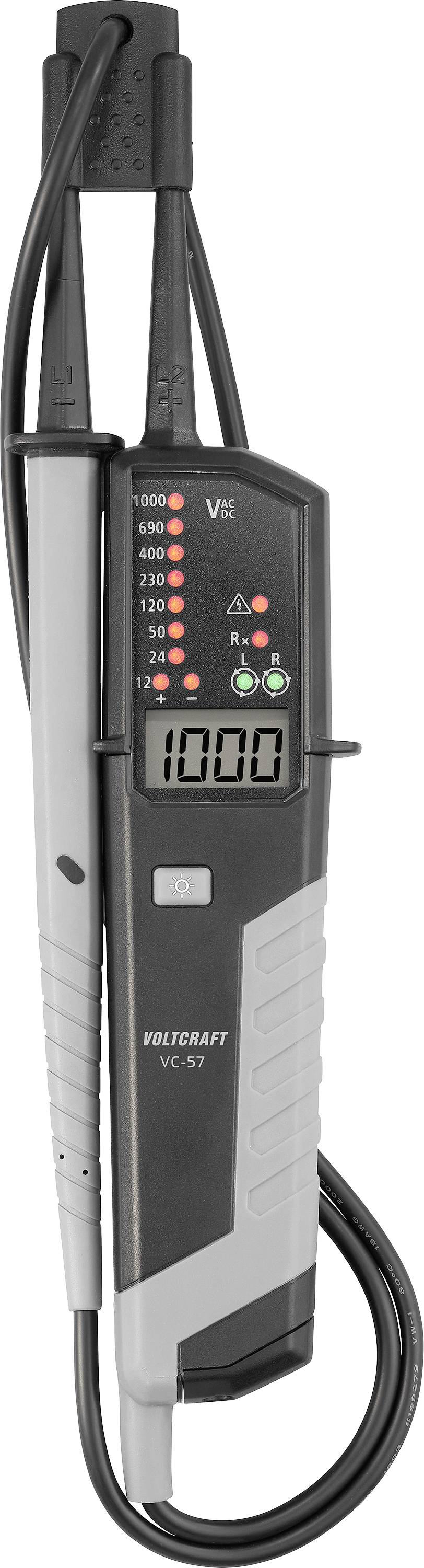

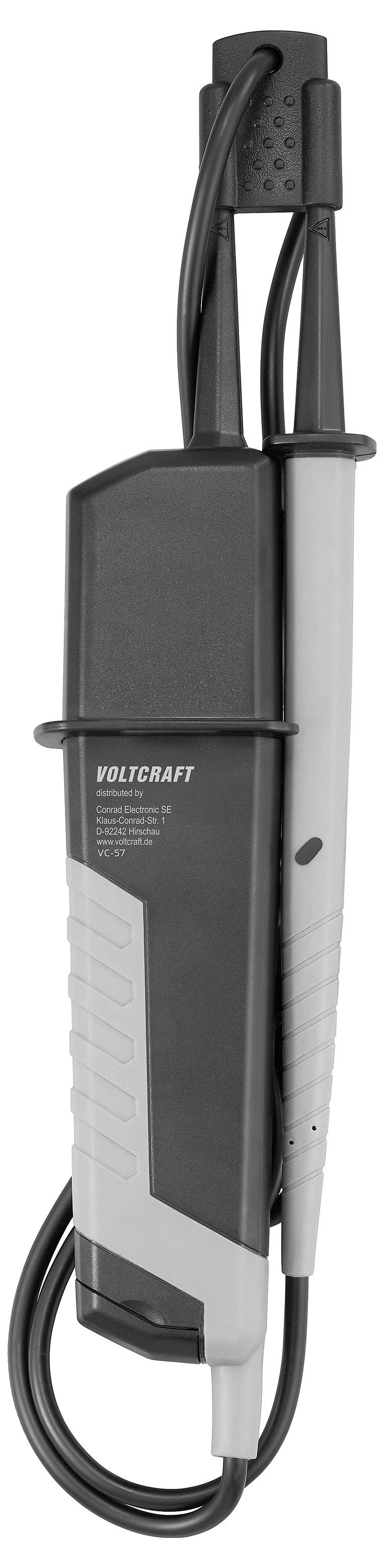

VOLTCRAFT VC-57 Two-pole voltage tester CAT IV 1000 V LCD, LED
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 62.18 / piece)
€ 62.18
plus VAT.
Highlights & Details
VOLTCRAFT VC-57 2-pole voltage tester 12-1000 V AC / 1500 V DC
- CAT IV 1000 V
- Automatic AC/DC testing
- AC measuring range: 12 V to 1000 V
- DC measuring range: 12 V to 1500 V
- Clear LED/LCD display
- Silent operation (no buzzer)
Technical specifications
- Product type
Two-pole voltage tester
- Reading type
Rotating magnetic field
Voltage testing
Continuity
- Display
LCD
LED
- V AC reading range
12 up to 1000 V
- V DC reading range
12 up to 1500 V
- Reading category
CAT IV 1000 V
IP64
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 240 x 75 x 30 mm
- Weight
270 g
- Max. frequency
400 Hz
- Min. frequency
16 Hz
- Frequency range
16 Hz - 400 Hz
- V AC reading range (max.)
1000 V
- V AC reading range (min.)
12 V
- Voltage DC reading range (max.)
1500 V
- Voltage reading range DC (min.)
12 V
- Width
75 mm
- Height
30 mm
- Length
240 mm
- Type
VC-57
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3540244 VOLTCRAFT VC-57 Two-pole voltage tester CAT IV 1000 V LCD, LED
User & Safety Instructions
User & Safety Instructions 3540244 VOLTCRAFT VC-57 Two-pole voltage tester CAT IV 1000 V LCD, LED
Warranty Terms
Warranty Terms 3540244 VOLTCRAFT VC-57 Two-pole voltage tester CAT IV 1000 V LCD, LED
Description
This two-pole voltage tester allows precise measurements in a wide voltage range from 12 V to 1000 V AC and up to 1500 V DC. The device carries out an automatic AC/DC examination and displays the results clearly on a combined LED and LCD display. Thanks to the low-noise operation without buzzer, the Ideal measuring device is suitable for environments in which acoustic signals are not desired.
High safety standard

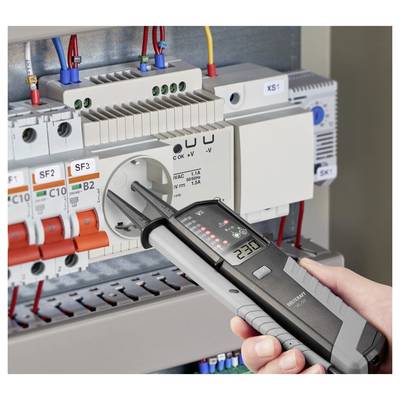

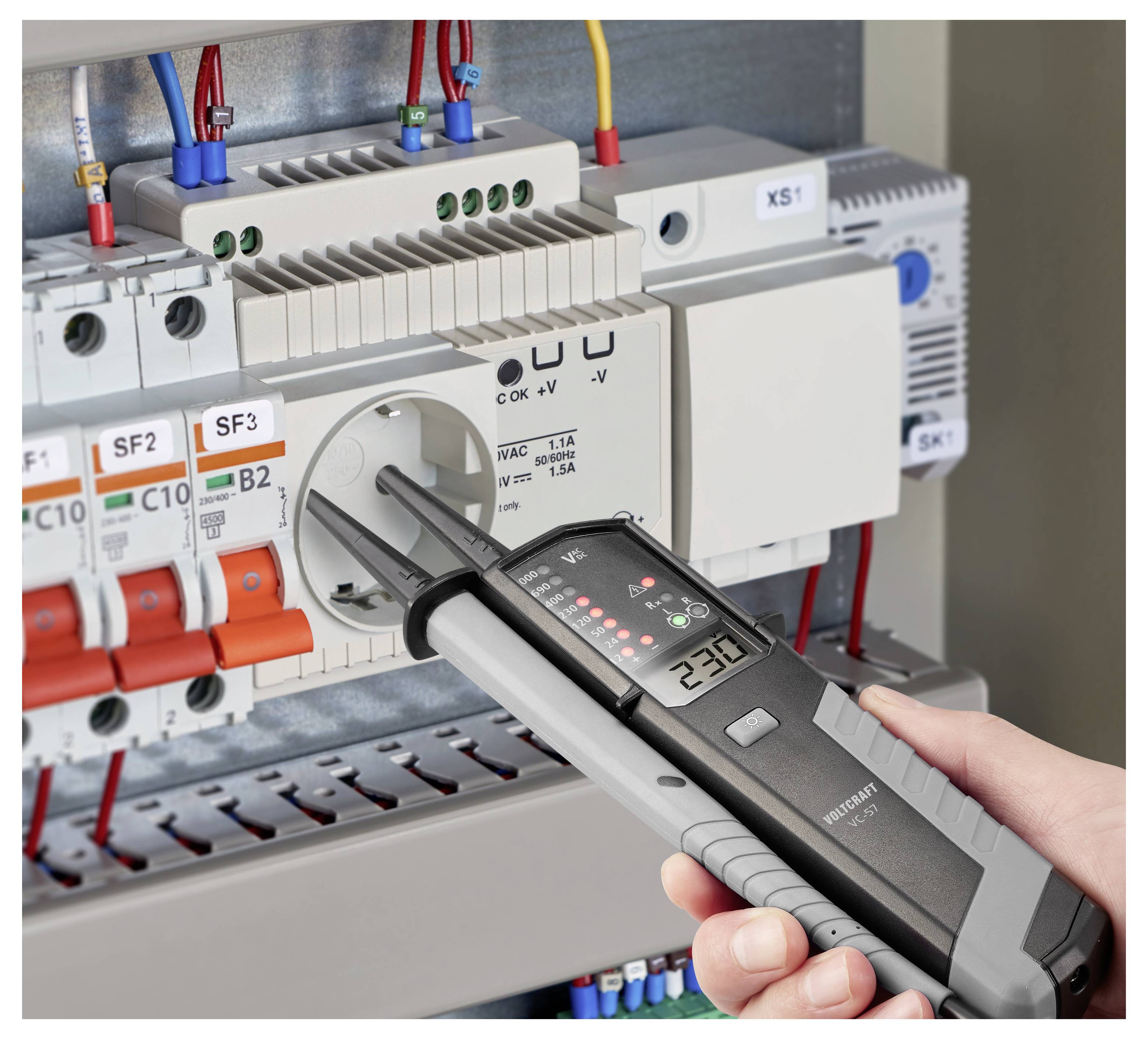

The voltage tester complies with the measurement category CAT IV 1000 V and thus offers protection for measurements directly at the source of the low-voltage installation. The casing is IP64 certified, WAS means reliable protection against dust and water spray.
Extensive testing functions

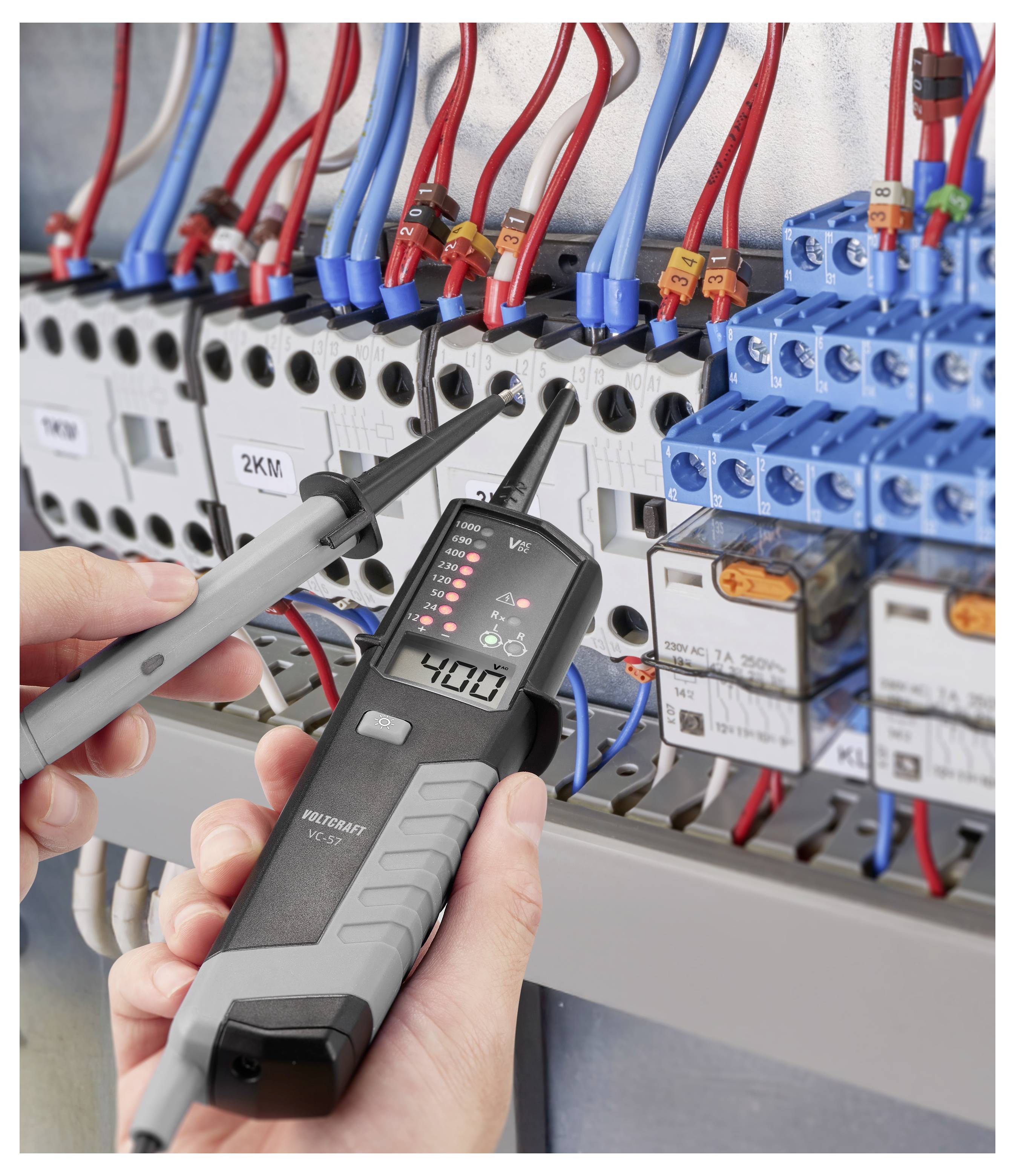

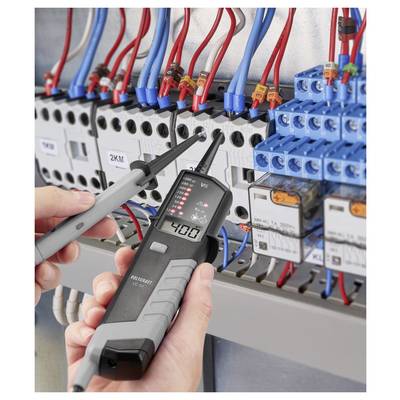

In addition to the voltage testing, the device supports single-pole phase testing in the range of 100 to 1000 V/AC and phase sequence testing. The automatic polarity detection and an integrated torch function make daily work on complex measurement points easier.
Practical handling

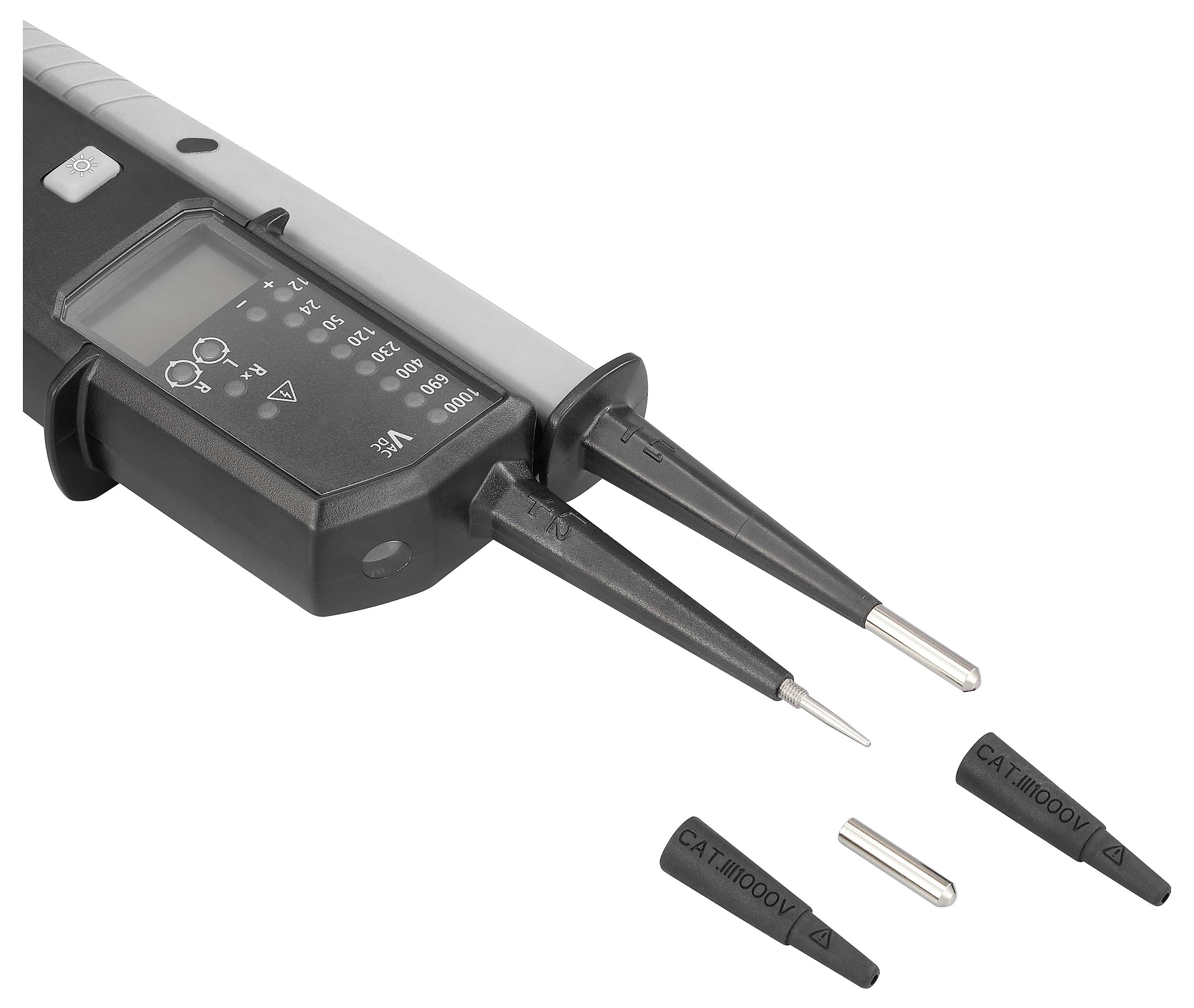

For secure contact with sockets, plug-on 4 mm test adapter is included. A captive probe tip protection protects the tool when not in use and increases safety during transport.
This text is machine translated.
High safety standard
The voltage tester complies with the measurement category CAT IV 1000 V and thus offers protection for measurements directly at the source of the low-voltage installation. The casing is IP64 certified, WAS means reliable protection against dust and water spray.
Extensive testing functions
In addition to the voltage testing, the device supports single-pole phase testing in the range of 100 to 1000 V/AC and phase sequence testing. The automatic polarity detection and an integrated torch function make daily work on complex measurement points easier.
Practical handling
For secure contact with sockets, plug-on 4 mm test adapter is included. A captive probe tip protection protects the tool when not in use and increases safety during transport.
This text is machine translated.
Features
- LED voltage indication: 12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V, 1000 V
- Single pole phase test: 100 to 1000 V/AC
- Display: 13 LEDs and LCD with backlight
- Phase rotation (direction) testing
- Plug-on 4 mm test adapters for reliable socket outlet contact

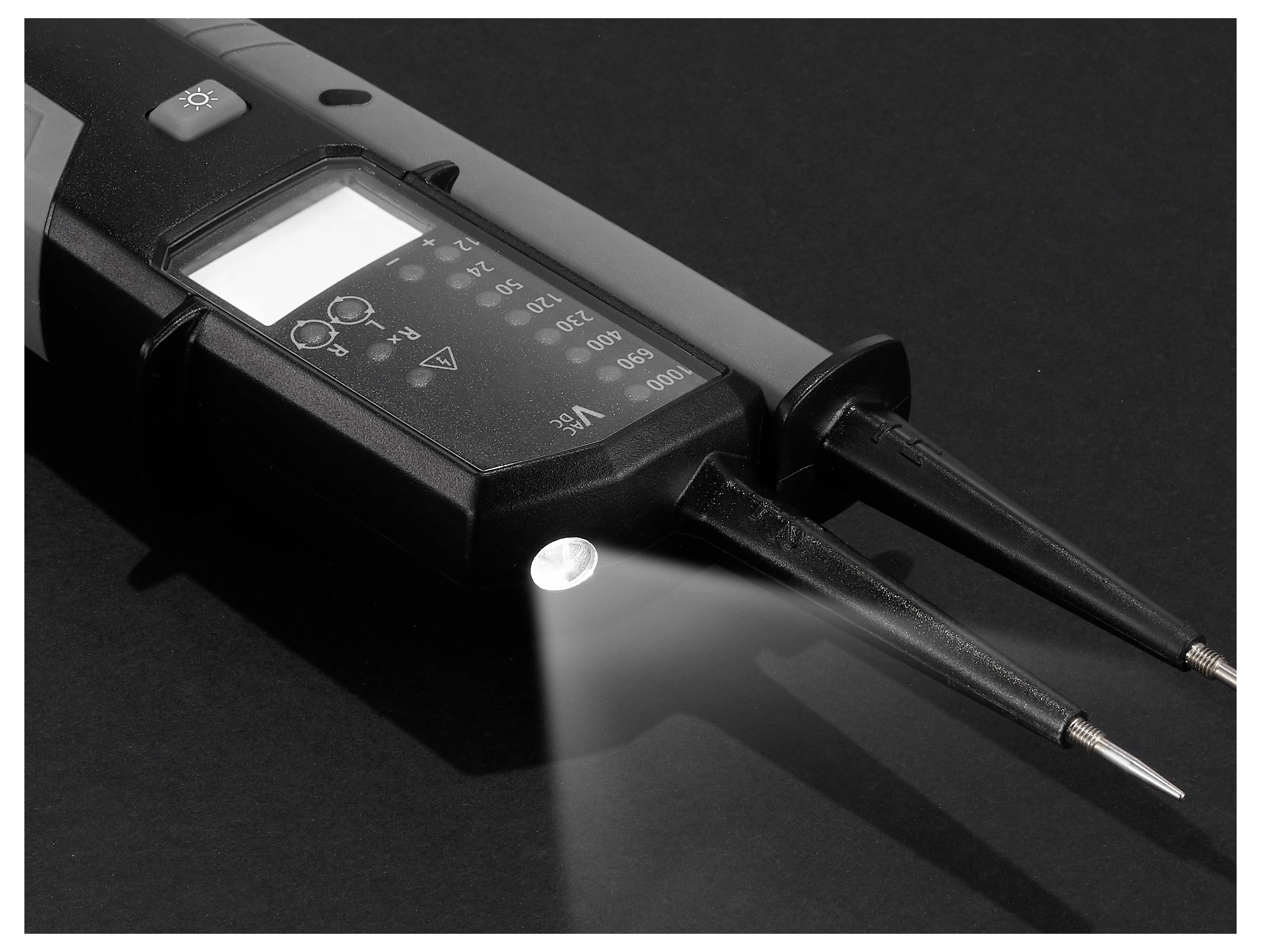

- Integrated test-point illumination
- Rotary field indication
- Automatic polarity detection
- Touch light
- Probe-tip protection
- IP64

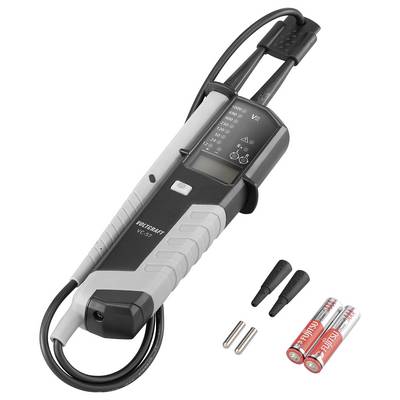

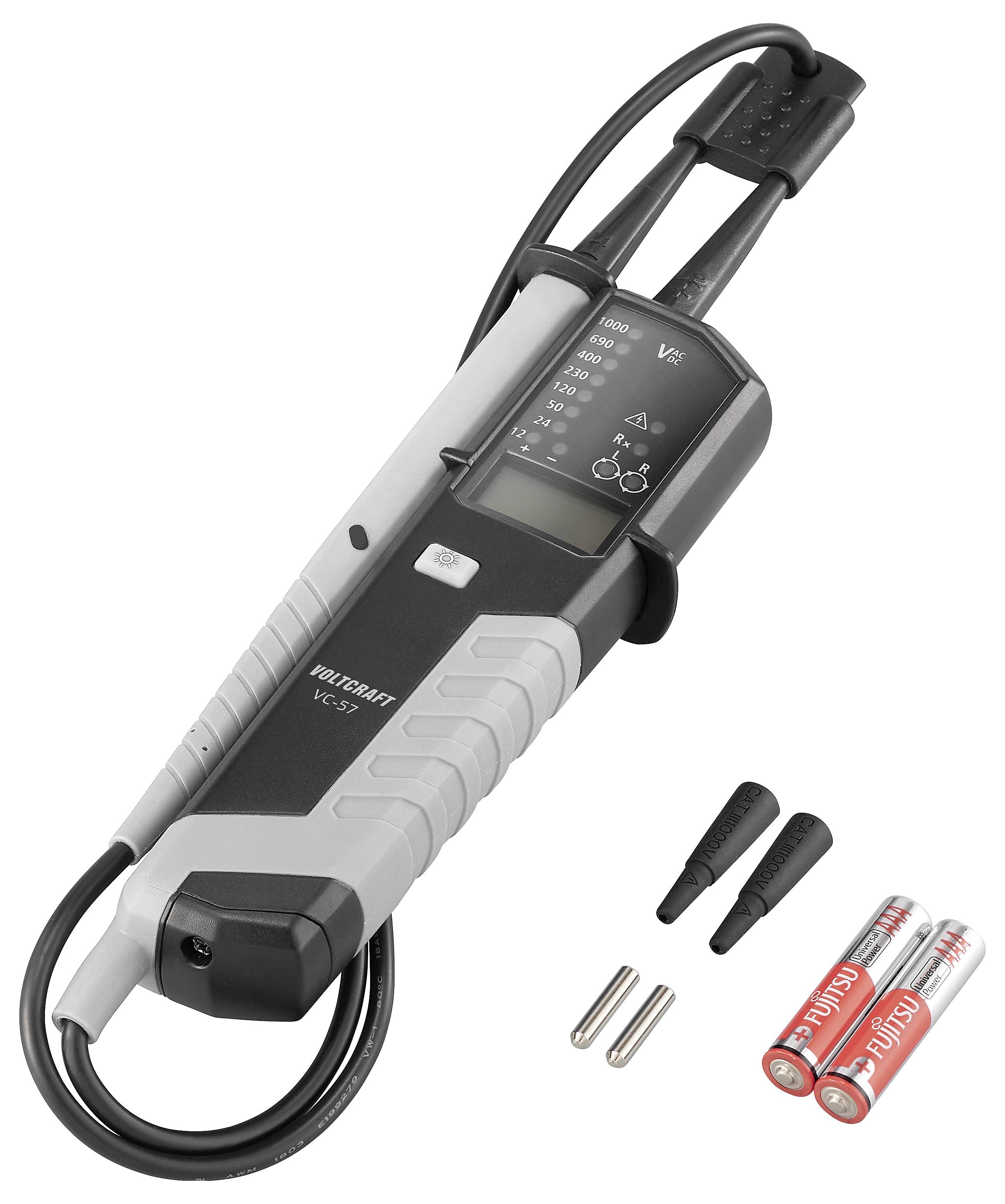

Scope of delivery
- Tester with captive probe tip protection
- 2x Terminal screws (Ø 4 mm, applicable for CAT II)
- 2x Plastic protective sheaths, applicable for CAT III/CAT IV
- 2x Micro batteries (AAA/LR03)
- User manual
