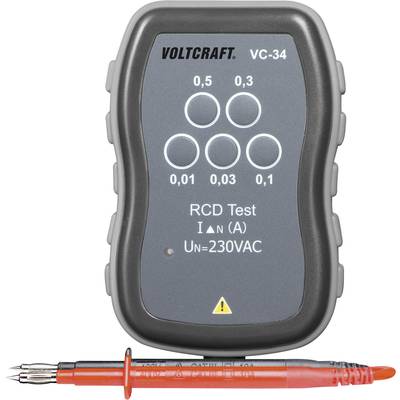

VOLTCRAFT VC-34 RCD TESTER CAT III 250 V Manufacturer's standards (no certificate)
EAN:
Part number:
Item no:
Number
Total (€ 38.65 / piece)
€ 42.01
-8 %
€
Highlights & Details
FI-Quick tester VC-34
- Test current can be preset
Technical specifications
- RCD/FI-Test: 10 mA/30 mA/0, 1 A/0, 5 A
- Over-voltage category CAT III 250 {V}
- Protectionclass 2
- Load switching
0.5 A
- Dim
(L x W x H) 105 x 71 x 31 mm
- Height
31 mm
- Length
105 mm
- Width
71 mm
- Max. frequency
70 Hz
- Frequency range
40 Hz - 70 Hz
- V AC reading range
200 up to 250 V
- V DC reading range
Manufacturer's standards (no certificate)
- Reading category
CAT III 250 V
- Reading type
FI
- Type
VC-34
- Min. frequency
40 Hz
- V AC reading range (max.)
250 V
- V AC reading range (min.)
200 V
- Product type
PCCB quick tester
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 101008 VOLTCRAFT VC-34 RCD TESTER CAT III 250 V Manufacturer's standards (no certificate)
Conformity certificate
Conformity certificate 101008 VOLTCRAFT VC-34 RCD TESTER CAT III 250 V Manufacturer's standards (no certificate)
Warranty Terms
Warranty Terms 101008 VOLTCRAFT VC-34 RCD TESTER CAT III 250 V Manufacturer's standards (no certificate)
Description
Test device for quick testing the triggering funtion of error current protective switch (FI). The triggering current can be pre-selected so that the trigger range can be restricted.
