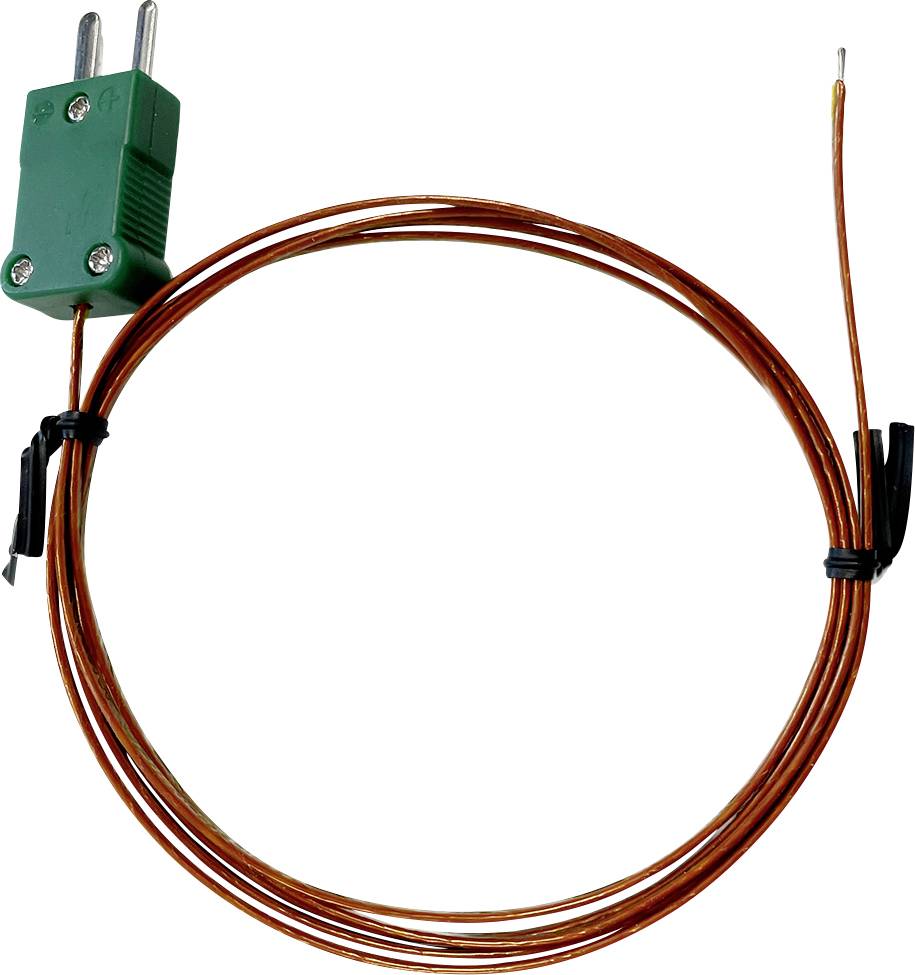

Chauvin Arnoux SKF1 Thermo sensor -50 up to 350 °C Sensor type K, Thermocouple
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Highlights & Details
SKF1 Flexible wire temperature sensor, -50 °C … +350 °C.
- Sensor type K, Thermocouple
- -50 up to 350 °C
- Heating element connector
Technical specifications
- Product type
Thermo sensor
- Sensor type
K
Thermocouple
- Temperature reading range (min.)
-50 °C
- Temperature reading range (max.)
350 °C
- Connector
Heating element connector
- Cable length
1 m
- Temperature reading range
-50 up to 350 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3436214 Chauvin Arnoux SKF1 Thermo sensor -50 up to 350 °C Sensor type K, Thermocouple
Warranty Terms
Warranty Terms 3436214 Chauvin Arnoux SKF1 Thermo sensor -50 up to 350 °C Sensor type K, Thermocouple
Description
To suit the ambient and temperature conditions, a wide range of temperature sensors are available: Flexible, can be attached with hook-and-loop fastener or magnet, or with a handle and spiral connector cable.
These Class I/II temperature sensors are interchangeable and equipped with compensated miniature plugs. They are suitable for the C.A 1821, C.A 1822, TK 2000 & TK 2002 thermometers or can be used with an adapter as multimeter accessories.
Technical data
- K thermocouple sensor: Flexible wire sensor SKF1 with exposed measuring point
- Measurement range -50 °C to +350 °C.
- Sensor length 1 m.
- Output: Miniature plug
This text is machine translated.
These Class I/II temperature sensors are interchangeable and equipped with compensated miniature plugs. They are suitable for the C.A 1821, C.A 1822, TK 2000 & TK 2002 thermometers or can be used with an adapter as multimeter accessories.
Technical data
- K thermocouple sensor: Flexible wire sensor SKF1 with exposed measuring point
- Measurement range -50 °C to +350 °C.
- Sensor length 1 m.
- Output: Miniature plug
This text is machine translated.
Scope of delivery
- 1 operating instructions in 5 languages
