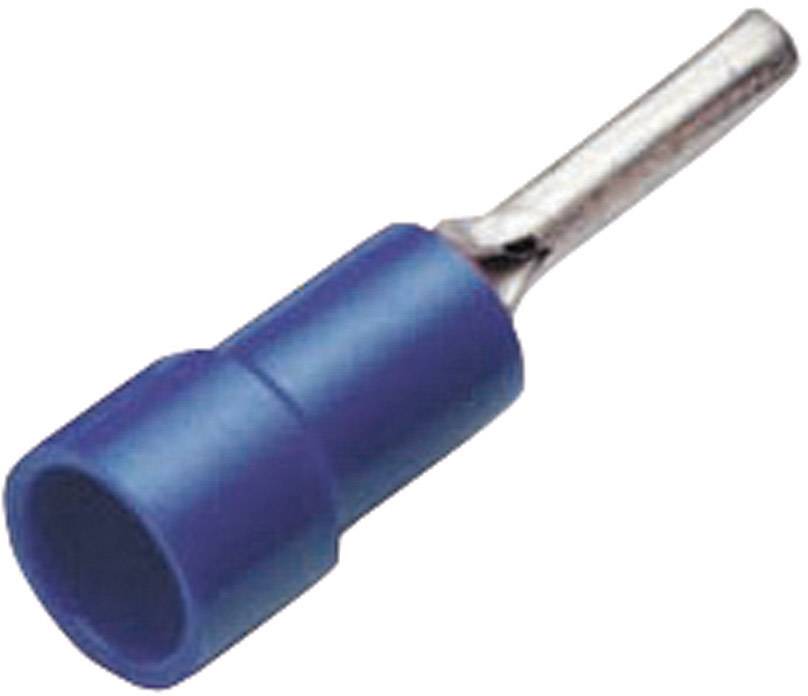

Cimco 180224 Pin terminal 1.50 mm² 2.50 mm² Partially insulated Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin terminal
Min. cross section
1.50 mm²
max. cross section
2.50 mm²
Pin length
10 mm
Pin Ø
1.9 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.16
45
12% = € 0.02
€ 0.14
75
19% = € 0.03
€ 0.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.16 / piece)
€ 2.40
plus VAT.
Highlights & Details
Insulated pin cable lug
- Pin length: 10 mm
- Pin diameter: 1.9 mm
Our service for you
Technical specifications
- Product type
Pin terminal
- Min. cross section
1.50 mm²
- max. cross section
2.50 mm²
- Pin length
10 mm
- Pin Ø
1.9 mm
- Insulation type
Partially insulated
- Factory colour
Blue
- Contact material
Cathode copper, tin plated
- Insulation material
PA
- Support sleeve
No
- Manufacturer part #
180224
- Type
180224
- Content
1 pc(s)
- Temperature range
-60 - +105 °C
- RoHS-compliant
Yes
- Cross-section range
1.50 - 2.50 mm²
- Insulation
PA (polyamide, nylon), halogen free
- Material (details)
Cu-ETP according to DIN EN 13600
- Crimp area (max.)
2.50 mm²
- Cross section
1,5 - 2,5 mm²
- Pin length
10 mm
