Cliff CL1850 Test lead adapter Screws - Quick Connect
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Highlights & Details
Quick connection block QUICK TEST Q/T1 CL 1850
- Colour-coded connectors
- Power indicator with glow lamp
- Two pole cut-off the flip cover
Technical specifications
- Dim
(L x W x H) 130 x 60 x 50 mm
- Type A
Screws
- Type B
Quick Connect
- Height
50 mm
- Length
130 mm
- Width
60 mm
- Reading category
CAT II 250 V
- Type
CL1850
- Nominal current
13 A
- Nominal voltage
250 V AC
- Weight
235 g
- Product type
Test lead adapter
Documents & Downloads
Datasheet
Datasheet 103856 Cliff CL1850 Test lead adapter Screws - Quick Connect
User & Safety Instructions
User & Safety Instructions 103856 Cliff CL1850 Test lead adapter Screws - Quick Connect
Description

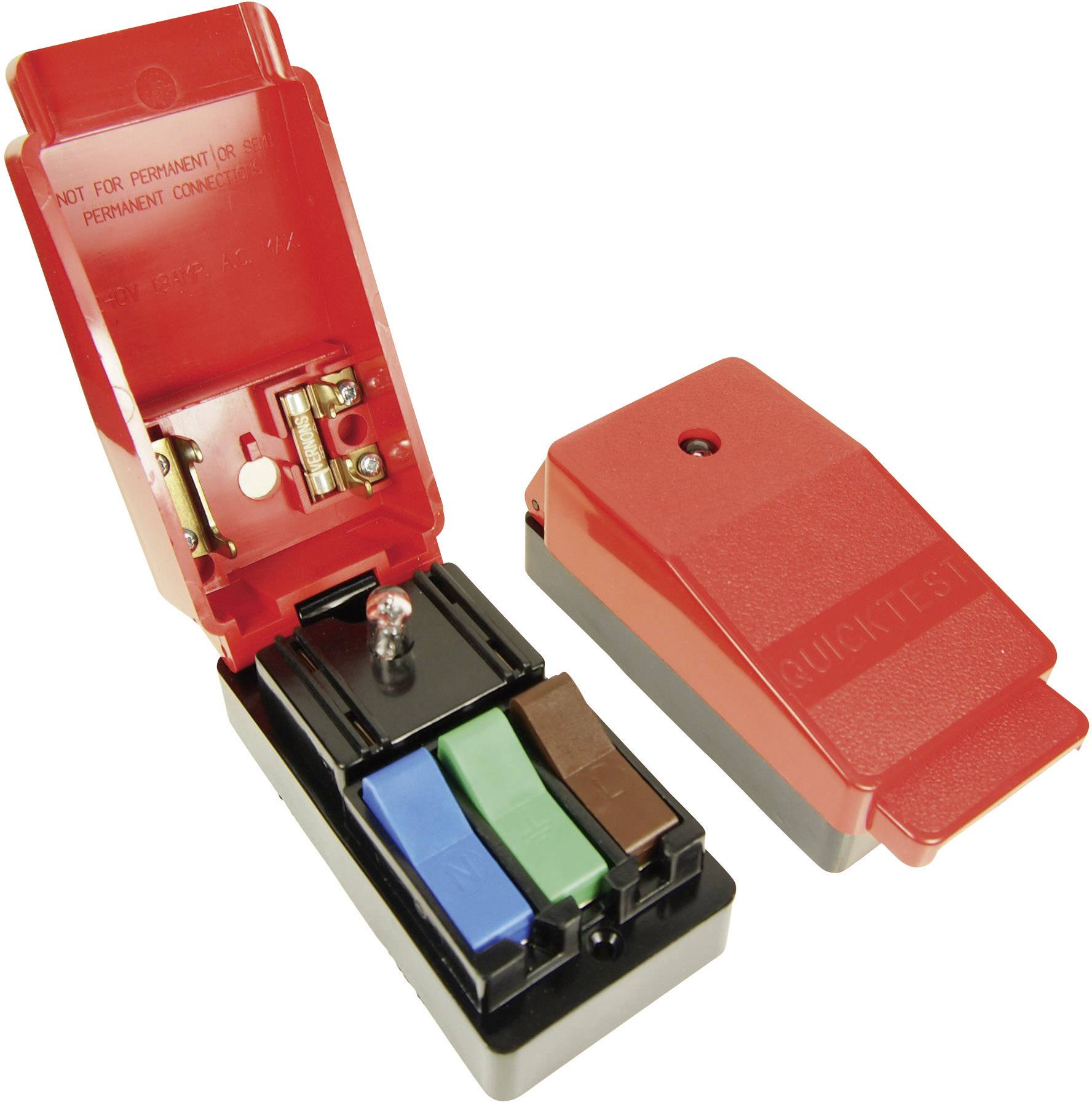

The Cliff CL 1850 test adapter provides a safe and efficient, temporary connection of mains-operated devices to a suitable power source. Ideal for many applications, including laboratories, test benches, repair shops, etc.
This text is machine translated.
This text is machine translated.
Features
- Two pole cut-off the flip cover
- Input screw terminals for connection to a mains cable
- Power indicator with glow lamp
- Spring-operated quick connection terminals at the output.
Hints
Measuring adaptor only for test purposes.
