VOLTCRAFT VMA-3L 16 Test lead adapter CEE plug (5-pin, 16 A) - 4 mm socket Dark grey, Red
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Highlights & Details
Measuring adapter VMA-3L 16
- CEE plug, 16 A
- 4 mm safety sockets;
- Robust design.
- Secure Contact with 16 A CEE socket outlets

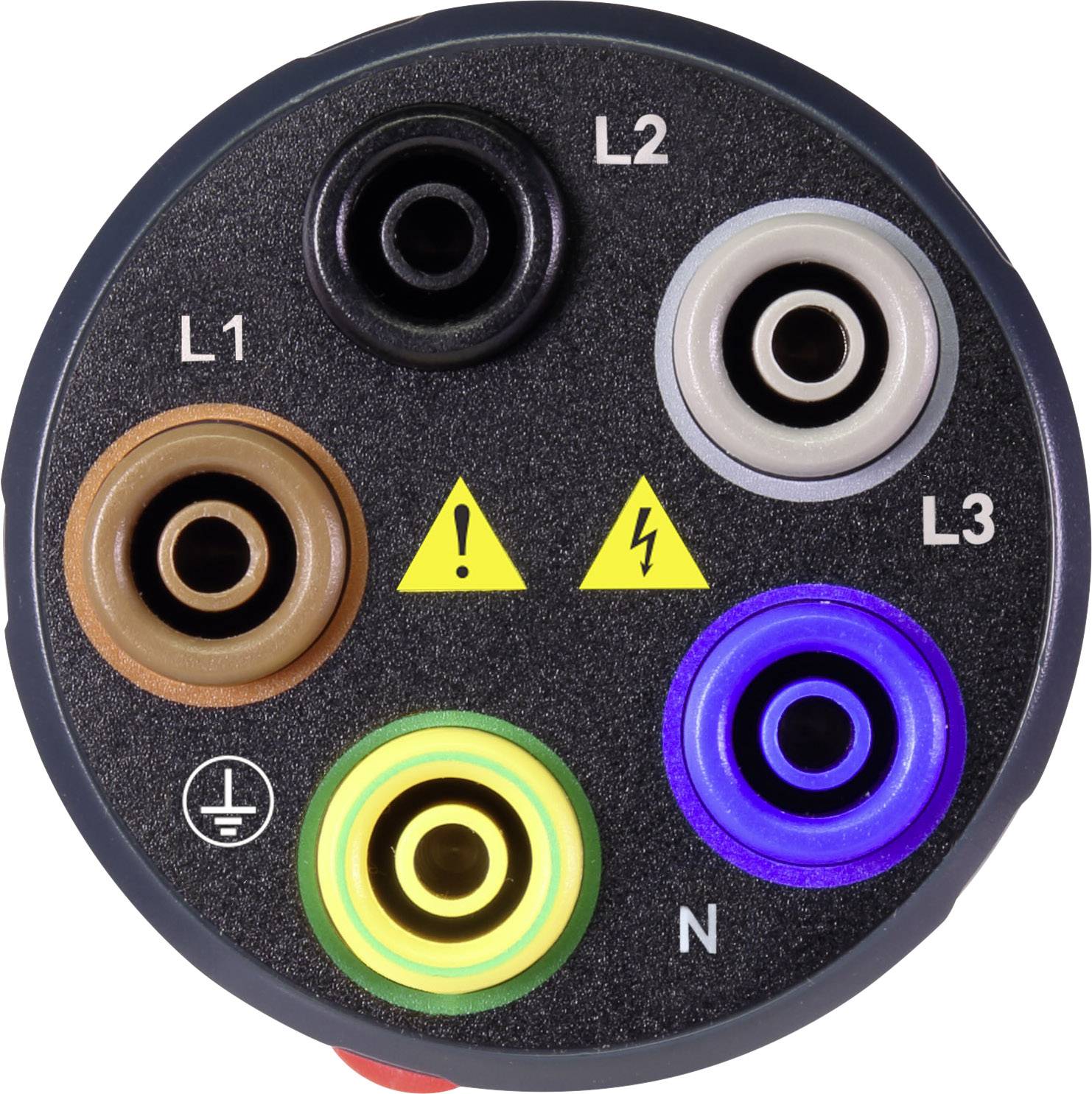

- Connection possibility via five separate 4 mm sockets for L1, L2, L3, N and PE
- VDE 0100 measurements in the three-phase current supply with standard test device
Technical specifications
- Factory colour
Dark grey
Red
- Dim
(L x W x H) 97 x 65 x 65 mm
- Type A

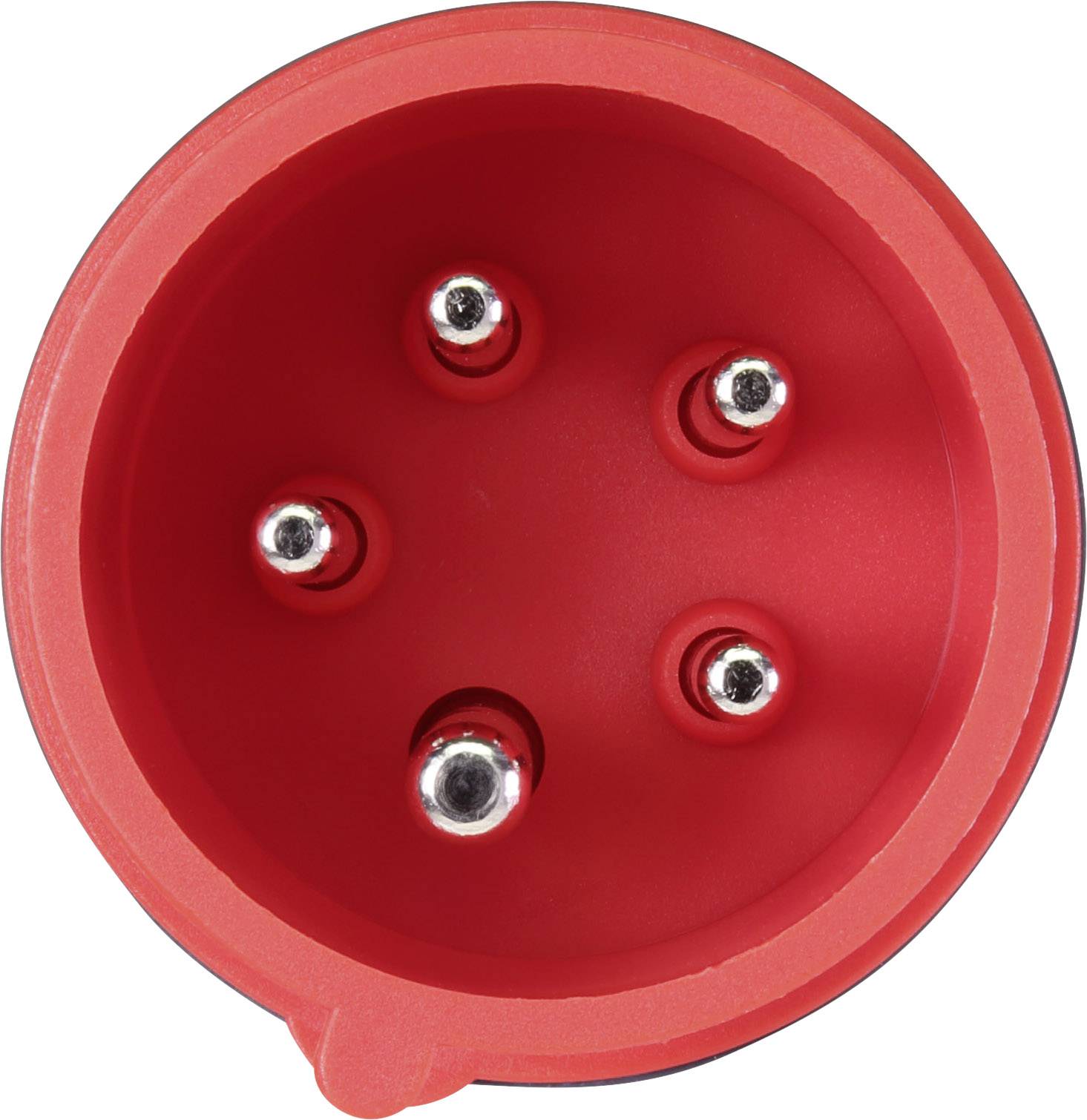

CEE plug (5-pin, 16 A)
- Type B
4 mm socket
- Height
65 mm
- Length
97 mm
- Width
65 mm
- Reading category
CAT II 415 V
- Type
VMA-3L 16
- Nominal current
16 A
- Nominal voltage
415 V AC
- Shaft length
37 mm
- Tip material
Metal
- Clamping range diameter mm
57 mm
- Weight
170 g
- Product type
Test lead adapter
Documents & Downloads
Datasheet
Datasheet 1693251 VOLTCRAFT VMA-3L 16 Test lead adapter CEE plug (5-pin, 16 A) - 4 mm socket Dark grey, Red
User & Safety Instructions
User & Safety Instructions 1693251 VOLTCRAFT VMA-3L 16 Test lead adapter CEE plug (5-pin, 16 A) - 4 mm socket Dark grey, Red
Conformity certificate
Conformity certificate 1693251 VOLTCRAFT VMA-3L 16 Test lead adapter CEE plug (5-pin, 16 A) - 4 mm socket Dark grey, Red
Warranty Terms
Warranty Terms 1693251 VOLTCRAFT VMA-3L 16 Test lead adapter CEE plug (5-pin, 16 A) - 4 mm socket Dark grey, Red
Description
Universal AC adapter, which in conjunction with all the VDE 0100 Test Equipment The following measurements of three-phase power sockets enables: low-impedance of PE, insulation resistance between all active conductors and against PE, line internal resistance, loop impedance, RCD parameters and phase rotation.

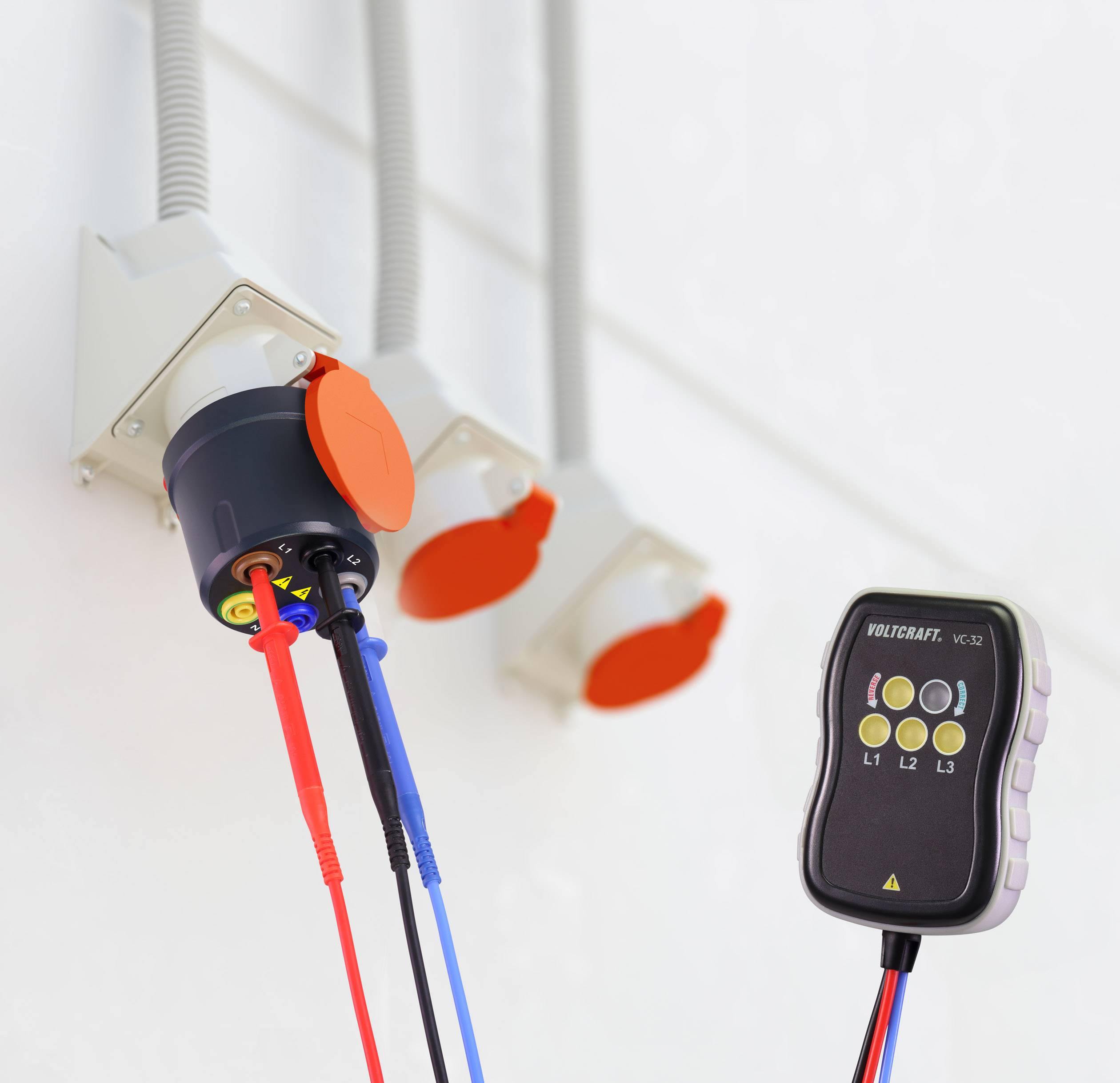

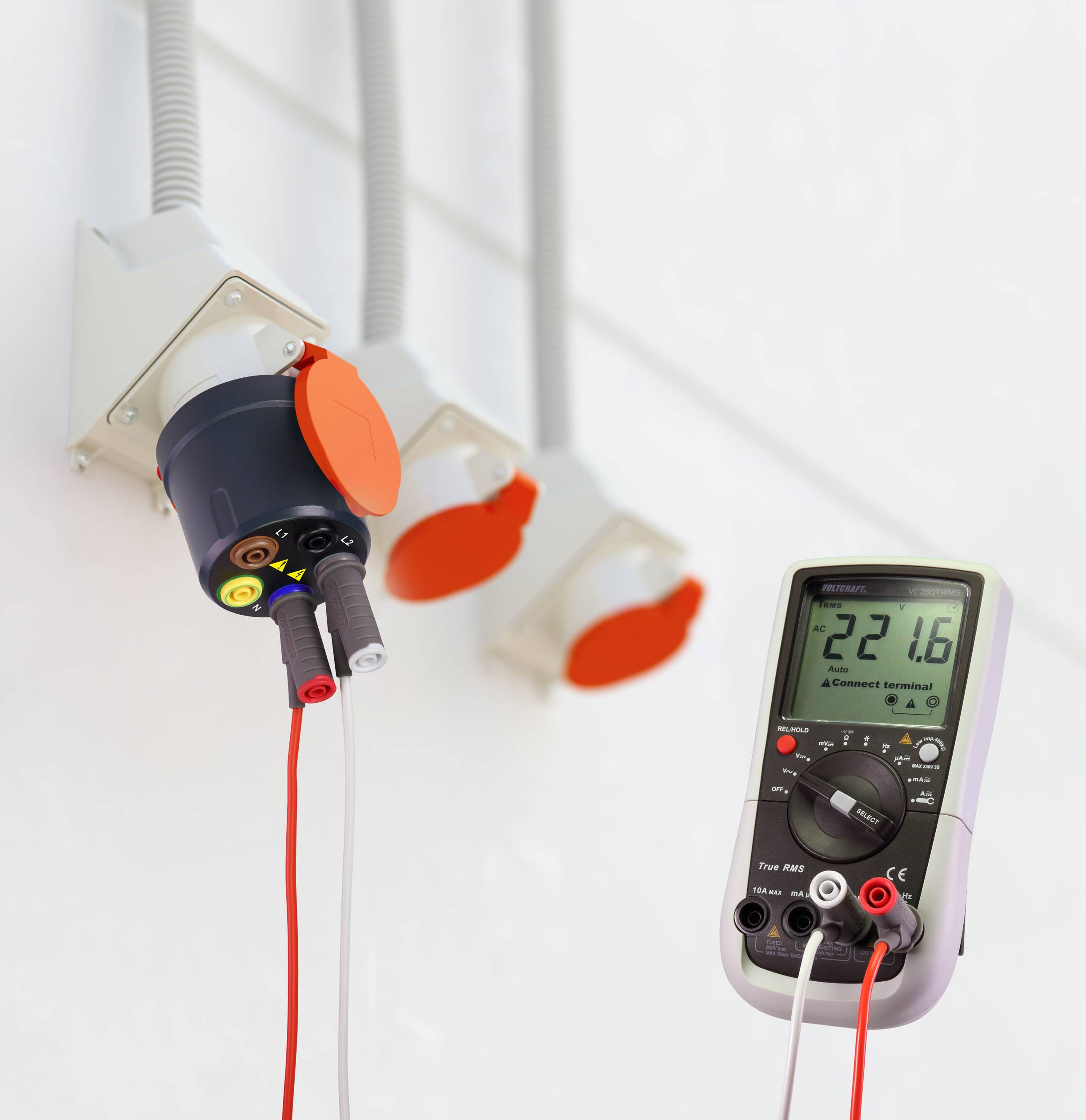

CEE 16 A three-phase plug with implementation on 5 separate 4 mm sockets for L1, L2, L3, N and PE for fast and secure connection of test devices to three-phase power sockets for testing according to DIN VDE 0100 (fixed assets).
This text is machine translated.
CEE 16 A three-phase plug with implementation on 5 separate 4 mm sockets for L1, L2, L3, N and PE for fast and secure connection of test devices to three-phase power sockets for testing according to DIN VDE 0100 (fixed assets).
This text is machine translated.
Features
- Safe and protected against accidental contact contact at 16 A CEE socket outlets
- Connection possibility via five separate 4 mm sockets for L1, L2, L3, N and PE
- VDE 0100 measurements in the three-phase current supply with standard test device
- Robust design.
- Suitable for 4 mm measuring leads
- Suitable for CEE socket 16A.
Scope of delivery
- Measurement adapter
- User manual.
