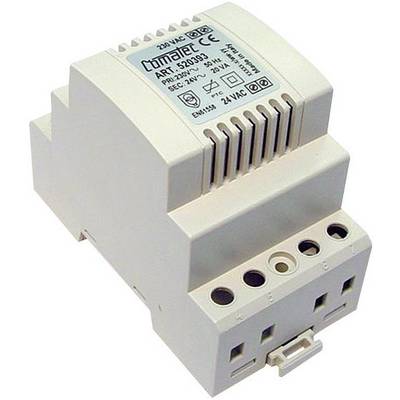

Comatec TBD202024P3 Rail mounted PSU (DIN) 24 V AC 0.83 A 20 VA Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Highlights & Details
Comatec TBD202024P3 Rail mounted PSU (DIN) 24 V AC 0.83 A 20 VA Content 1 pc(s)
- 12 - 75 W
Technical specifications
- EN61558 / EN55022/B
- Nominal input voltage
230 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
207 V AC
- Output voltage
24 V AC
- Input voltage (max.)
253 V AC
- Max. output current
0.83 A
- Output current (max.) - rounded
830 mA
20 VA
- Output voltage (nominal)
24 V AC

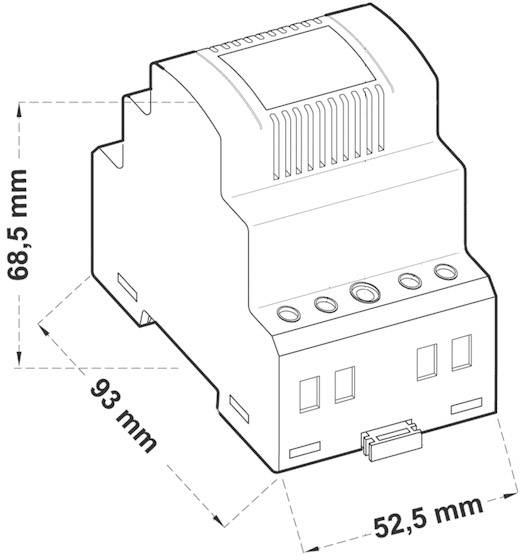

- Dim
(W x H x D) 52.5 x 66.5 x 93 mm
- Output voltage (min.)
22.8 V AC
- Manufacturer part #
TBD202024P3
- Content
1 pc(s)
- Width
52.5 mm
- Height
66.5 mm
- Max. temperature
+40 °C
- Min. temperature
-5 °C
- Type
TBD202024P3
- Depth
93 mm
20 W
- Ambient temperature
-5 - +50 °C
- Input voltage
230 V AC
- Frequency
50 - 60 Hz
- Primary voltage
230 V AC
- Standards
EN61558 / EN55022/B
Documents & Downloads
Datasheet
Datasheet 520393 Comatec TBD202024P3 Rail mounted PSU (DIN) 24 V AC 0.83 A 20 VA Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 520393 Comatec TBD202024P3 Rail mounted PSU (DIN) 24 V AC 0.83 A 20 VA Content 1 pc(s)
Conformity certificate
Conformity certificate 520393 Comatec TBD202024P3 Rail mounted PSU (DIN) 24 V AC 0.83 A 20 VA Content 1 pc(s)
Description
The casing is made of gray ABS plastic.
Hints
Not stabilized.
