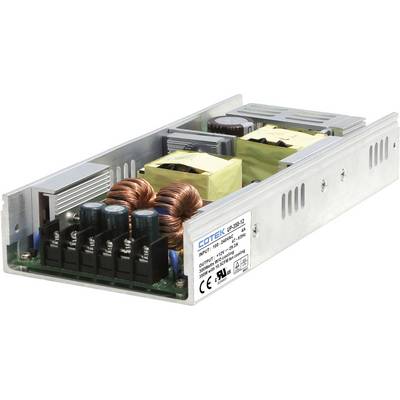

Cotek UP-350-48 SMPSU 48 V DC 6.25 A 300 W
EAN:
Part number:
Item no:
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Highlights & Details
Cotek UP-350-48 SMPSU 48 V DC 6.25 A 300 W
- High-temperature components
- Output can be teleswitched
- High degree of efficiency
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
6.25 A
- Output current (max.) - rounded
6.25 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 231 x 102 x 38 mm
- Output voltage (max.)
48 V DC
300 W
- No. of outputs
3 x
- Output current 1
6.25 A
- Type
open
- Weight
1.06 kg
- Width
102 mm
- Height
38 mm
- Length
231 mm
- Type
UP-350-48
300 W
- Connection
Screw terminals
- PFC
Yes
- Input voltage
90 - 264 V/AC, 127 - 370 V DC
- Interference suppression
EN55022 Class B, EN61204-3, EN61000-6-3
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 513389 Cotek UP-350-48 SMPSU 48 V DC 6.25 A 300 W
Warranty Terms
Warranty Terms 513389 Cotek UP-350-48 SMPSU 48 V DC 6.25 A 300 W
Description
Open installation power supply in compact U-profile with very high power density.
Features
- Active PFC
- Protected against short-circuit, overload and temperature
- High operating temperature up to 65 °C (with derating)
- Power-OK contact
- Vibration-proof up to 2G
- Adjustable output voltage
- Swich-on current limitation
- Fan connection available
- Sense function
- Can be remote controlled (On/Off).
Hints
For the connection is 3 x crimp contact (741112) and 1 x housing (740641) is needed.
