Name: Counttec BT.11 32023 Electricity meter (3-phase) Digital 5 A MID-approved: Yes 1 pc(s)
Brand: Counttec
SKU: 3841213
Availability: BackOrder

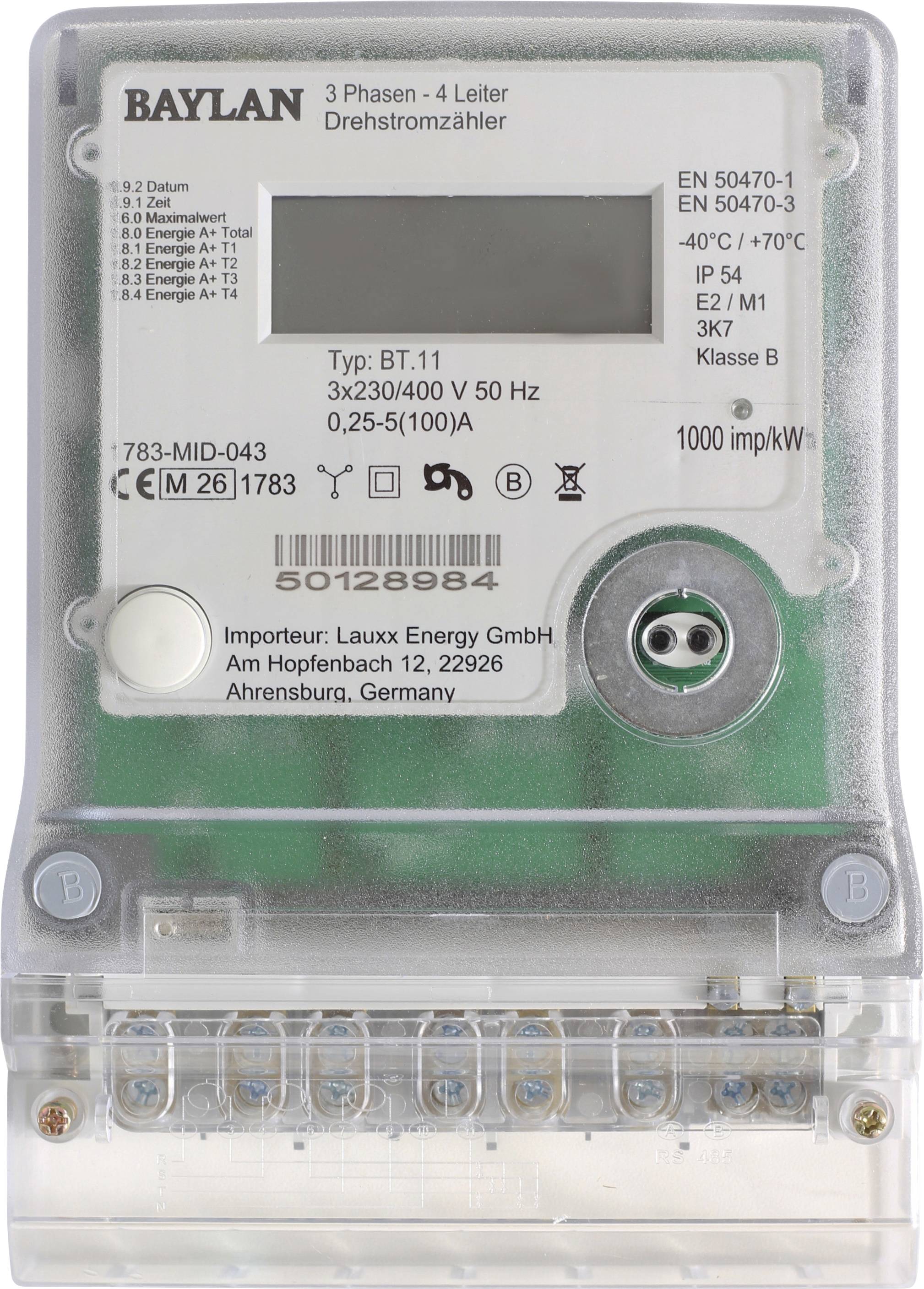

Photo of a Baylan three-phase electricity meter with a blank digital display and visible serial and technical specification labels.

Product type

Electricity meter (3-phase)

Current load

5 A

Display

Digital

Counter type

Electricity meter mount; horizontal 150 mm, vertical 210 / 220 / 230 mm

Operating voltage

400 V AC

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Three-phase meter Baylan valve counter 5(100)A MID calibrated

Replacement for the Ferraris counter, meters mounting, MID certified according to guideline 2014/32/EU

Technical specifications

Connection type/connection type: Direct
Meter constant / pulse rate: 1000 imp/kWh
Pulse output: LED test output, 1000 imp/kWh; linear, permanent lighting without power consumption
Interfaces / communication: IR-interface; Optical: IR-interface according to DIN EN 62056-21
Communication baud rate: 300 to 9600 Bd
Protocol / standard communication: DIN EN 62056-21; communication modes C and A.
Operating temperature: -40 °C to +70 °C
Storage temperature -40 °C to +75 °C.

Counter type: Electricity meter mount; horizontal 150 mm, vertical 210 / 220 / 230 mm

Product type: Electricity meter (3-phase)

Current load: 5 A

Display: Digital

Operating voltage: 400 V AC

Starting current: 20 mA

Frequency: 50 Hz

Accuracy class: A/B

MID-approved: Yes

Reading type: Active energy

Nominal voltage range: 460 up to 172 V AC

Mains voltage (max.): 172 V AC

Mains voltage (min.): 460 V AC

Current (max.): 100 A

Current (min.): 0.25 A

Current range: 0.25 up to 100 A

Type: BT.11

: IP54

Protection class: II

Documents & Downloads

Datasheet

Datasheet 3841213 Counttec BT.11 32023 Electricity meter (3-phase) Digital 5 A MID-approved: Yes 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3841213 Counttec BT.11 32023 Electricity meter (3-phase) Digital 5 A MID-approved: Yes 1 pc(s)

Description

The rotary current counter Baylan BT.11 is MID calibrated according to directive 2014/32/EU, has 0.25-5(100)A, 3x 230/400V, 50Hz and return lock. For mounting counter in accordance with DIN 43857. As a replacement for the conventional Ferrari counters.

This text is machine translated.
