TRU COMPONENTS TC-DRS-205C Modbus MID TC-14232808 Electricity meter Digital 45 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter
Current load
45 A
Display
Digital
Operating voltage
230 VAC
Dim
(L x W x H) 112 x 17.5 x 64 mm
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
14-day return policy included
Highlights & Details

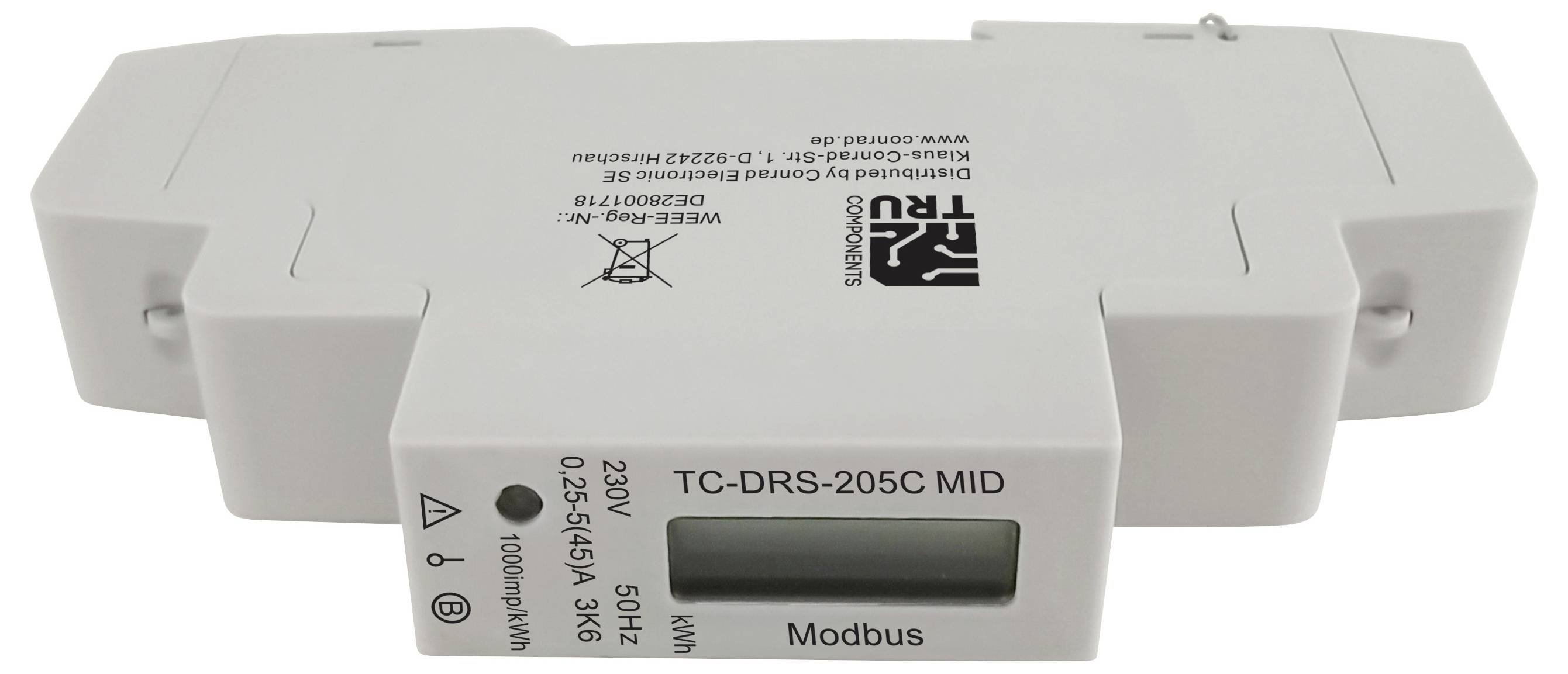

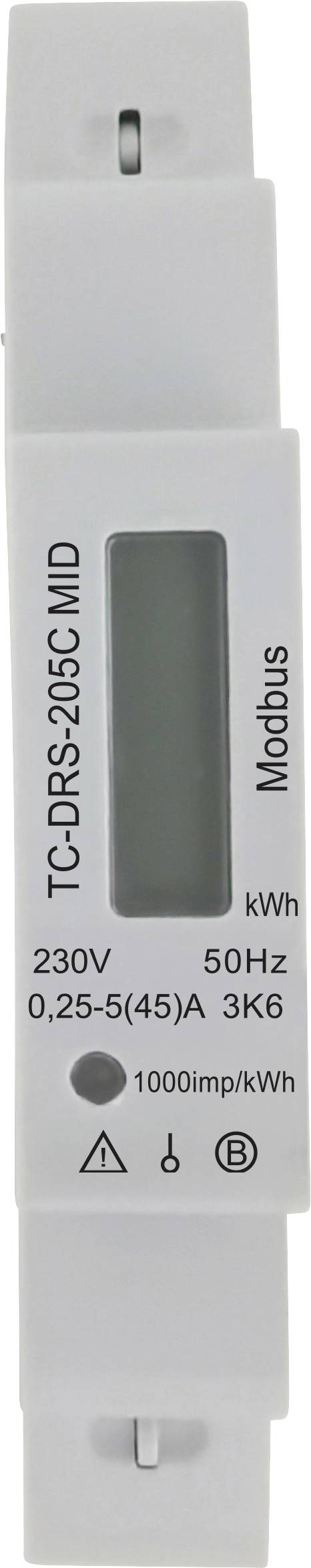

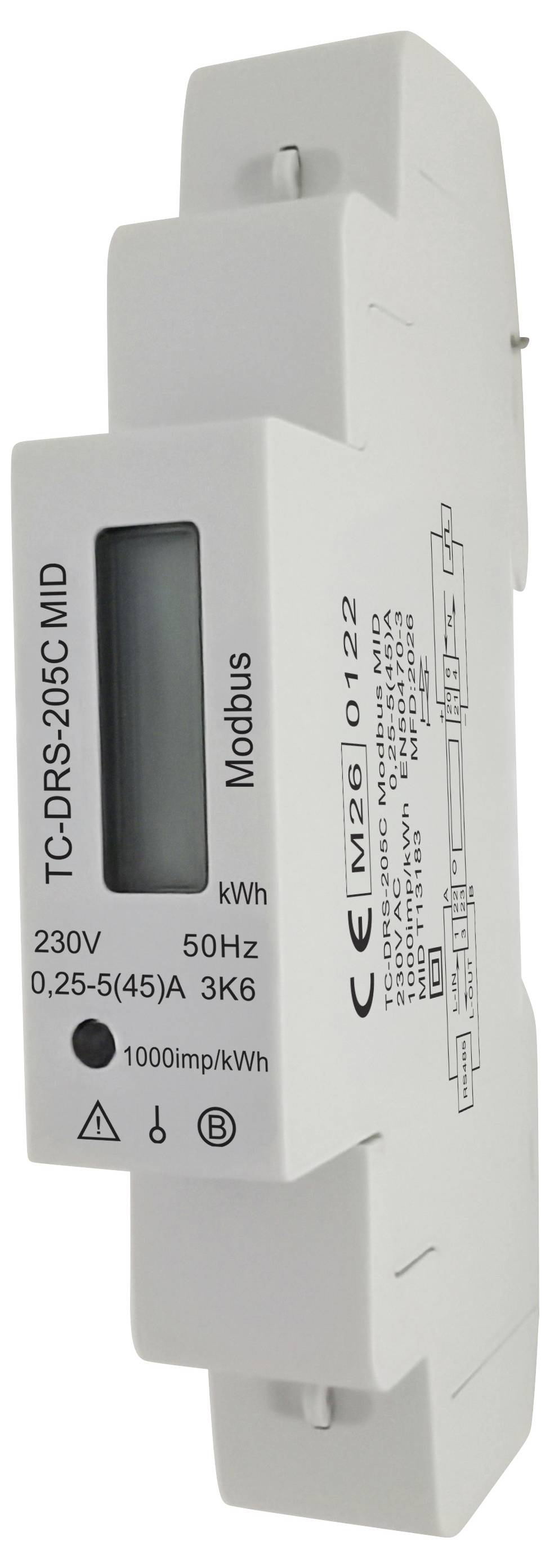

TC-DRS-205C Modbus MID AC meter 45A, Modbus MID-compliant, 230V, 1-phase
- LCD display
- Display kWh: Total kWh, Import kWh, Export kWh
- Digit length: 6+1
- Nominal voltage: 230 VAC
- Current: 5(45) A
- Communication: Modbus RTU
- Single phase
- Display other parameters: V, A, P, F, PF, Meter ID, Baud rate, Serial number
Our service for you
Technical specifications
- Measurement method: Total kWh = Import kWh + Export kWh and display them separately.
- Product type
Electricity meter
- Current load
45 A
- Display
Digital
- Operating voltage
230 VAC
- Dim
(L x W x H) 112 x 17.5 x 64 mm
- Display
LCD
- Display range
999999.9 kWh
- Type
Single phase, 230 VAC, 5(45) A, Modbus RTU, Digital
- Accuracy class
1/B
- MID-approved
Yes
- Width
17.5 mm
- Height
64 mm
- Length
112 mm
- Type
TC-DRS-205C Modbus MID
- Plastic free packaging
Plastic-free packaging
