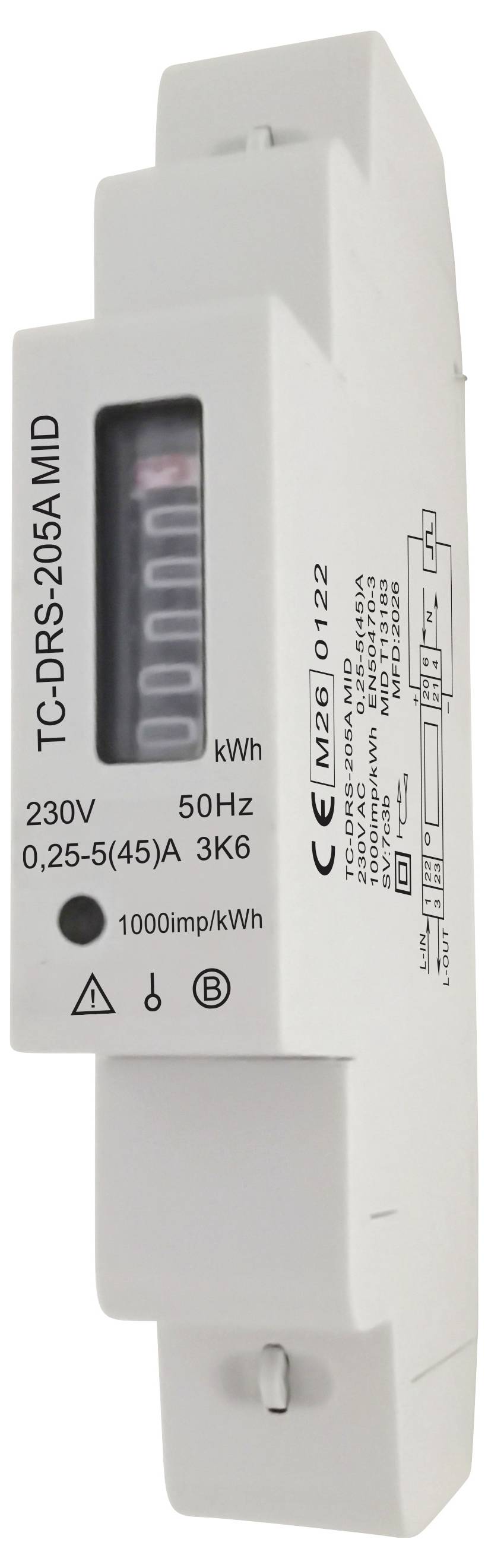

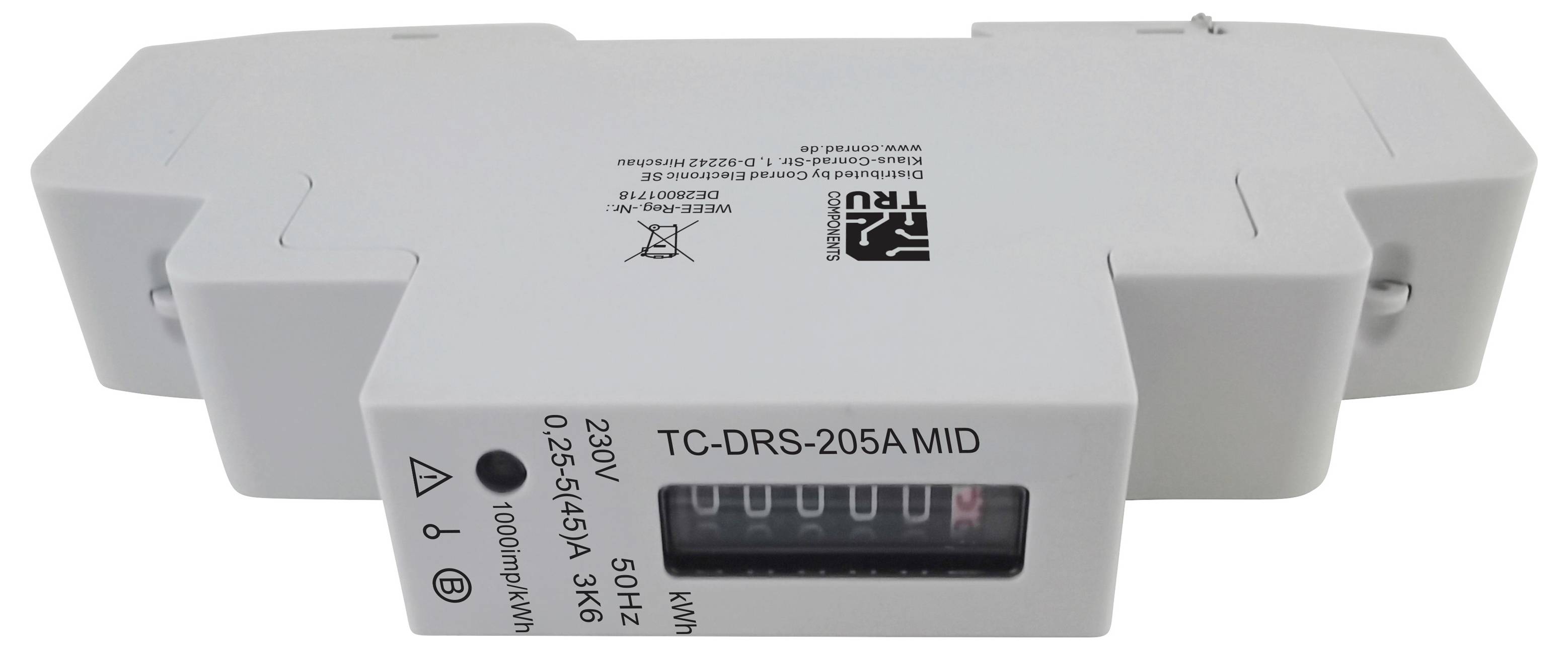

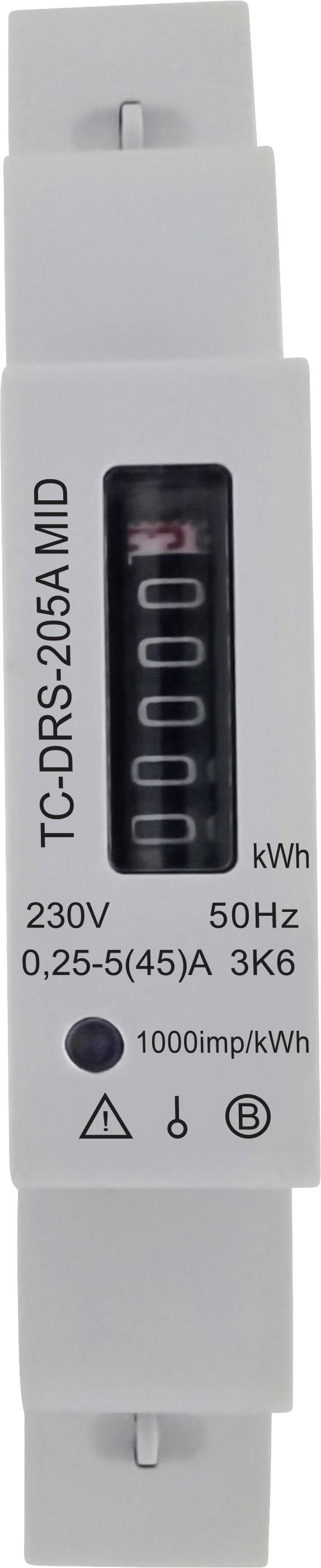

TRU COMPONENTS TC-DRS-205A MID TC-14232820 Electricity meter Analogue 45 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter
Current load
45 A
Display
Analogue
Operating voltage
230 VAC
Dim
(L x W x H) 112 x 17.5 x 64 mm
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
14-day return policy included
Highlights & Details
TC-DRS-205A MID AC meter Mechanical 45A, MID-compliant, 1-phase
- Analog display
- Display kWh: Total kWh
- Digit length: 5+1
- Nominal voltage: 230 VAC
- Current: 5(45) A
- Single phase
Our service for you
Technical specifications
- Measurement method: Total kWh = Import kWh + Export kWh and display Total kWh only.
- Product type
Electricity meter
- Current load
45 A
- Display
Analogue
- Operating voltage
230 VAC
- Dim
(L x W x H) 112 x 17.5 x 64 mm
- Display range
99999.9 kWh
- Type
Single phase, 230 VAC, 5(45) A, Analog
- Accuracy class
1/B
- MID-approved
Yes
- Width
17.5 mm
- Height
64 mm
- Length
112 mm
- Type
TC-DRS-205A MID
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3558205 TRU COMPONENTS TC-DRS-205A MID TC-14232820 Electricity meter Analogue 45 A MID-approved: Yes 1 pc(s)
