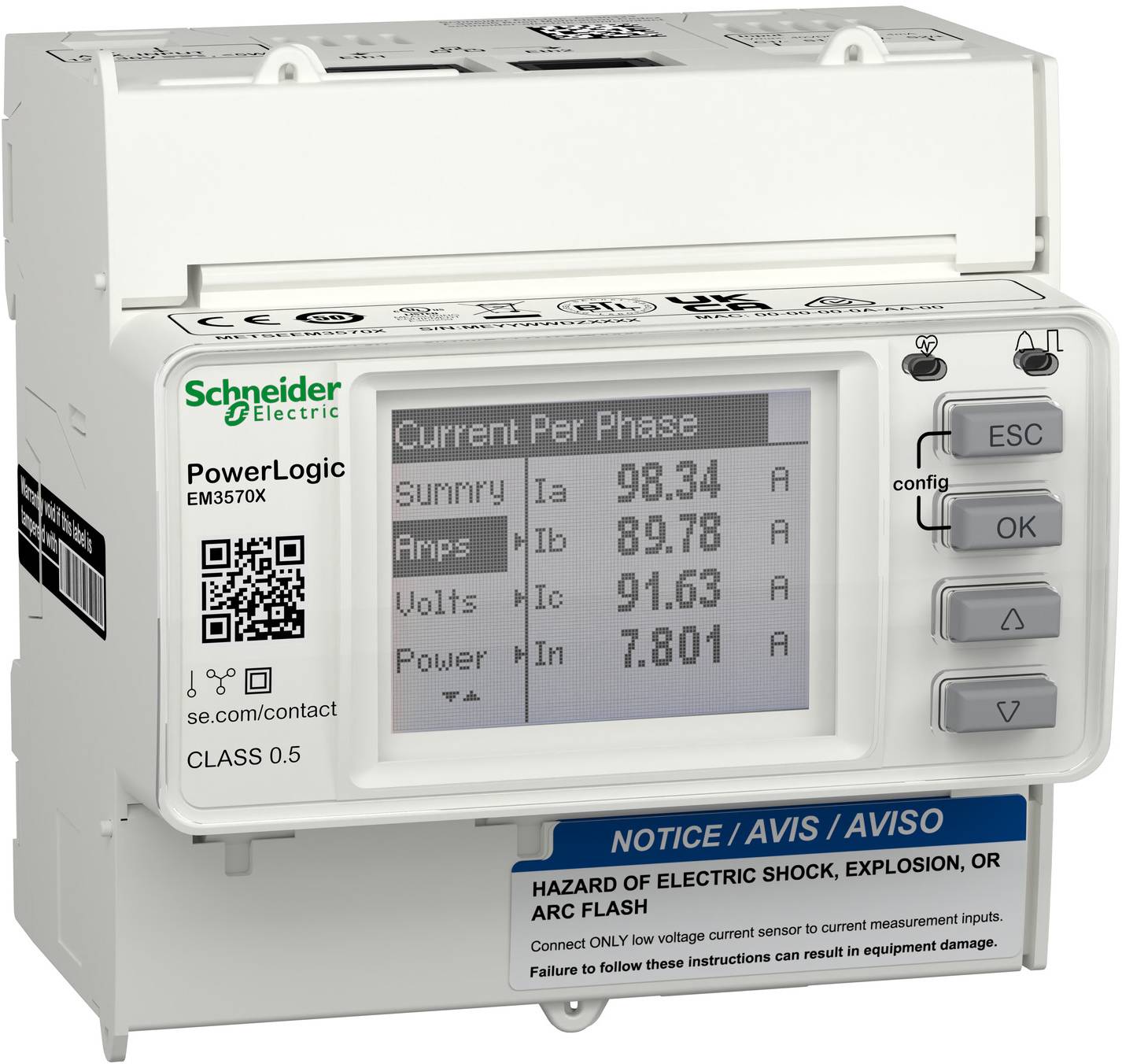

Schneider Electric METSEEM3570X METSEEM3570X Energy logger 1 pc(s)

The EM3570series offers three-phase energy meters for DIN rail mounting, which are suitable for exact cost allocation and partial measurement. The variant EM3570X is designed for use with LVCT (low-voltage transformer) with 0.333V or 1V. Current input from 5A to 32000A, according to the LVCT configuration in the display (current transformers must be designed for use with Class 1 voltage inputs). Bi-directional monitoring supports both upstream and downstream electricity flow, WAS is critical for renewable energy applications. BACnet/IP, Modbus TCP/IP and SNMP are native, together with Dual Ethernet ports for daisy chain for versatile and flexible use. The product must be operated with a 24 VDC supply. Two digital inputs support status monitoring, pulse counting, multi-tariff and partial reset. Relay output for alarm signal. The dimensions of the product are as follows: Width 90 mm, depth 70 mm, height 91 mm. Conforms to the standards IEC 61010-1:2010, UL61010-1:2019, IEC/UL 61010-2-30, CSA C22.2 No. 61010-1-12, CSA C22.2 No. 61010-2-030. The measuring device must be supplied with 24 V DC voltage, a voltage transformer is not included. The PowerLogic EM3570 supports IPv6 and automatic network detection. It has a built-in web page that displays real-time data, peak loads, and alarm status. Designed with cybersecurity in mind, it also enables the complete configuration of all network services.

This text is machine translated.
