Name: Counttec BTK40 670016610 Electricity meter (3-phase) incl. converter jack Digital 5 A MID-approved: Yes 1 pc(s)
Brand: Counttec
SKU: 3841511
Availability: BackOrder

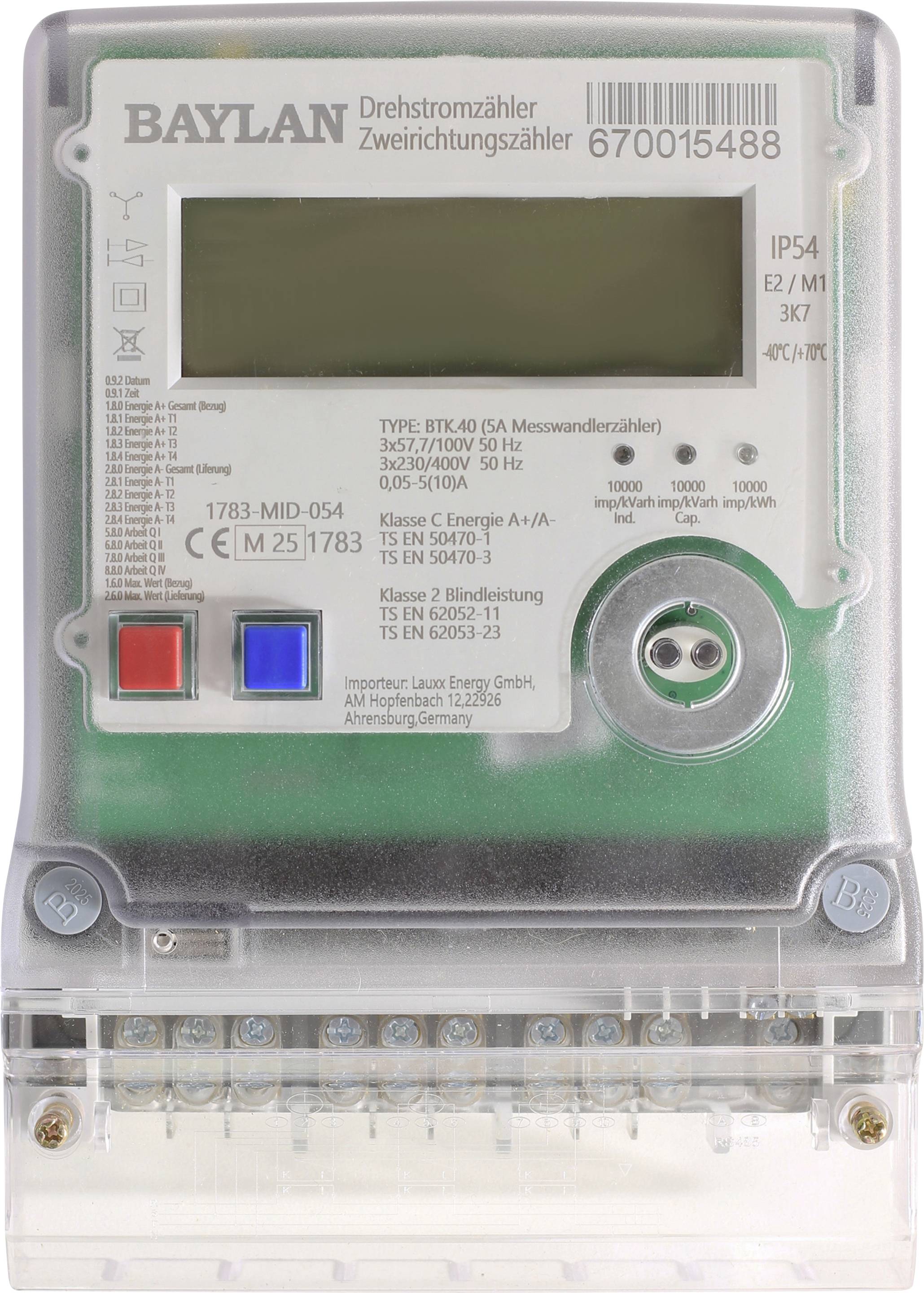

An electric meter with a digital display, labeled BAYLAN, mounted in a clear plastic case with red and blue buttons and terminal connections below.

Product type

Electricity meter (3-phase) incl. converter jack

Current load

5 A

Display

Digital

Operating voltage

400 V AC

Special feature

4 tariffs; 8 time zones can be programmed

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Multifunctional three-phase current counter measuring cross 1(6)A, MID calibrated

Replacement for the Ferraris counter, meters mounting, MID certified according to guideline 2014/32/EU,

Technical specifications

Connection type / connection type: X5
Count constant / pulse rate: 10000 imp/kWh; 10000 imp/kVArh ind.; 10000 imp/kVArh cap.
Interfaces / communication: Optical and RS485
Communication baud rate: 300-19200 baud
Protocol / standard communication: EN 62056-21
Operating temperature -40 °C to +70 °C (3K7)
Storage temperature 0 °C to +30 °C.

Product type: Electricity meter (3-phase) incl. converter jack

Current load: 5 A

Display: Digital

Operating voltage: 400 V AC

Special feature: 4 tariffs; 8 time zones can be programmed

Starting current: 5 mA

Recording time (max.) (details): 180 d

Frequency: 50 Hz

Accuracy class: Active Class C; Reactive Class 2

MID-approved: Yes

Reading type: Active energy

Nominal voltage range: 460 up to 184 V AC

Mains voltage (max.): 184 V AC

Mains voltage (min.): 460 V AC

Current (max.): 10 A

Current (min.): 0.05 A

Current range: 0.05 up to 10 A

Type: BTK40

: IP54

Protection class: II

Documents & Downloads

Datasheet

Datasheet 3841511 Counttec BTK40 670016610 Electricity meter (3-phase) incl. converter jack Digital 5 A MID-approved: Yes 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3841511 Counttec BTK40 670016610 Electricity meter (3-phase) incl. converter jack Digital 5 A MID-approved: Yes 1 pc(s)

Description

The multifunctional three-phase current converter counter BTK40, MID calibrated, DIN matrix holder assembly, LC display, 1(6)A, 3x230/400V (4 conductor), 50Hz, delivery/reference, functionality according to FNN specification EDL V1.2
