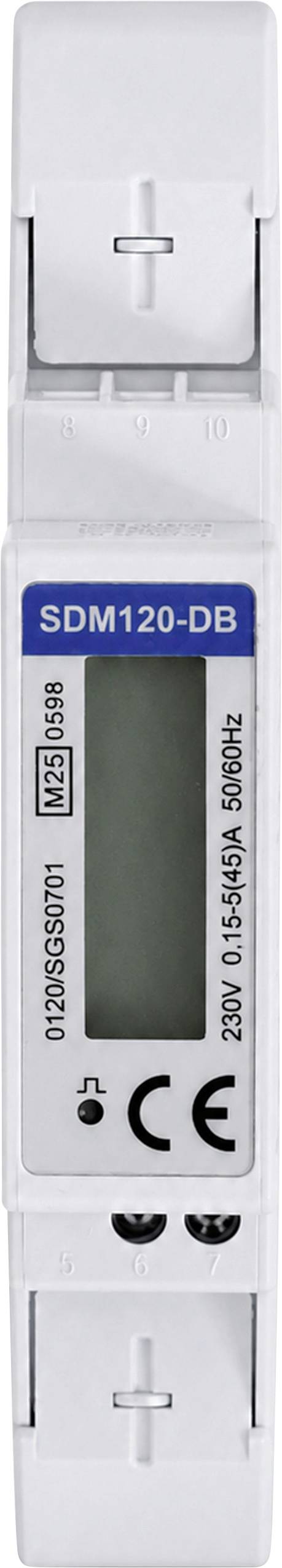

A white DIN-rail electrical module labeled SDM120-DB with a small LCD display, model and certification markings, and terminal connection points.

A white DIN-rail electrical module labeled SDM120-DB with a small LCD display, model and certification markings, and terminal connection points.

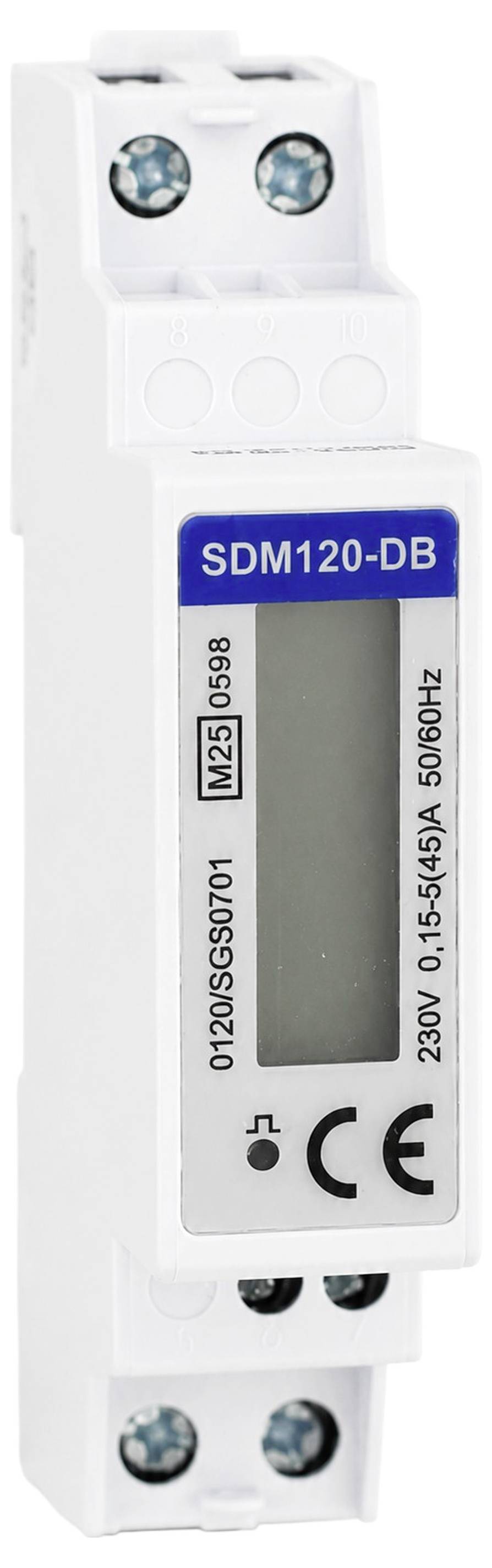

White DIN-rail electrical device labeled 'SDM120-DB' with LCD display, two terminal screws, and CE marking, used for monitoring power on a 230V circuit.

1/2

Product type

Electricity meter (AC)

Current load

5 A

Display

Digital

Counter type

Top hat rail / DIN rail; 1 HP

Operating voltage

230 V AC

Datasheet (PDF)

Counttec

Fast track dispatch on Wed 21 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 45.99 / piece)

€ 45.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Rail-mounted meter 4(45)A, MID calibrated

Backlit LC display, MID calibrated, 1 division unit, with reverse lock

Technical specifications

Connection type / connection type: Direct connection counter
Meter constant / pulse rate: 1000 imp/kWh
Pulse output: S-interface, 1000 imp/kWh
Operating temperature: -20°C to +50 °C
Storage temperature -30 °C to +70 °C

Counter type: Top hat rail / DIN rail; 1 HP

Product type: Electricity meter (AC)

Current load: 5 A

Display: Digital

Operating voltage: 230 V AC

Frequency: 50 Hz

Accuracy class: Class A

MID-approved: Yes

Reading type: Active energy

Current (max.): 45 A

Current range: 45 A (max)

Type: SDM120DB

: IP51

Protection class: II

Documents & Downloads

Datasheet

Datasheet 3841510 Counttec SDM120DB 32006 Electricity meter (AC) Digital 5 A MID-approved: Yes 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3841510 Counttec SDM120DB 32006 Electricity meter (AC) Digital 5 A MID-approved: Yes 1 pc(s)

Description

The alternating current counter SDM120D has an LC-display and is meant for the rail mounting. This direct connection counter for active consumption is MID calibrated, has 5(45)A, 230V, 50Hz, a reverse lock and SO interface.

This text is machine translated.

Description

The alternating current counter SDM120D has an LC-display and is meant for the rail mounting. This direct connection counter for active consumption is MID calibrated, has 5(45)A, 230V, 50Hz, a reverse lock and SO interface.

This text is machine translated.
