Buy CSB Battery GP 12170 Standby USV GP12170I1 VRLA 12 V 17 Ah AGM (W x H x D) 181 x 167 x 76 mm M5 connector Maintenance-fr

Black battery with orange inscription 'CSB GP 12170 12V 17Ah'. Markings indicate voltage, capacity, and country of manufacture.

'Black 12V 17Ah lead-acid battery with warning notices and manufacturer information on the front.'

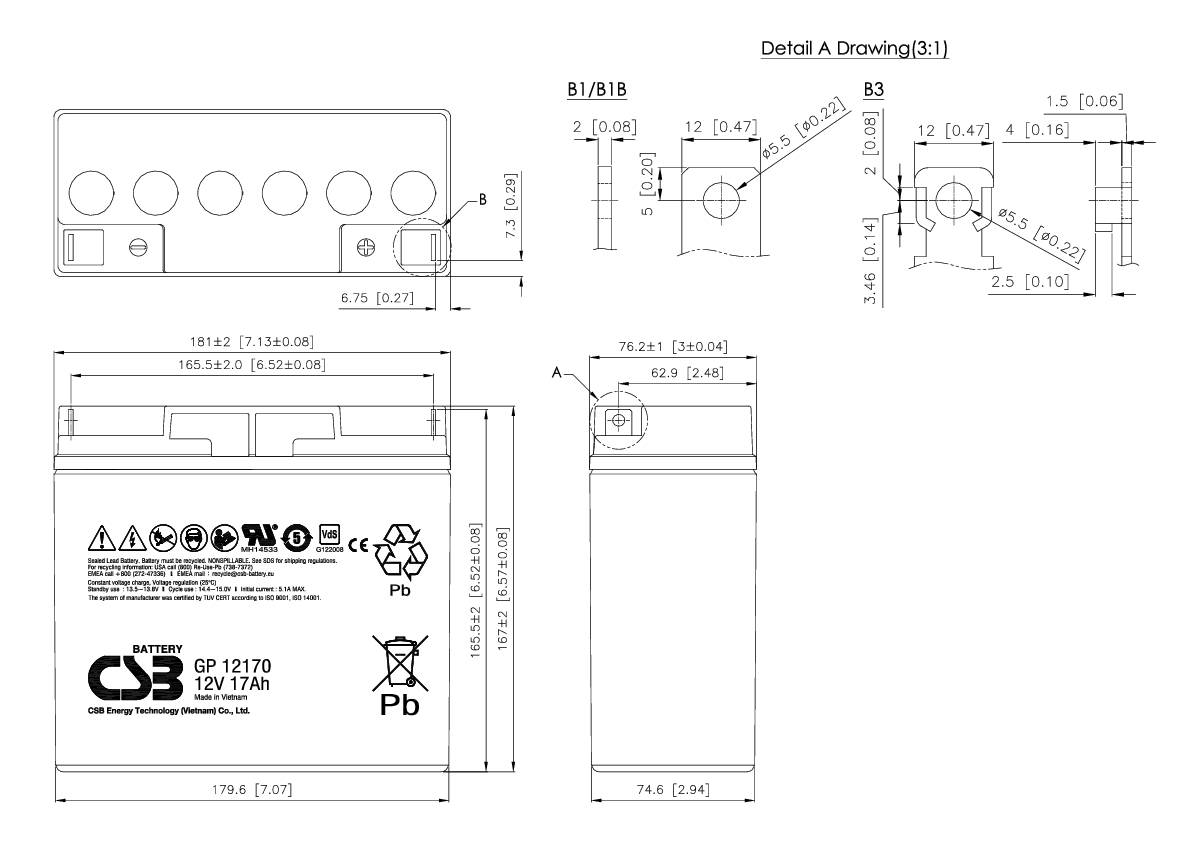

'Technical drawing of a battery, Model GP 12170, 12V, 17Ah. Shows frontal and side dimensions, symbols and connections.'

1/3

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 63.86 / piece)

€ 63.86

plus VAT.

Report legal concerns

Lead-acid battery

Highlights & Details

Maintenance free
High reliability
This text is machine translated.

Technical specifications

Temperature range -15 to +50 oC
Internal resistance 14 mΩ
Max. Discharge current 230 A
Max charging current 5.1 A
ABS casing material

Dim: (W x H x D) 181 x 167 x 76 mm

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 17 Ah

Height: 167 mm

Weight: 5.5 kg

Content: 1 pc(s)

Type: GP 12170 Standby USV

Rechargeable: Yes

Connector: M5 connector

Depth: 76 mm

Width: 181 mm

Features: Maintenance-free
Low self-discharge levels

Pin type: b1

VDS certification: No

Variants(All information is without VAT, plus shipping costs)

Capacity (mAh, Ah)

Voltage

CSB Battery GP 12170 Standby USV GP12170I1 VRLA 12 V 17 Ah AGM (W x H x D) 181 x 167 x 76 mm M5 connector Maintenance-free, Low self-discharge levels

Item no:2247814

This article

17 Ah

12 V

CSB Battery GP 1272 Standby USV GP1272F2 VRLA 12 V 7.2 Ah AGM (W x H x D) 150 x 97 x 65 mm 6.35 mm blade terminal Maintenance-free, Low self-discharge levels, VDS certificate

Item no:1667540

7.2 Ah

12 V

CSB Battery GP 12120 Standby USV GP12120F2 VRLA 12 V 12 Ah AGM (W x H x D) 151 x 100 x 98 mm 6.35 mm blade terminal Maintenance-free, Low self-discharge levels, VDS certificate

Item no:1667541

12 Ah

12 V

CSB Battery GP 645 Standby USV GP645F1 VRLA 6 V 4.5 Ah AGM (W x H x D) 70 x 107 x 48 mm 4.8 mm blade terminal Maintenance-free, Low self-discharge levels

Item no:2289413

4.5 Ah

6 V

CSB Battery GP 672 Standby USV GP672F1 VRLA 6 V 7.2 Ah AGM (W x H x D) 151 x 101 x 34 mm 4.8 mm blade terminal, 6.35 mm blade terminal Maintenance-free, Low self-discharge levels

Item no:2289414

7.2 Ah

6 V

CSB Battery GP 6120 Standby USV GP6120F2 VRLA 6 V 12 Ah AGM (W x H x D) 151 x 101 x 50 mm 4.8 mm blade terminal, 6.35 mm blade terminal Maintenance-free, Low self-discharge levels

Item no:2289415

12 Ah

6 V

CSB Battery GP 1245 Standby USV GP1245F1 VRLA 12 V 4.5 Ah AGM (W x H x D) 93 x 108 x 70 mm 4.8 mm blade terminal, 6.35 mm blade terminal Maintenance-free, Low self-discharge levels

Item no:2289416

4.5 Ah

12 V

CSB Battery GP 1272 Standby USV GP1272F1 VRLA 12 V 7.2 Ah AGM (W x H x D) 151 x 99 x 65 mm 4.8 mm blade terminal Maintenance-free, Low self-discharge levels, VDS certificate

Item no:2289417

7.2 Ah

12 V

CSB Battery GP 12260 Standby USV GP12260B1 VRLA 12 V 26 Ah AGM (W x H x D) 166 x 125 x 175 mm M5 connector Maintenance-free, Low self-discharge levels

Item no:2289418

26 Ah

12 V

CSB Battery GP 12400 Standby USV GP12400B8 VRLA 12 V 40 Ah AGM (W x H x D) 197 x 171 x 165 mm M5 connector Maintenance-free, Low self-discharge levels

Item no:2289419

40 Ah

12 V

Documents & Downloads

Datasheet

Datasheet 2247814 CSB Battery GP 12170 Standby USV GP12170I1 VRLA 12 V 17 Ah AGM (W x H x D) 181 x 167 x 76 mm M5 connector Maintenance-fr

Security datasheet

Security datasheet 2247814 CSB Battery GP 12170 Standby USV GP12170I1 VRLA 12 V 17 Ah AGM (W x H x D) 181 x 167 x 76 mm M5 connector Maintenance-fr

Description

The lead-acid battery GP is the ideal solution for UPS systems, emergency lighting, telecommunication systems, Noteinrichtungen and many other stand-by applications.

This text is machine translated.

Features

Maintenance free
Leak-proof
Insulated seal
Can be used in any position
Life up to 5 years
High reliability - Low self-discharge
Low internal resistance
UL1989-tested
High quality materials
Conforms to IATA/ICAO special requirement A67
Classified according to MG Amendment 27
