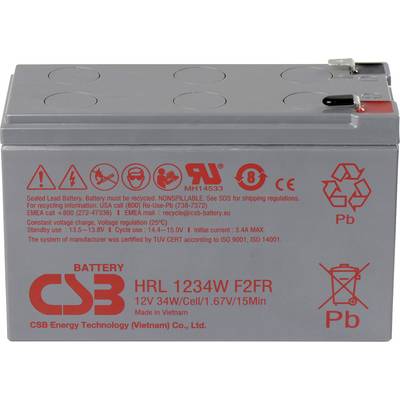

CSB Battery HRL 1234W high-rate longlife HRL1234WF2-FR VRLA 12 V 8.5 Ah AGM (W x H x D) 151 x 94 x 65 mm 6.35 mm blade t
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.08
€ 26.64
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€
Highlights & Details
Lead-acid battery
- High performance and long service life.
- Maintenance-free and resistant to high current
- low flammability
Technical specifications
- Temperature range -15 to +50 °C.
- Internal resistance 17 mΩ
- Max. Discharge current 130 A.
- Charging current 3.4 A max.
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
8.5 Ah
- Height
94 mm
- Weight
2.7 kg
- Content
1 pc(s)
- Type
HRL 1234W high-rate longlife
- Rechargeable
Yes
- Dim
(W x H x D) 151 x 94 x 65 mm
- Depth
65 mm
- Width
151 mm
- Features
Maintenance-free
Low self-discharge levels
- Connector
6.35 mm blade terminal
- Pin type
F2
- Product type
VRLA
Documents & Downloads
Datasheet
Datasheet 2289410 CSB Battery HRL 1234W high-rate longlife HRL1234WF2-FR VRLA 12 V 8.5 Ah AGM (W x H x D) 151 x 94 x 65 mm 6.35 mm blade t
Datasheet 2289410 CSB Battery HRL 1234W high-rate longlife HRL1234WF2-FR VRLA 12 V 8.5 Ah AGM (W x H x D) 151 x 94 x 65 mm 6.35 mm blade t
Security datasheet
Security datasheet 2289410 CSB Battery HRL 1234W high-rate longlife HRL1234WF2-FR VRLA 12 V 8.5 Ah AGM (W x H x D) 151 x 94 x 65 mm 6.35 mm blade t
Description
High-performance lead-acid battery for UPS systems, emergency lighting, fire alarm and security systems. High performance and long life.
This text is machine translated.
This text is machine translated.
Features
- Maintenance free
- Leak-proof
- Insulated seal
- You can use it in any position
- Service life of 8 to 10 years
- High reliability
- Low self discharge
- Flame resistant according to UL 94 V-0
- Low internal resistance
- UL 1989-tested
- High quality materials
- Corresponds to the IATA/ICAO special provision A67
- Classified by MG Amendment 27
