Buy CSB Battery UPS 12460 high-rate UPS12460F2 VRLA 12 V 9.6 Ah AGM (W x H x D) 151 x 99 x 65 mm 6.35 mm blade terminal Main

A rectangular sealed lead-acid battery labeled 'CSB Battery UPS 12460 F2'. It is nonspillable, rated at 12V and 460W/cell for 9.6V/5 minutes.

Black car battery with red symbols and inscriptions, including 'CSB UPS 12460 F2', 12V, manufactured in Vietnam.

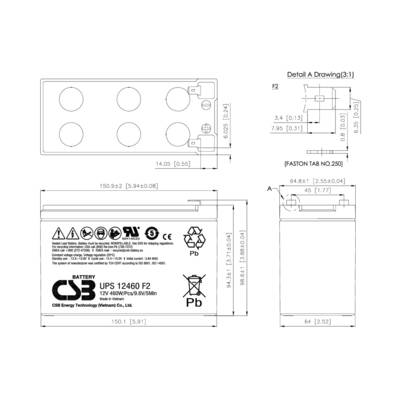

'Technical drawing of a UPS battery. Shows dimensions and connection details, including FASTON terminal.'

1/3

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

952 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 25.20 / piece)

€ 25.20

plus VAT.

Report legal concerns

Lead-acid battery

Highlights & Details

Innovative thin plate technology
Maintenance-free and resistant to high current
low flammability

Technical specifications

Temperature range -15 to +50 °C.
Internal resistance 16.6 mΩ
Max. Discharge current 450 A.
Max. charging current 3.8 A

Dim: (W x H x D) 151 x 99 x 65 mm

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 9.6 Ah

Height: 99 mm

Weight: 2.5 kg

Content: 1 pc(s)

Type: UPS 12460 high-rate

Rechargeable: Yes

Connector: 6.35 mm blade terminal

Depth: 65 mm

Width: 151 mm

Features: Maintenance-free
Low self-discharge levels

Pin type: F2

Documents & Downloads

Datasheet

Datasheet 2247816 CSB Battery UPS 12460 high-rate UPS12460F2 VRLA 12 V 9.6 Ah AGM (W x H x D) 151 x 99 x 65 mm 6.35 mm blade terminal Main

Security datasheet

Security datasheet 2247816 CSB Battery UPS 12460 high-rate UPS12460F2 VRLA 12 V 9.6 Ah AGM (W x H x D) 151 x 99 x 65 mm 6.35 mm blade terminal Main

Description

The lead-acid battery UPS was special for applications with a high degree of efficiency. Innovative thin plate technology for optimized performance and high Effizients. Ideal for UPS systems, emergency lighting, fire alarm and security systems.

This text is machine translated.

Features

Maintenance free
Innovative thin plate technology
Leak-proof
Insulated seal
You can use it in any position
Service life up to 5 Years
High reliability
Low self discharge
Flame resistant according to UL 94 V-0
Low internal resistance
UL 1989-tested
High quality materials
Corresponds to the IATA/ICAO special provision A67
Classified by MG Amendment 27
