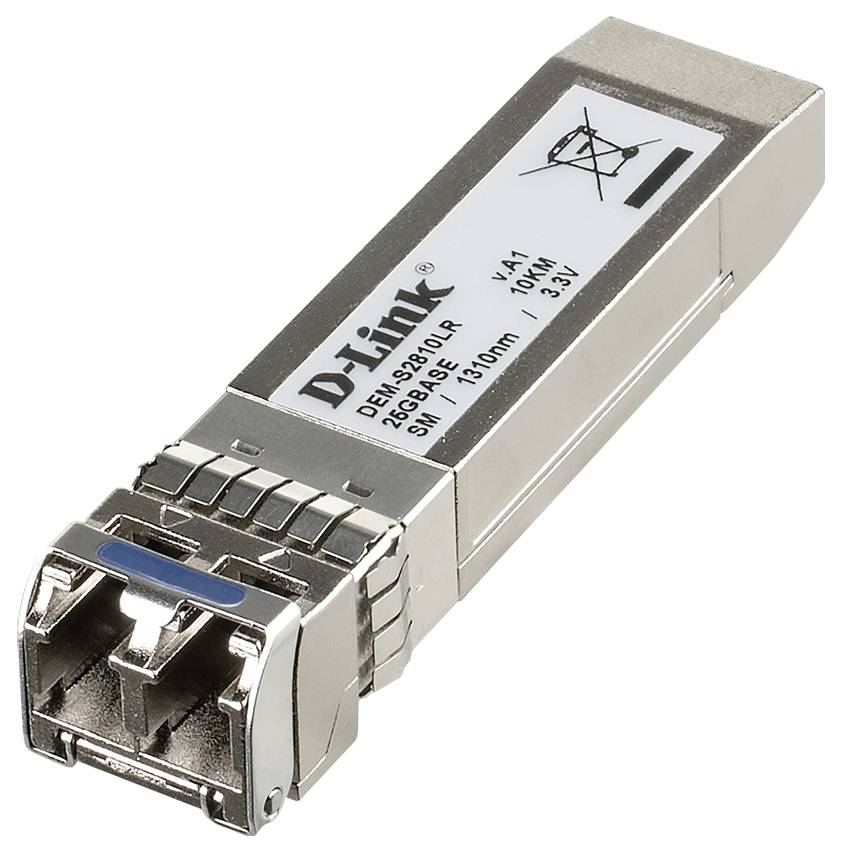

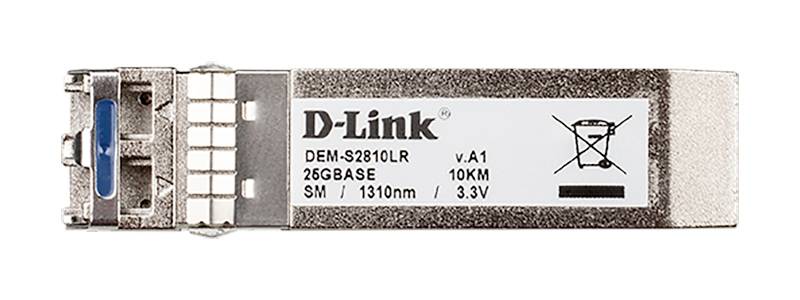

D-Link DEM-S2810LR DEM-S2810LR Transceiver board 25 GBit/s 10 km Module type LR
EAN:
Part number:
Item no:
Number
Total (€ 684.87 / piece)
€ 684.87
plus VAT.
D-Link DEM-S2810LR network transceiver module fiber optics 25000 Mbit/s SFP28 1310 nm
Highlights & Details
- Supports data transfer rates of 25 Gbit/s.
- Operating temperature range from 0 °C to 70 °C.
- Hot-swappable design for flexible installation
- Meets key standards, including FCC and RoHS
- Maximum transmission distance of 10 km.
Technical specifications
- Maximum data transfer rate of 25000 Mbit/s.
- Interface SFP28
- Product type
Transceiver board
- Transfer rate
25 GBit/s
- Module type
LR
- Distances up to
10 km
- Depth
13.7 mm
- Height
8.5 mm
- Width
57.3 mm
LC
- Load (max.)
0.3 A
- Input voltage
3.3 V
- Weight
25 g
- UKCA
not relevant
- Operating temperature (T-T)
0 - 70 °C
- Storage relative humidity (H-H)
5 - 95 %
- Wavelength
1310 nm
- Hot-Plug support
yes
- Single-mode fiber (SMF) supported
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 85 °C
- Maximum transfer distance
10000 m
- Tx power (max)
2 dBmW
- Tx power (min)
-5 dBmW
- Rx power (min)
-13.3 dBmW
- Rx power (max)
0.5 dBmW
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763535 D-Link DEM-S2810LR DEM-S2810LR Transceiver board 25 GBit/s 10 km Module type LR
Description
The D-Link S2810LR was developed to improve network performance with its functions. This SFP28 transceiver module supports a data transfer rate of 25 Gbps, ensuring efficient data flow for demanding applications. With its operational reliability in different environments, it can be used in a temperature range from 0 °C to 70 °C and can withstand a humidity level of 5 to 95%.
Thanks to its plug-in module form factor, the S2810LR can be installed easily and is hot-swappable, WAS provides flexibility in system management. This transceiver meets several standards, including FCC, RoHS and MSA, and is therefore a reliable choice for networking solutions. It also offers a maximum transmission distance of 10 km via a single-mode connection with LC-plugs and thus ensures a robust connection for a large network range.
This text is machine translated.
Thanks to its plug-in module form factor, the S2810LR can be installed easily and is hot-swappable, WAS provides flexibility in system management. This transceiver meets several standards, including FCC, RoHS and MSA, and is therefore a reliable choice for networking solutions. It also offers a maximum transmission distance of 10 km via a single-mode connection with LC-plugs and thus ensures a robust connection for a large network range.
This text is machine translated.
Scope of delivery
- DEM-S2810LR
