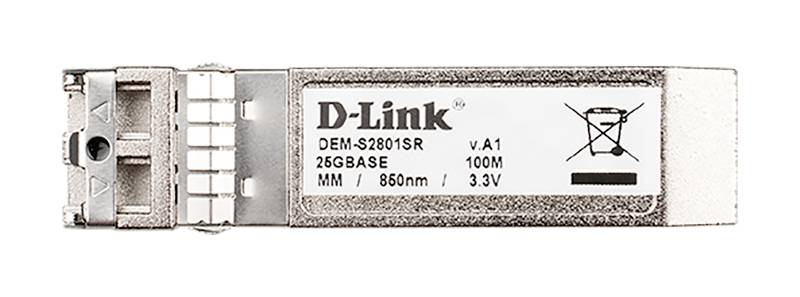

D-Link DEM-S2801SR DEM-S2801SR Transceiver board 25 GBit/s 100 m Module type SR
EAN:
Part number:
Item no:
Number
Total (€ 234.45 / piece)
€ 234.45
plus VAT.
Only 2 Piece(s) available
D-Link DEM-S2801SR network transceiver module Fibre optic 25000 Mbit/s SFP28 850 nm
Highlights & Details
- 25 Gbit/s data transfer rate for high-speed networks
- Hot-swap function provides for minimum downtime
- Supports a maximum transmission distance of 100 m.
- Conforms to several standards, including IEEE 802.3by and RoHS
- Efficient operation over a wide temperature and humidity range
Technical specifications
- Maximum data transfer rate of 25000 Mbit/s.
- Interface SFP28
- Product type
Transceiver board
- Transfer rate
25 GBit/s
- Module type
SR
- Distances up to
100 m
- Depth
13.7 mm
- Height
8.5 mm
- Width
57.3 mm
LC
- Load (max.)
0.3 A
- Input voltage
3.3 V
- Weight
25 g
- UKCA
not relevant
- Operating temperature (T-T)
0 - 70 °C
- Storage relative humidity (H-H)
5 - 95 %
- Wavelength
850 nm
- Hot-Plug support
yes
- Multi-mode fiber (MMF) supported
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 85 °C
- Maximum transfer distance
100 m
- Tx power (max)
2.4 dBmW
- Tx power (min)
-9.1 dBmW
- Rx power (min)
-11 dBmW
- Rx power (max)
2.4 dBmW
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763534 D-Link DEM-S2801SR DEM-S2801SR Transceiver board 25 GBit/s 100 m Module type SR
Description
The D-Link THE S2801SR SFP28 transceiver module was developed to meet the needs of modern networks. With a data transfer rate of 25 Gbps and support for Ethernet 25GBase-SR cabling, it is a suitable solution for improving the performance and reliability of your network. This module is hot-swappable, WAS allows easy maintenance without significant downtime, and has a large operating temperature and humidity range that ensures stable operation in different environments. With compliance with a wide range of standards, including IEEE 802.3by, EN 60825 and RoHS, the D-Link is a versatile and reliable choice for upgrading your network infrastructure.
This text is machine translated.
This text is machine translated.
Scope of delivery
- DEM-S2801SR
