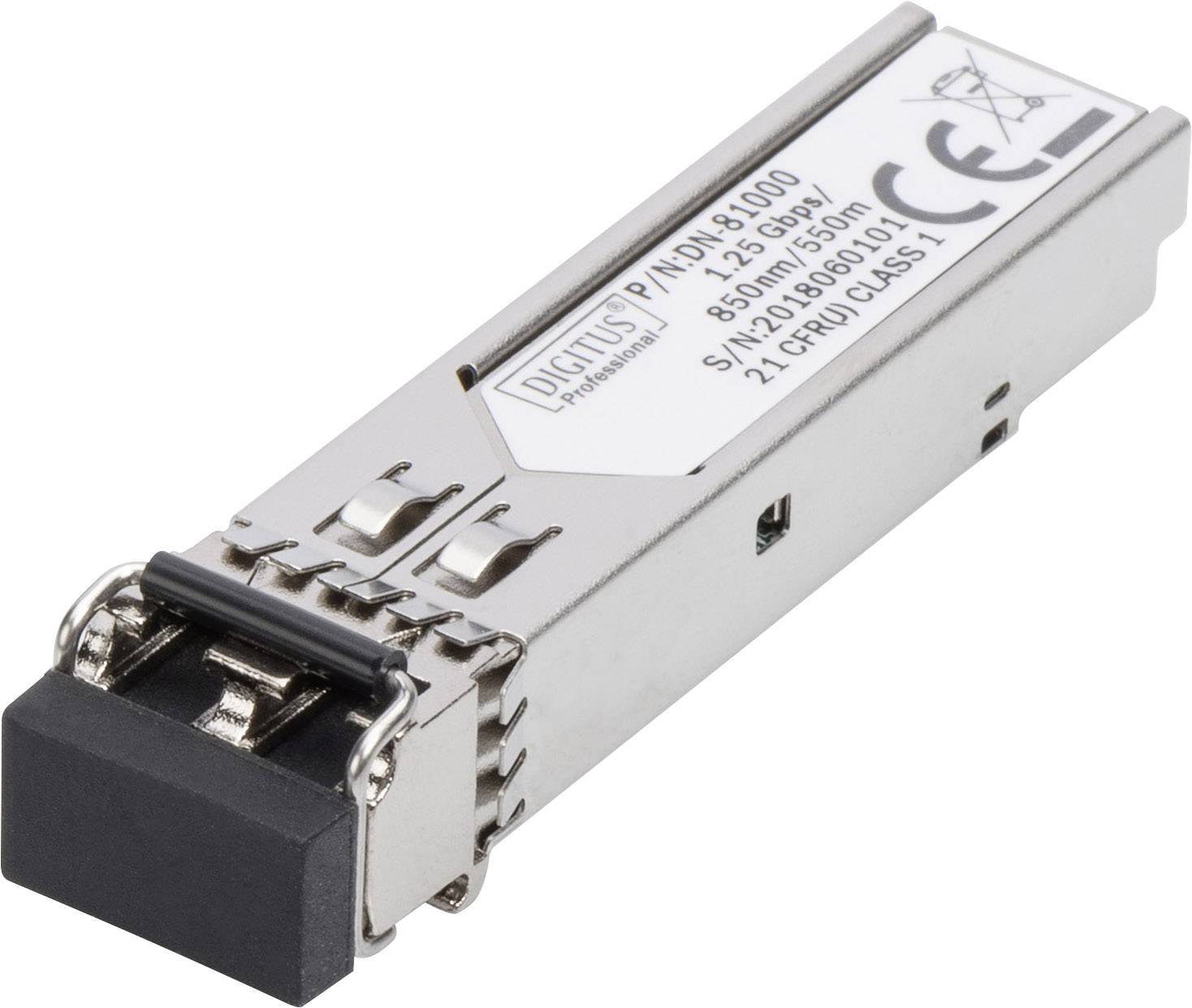

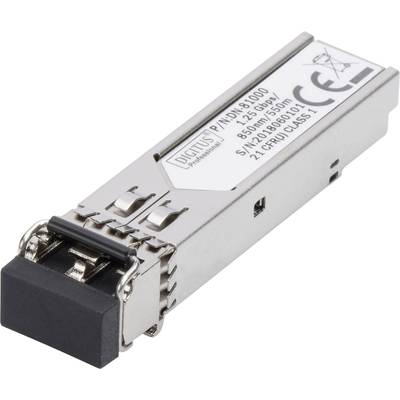

Digitus DN-81000 DN-81000 SFP transceiver module 1 GBit/s 550 m Module type SX
EAN:
Part number:
Item no:
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
mini GBIC (SFP) Module, 1.25 Gbps, 0.55km
Highlights & Details
- The plug and play fiber connection
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 0,55km at a maximum data rate of 1.25Gbps
Technical specifications
- Product type
SFP transceiver module
- Transfer rate
1 GBit/s
- Interfaces
LC
- Module type
SX
- Distances up to
550 m
- Version
Adapter
- Factory colour
Multicolour
- Cable use
FO
- Connection type
Fibreglass
- Weight
40.00
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1007874 Digitus DN-81000 DN-81000 SFP transceiver module 1 GBit/s 550 m Module type SX
Conformity certificate
Conformity certificate 1007874 Digitus DN-81000 DN-81000 SFP transceiver module 1 GBit/s 550 m Module type SX
Description
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
· Mini GBIC SFP (Small Form Factor Pluggable) module
· Compatible with the following manufacturers: Allied Telesis, Allnet, CISCO, Dell, D-Link, Edimax, Hirschmann, Huawei, Intellinet, KTI Networks, Level One, Linksys, Netgear, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE
· High quality and excellent reliability
· 1.25 Gbps Maximum Data Rate
· Compliant to IEEE 802.3z Gigabit Standard
· Class 1 laser product compliant with EN 60825-1
· Easy plug-and-play installation
· MSA (Multi Source Agreement) compliant
· Hot pluggable
· Connector: 1x LC Duplex
· 1000Base-SX - For Short Haul
· Wavelength: 850nm
· Transmission power: minimum -8 dBm, maximum -3 dBm
· Sensitivity Receiving Power: Minimum -20 dBm
· For a Distance of up to 0.55km
· Suitable for 50/125µm and 62.5/125µm multimode fiber cables
· Safe fast-locking mechanism
· 3.3V power supply
· Mini GBIC SFP (Small Form Factor Pluggable) module
· Compatible with the following manufacturers: Allied Telesis, Allnet, CISCO, Dell, D-Link, Edimax, Hirschmann, Huawei, Intellinet, KTI Networks, Level One, Linksys, Netgear, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE
· High quality and excellent reliability
· 1.25 Gbps Maximum Data Rate
· Compliant to IEEE 802.3z Gigabit Standard
· Class 1 laser product compliant with EN 60825-1
· Easy plug-and-play installation
· MSA (Multi Source Agreement) compliant
· Hot pluggable
· Connector: 1x LC Duplex
· 1000Base-SX - For Short Haul
· Wavelength: 850nm
· Transmission power: minimum -8 dBm, maximum -3 dBm
· Sensitivity Receiving Power: Minimum -20 dBm
· For a Distance of up to 0.55km
· Suitable for 50/125µm and 62.5/125µm multimode fiber cables
· Safe fast-locking mechanism
· 3.3V power supply
Features
- Complies with the IEEE 802.3z Gigabit Standard
- Class 1 laser product according to EN60825-1
- Easy Plug and Play installation.
Scope of delivery
- SFP module
