Dasqua 1801-1005 Digital Zero Setting Devices IP65 Height: 50 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Technical specifications
- Height: 50 mm
- Product type
Meter main unit
- Length
100 mm
- Power supply (details)
3 V Lithium battery CR2032
- Weight
0.65 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2986825 Dasqua 1801-1005 Digital Zero Setting Devices IP65 Height: 50 mm 1 pc(s)
User & Safety Instructions 2986825 Dasqua 1801-1005 Digital Zero Setting Devices IP65 Height: 50 mm 1 pc(s)
Description
For quick adjustment of the length of cutting tools for CNC machine.

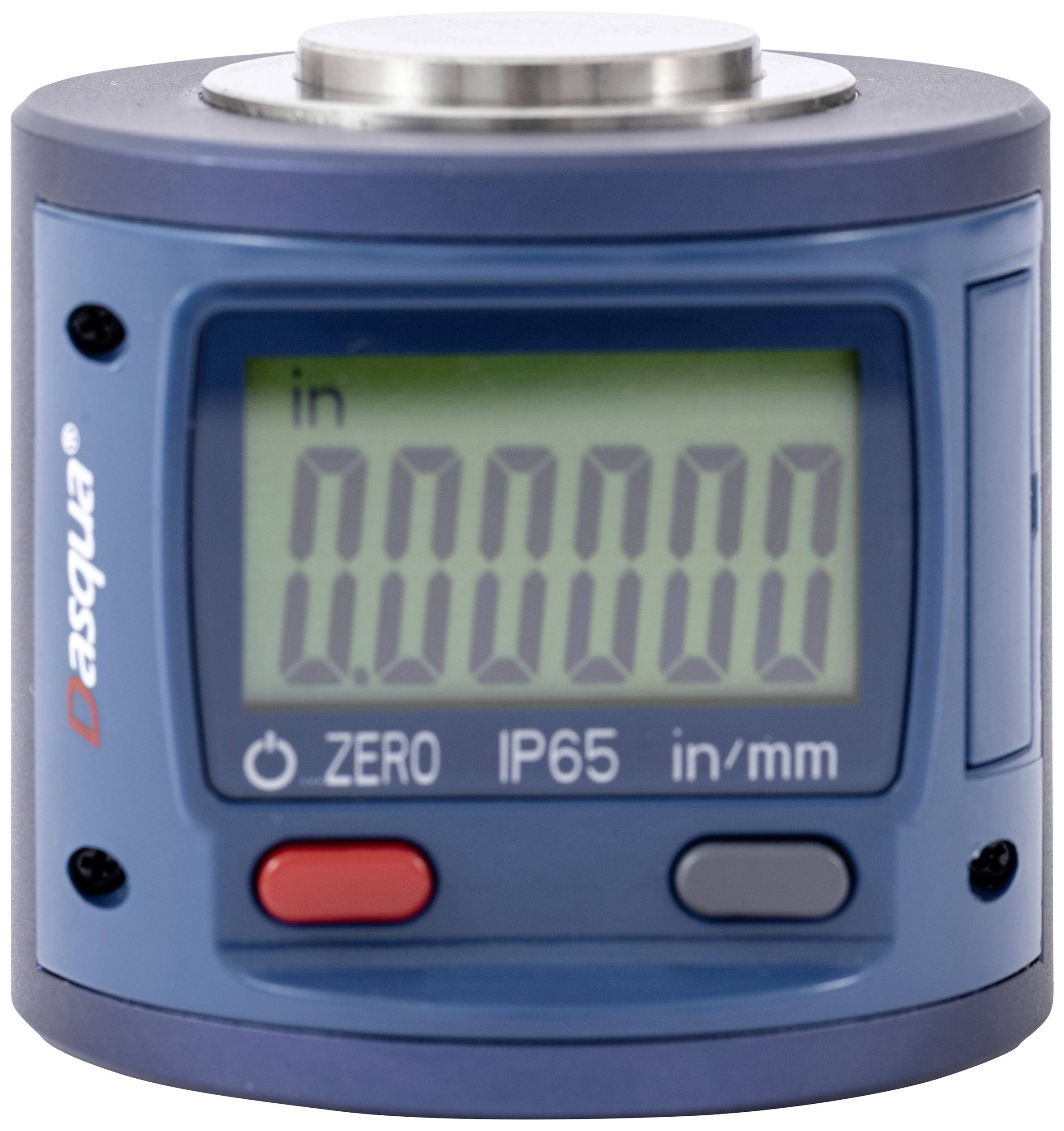

The digital zero adjuster has an integrated digital display.
25 mm measuring surface and less spring forces to prevent damage to the tool edges.
Inductive chips of the 4th Generation, IP65 protection (waterproof).
Up to 0.001 mm resolution, more sensitive than the conventional types with dial.

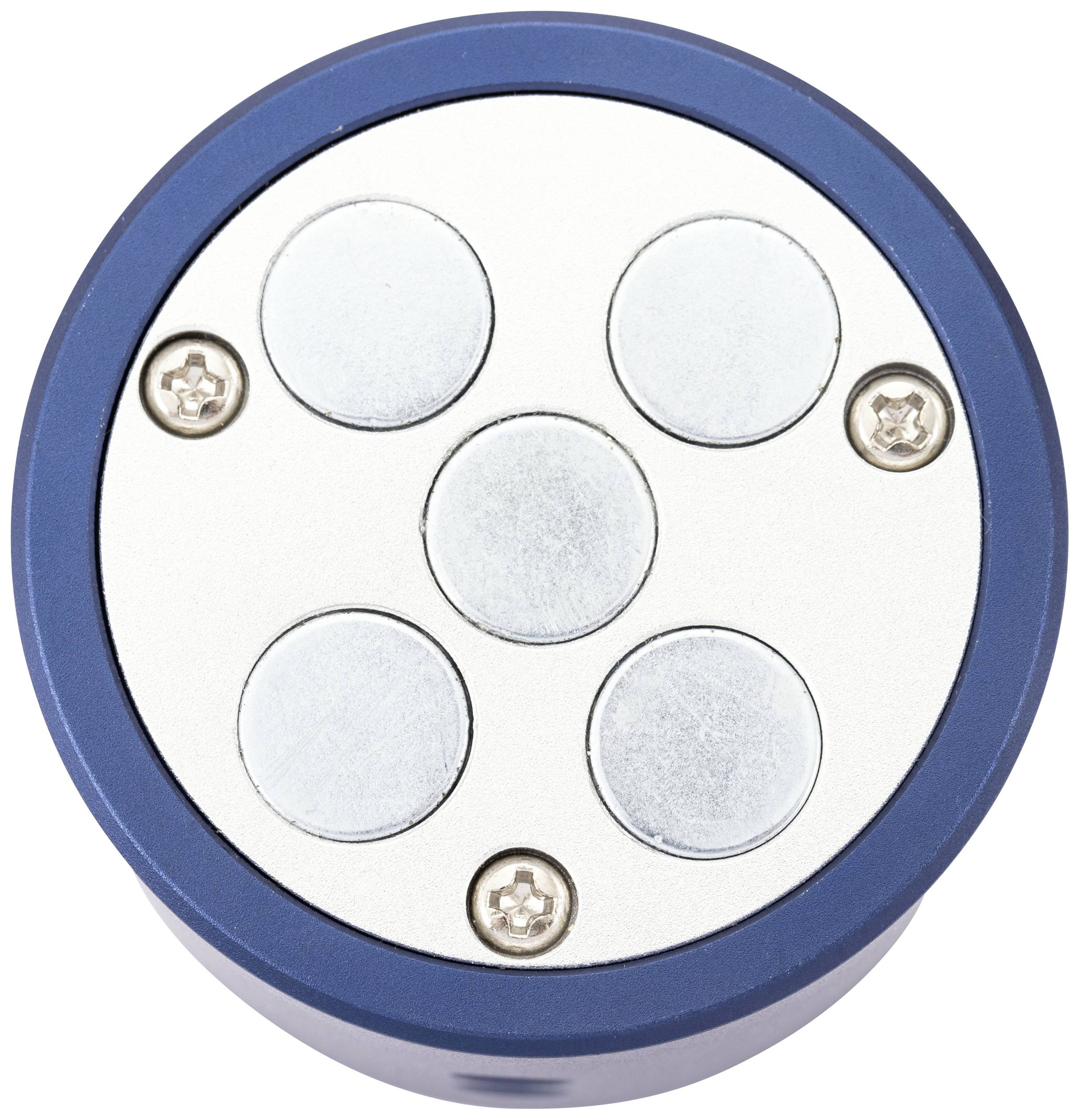

Magnetic base for attaching the digital zero setter to the machine; reduces the tool setup time.
IP65 waterproof grade, suitable for factory and workshops.
The digital zero adjuster has an integrated digital display.
25 mm measuring surface and less spring forces to prevent damage to the tool edges.
Inductive chips of the 4th Generation, IP65 protection (waterproof).
Up to 0.001 mm resolution, more sensitive than the conventional types with dial.
Magnetic base for attaching the digital zero setter to the machine; reduces the tool setup time.
IP65 waterproof grade, suitable for factory and workshops.
Features
- "0" indicator reminds the operator of the position of the cutting tools
- High accuracy (±0.002 mm)
- High repeatability (0.003 mm)

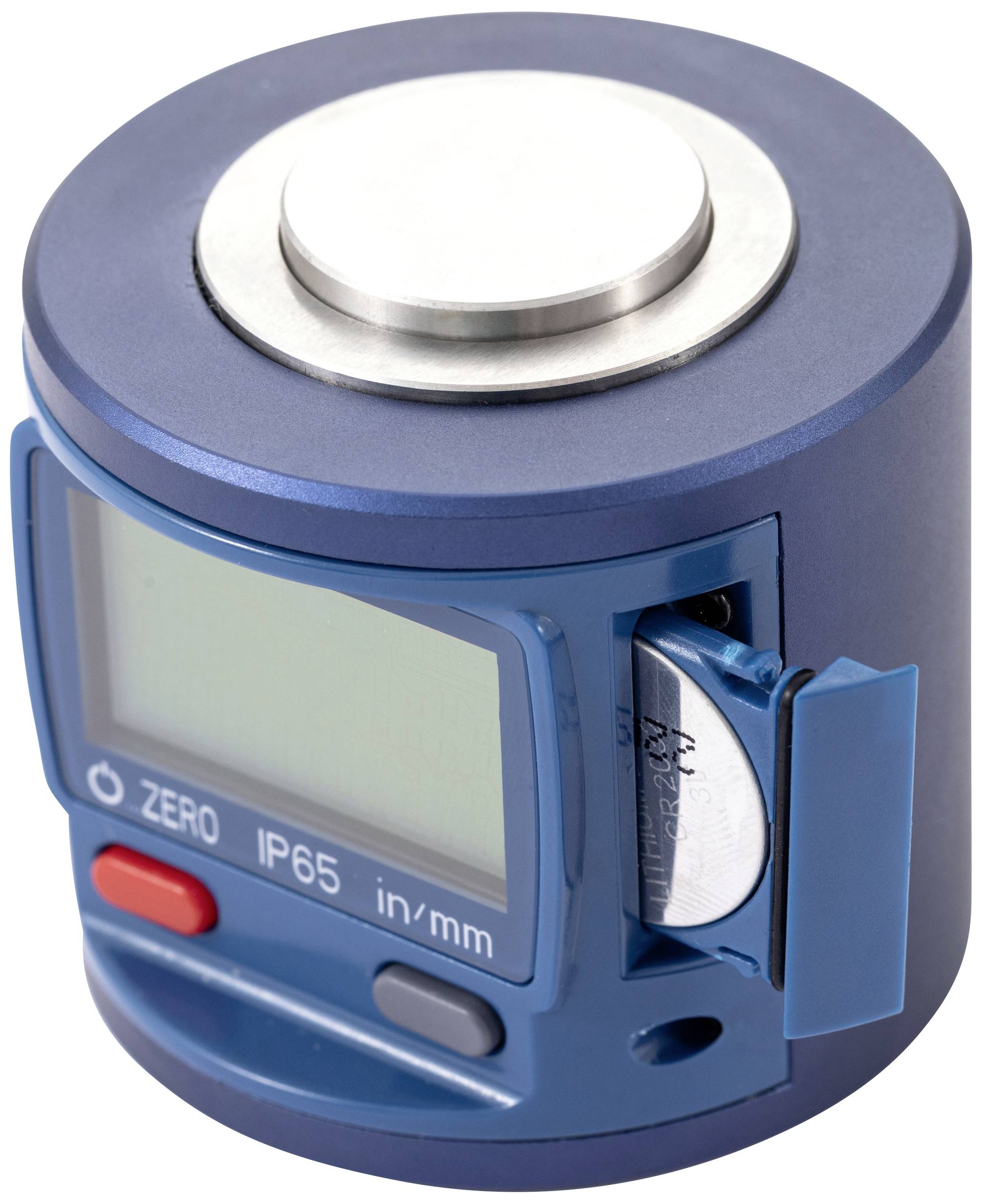

- 3V CR2032 lithium battery

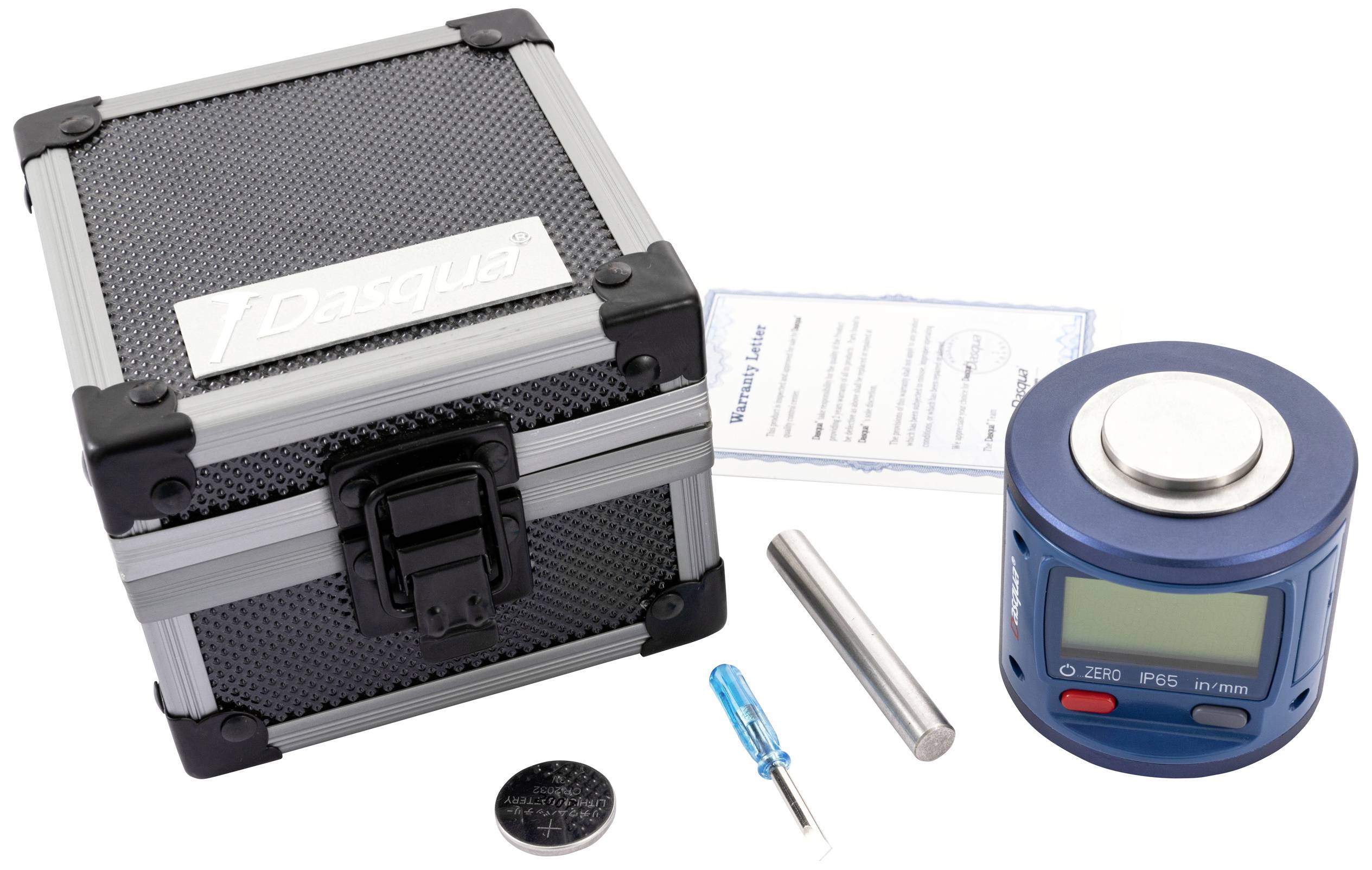

Scope of delivery
- Digital zero setting device (1x battery installed)
- Screwdriver for battery replacement
- Back up battery (CR2032, 210 mAh)
- Calibration rod for device setting zero
- Aluminum case
