Buy Dehner Elektronik ATS 120A1-P480 AC/DC bench/mains PSU 48 V DC 2.5 A 120 W Regulated

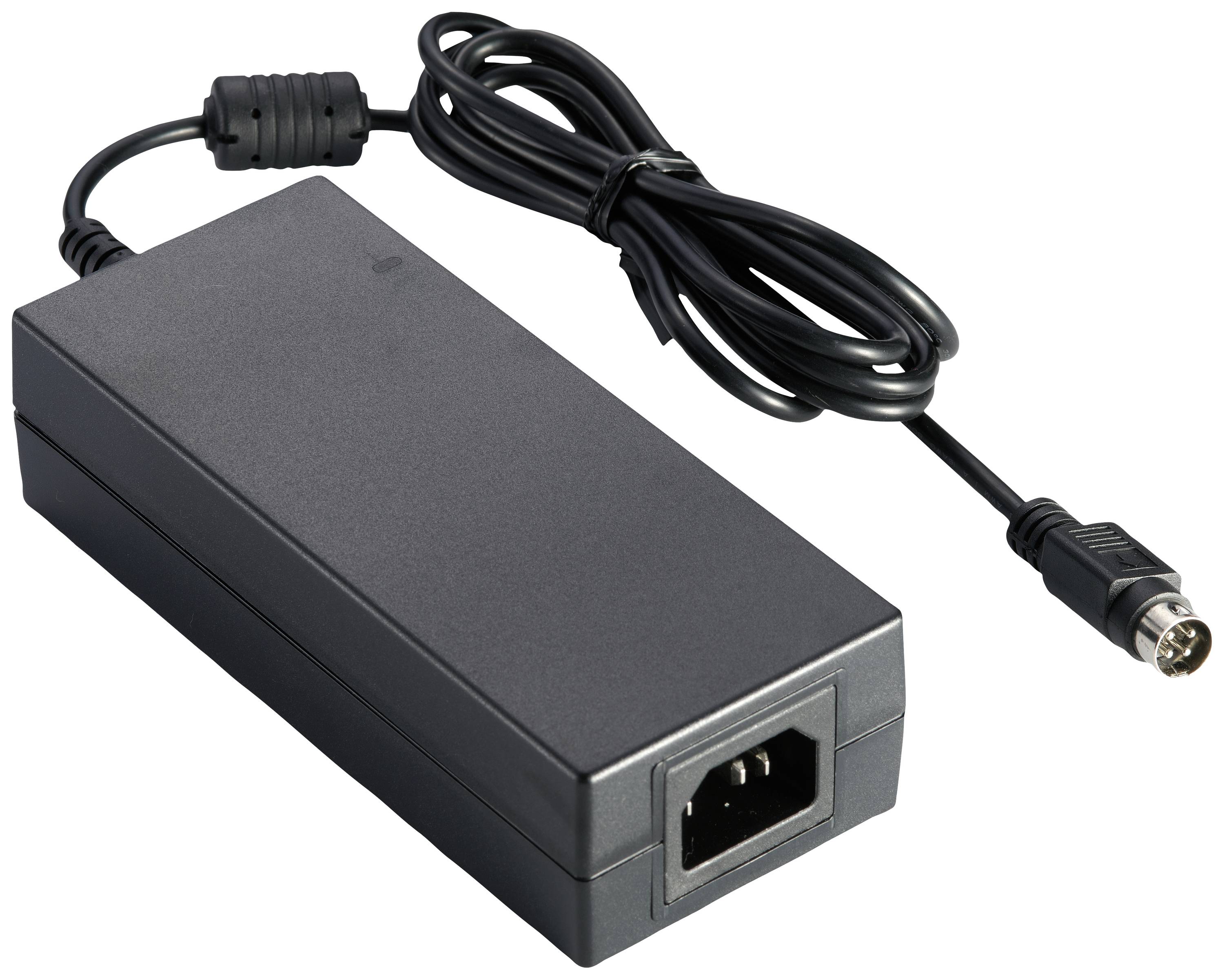

A black power adapter with cable and round plug, suitable for electronic devices, on a white background.

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 60.50 / piece)

€ 60.50

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Desktop power supply ATS 120A1-P480 with 120 Watt - Dehner Elektronik GmbH

Universal input 100 - 240 VAC
Regulated output with low ripple
Power consumption without load less than 0.1 W.
Energy efficiency as per DoE Level VI
Overvoltage protection
Overload protection
Short-circuit protection
IEC/EN 62368-1 IEC 60950-1

Technical specifications

Product type: AC/DC bench/mains PSU

Used at: Indoors
Mains socket

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

Output: 5.5/2.1 coaxial connector

Output voltage: 48 V DC

Input voltage: 240 V AC

No. of outputs: 1 x

Type: Switched PSU

Output current (high): 2,5 A

EuP Status: Step 2

Weight: 300 g

: 120 W

PSU features: Regulated

Type: Bench power supply unit

Width: 60 mm

Height: 35 mm

Length: 140.5 mm

Type: ATS 120A1-P480

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Input voltage

Output

No. of outputs

Used at

Output current (max.) - rounded

Product type

Output voltage

Dehner Elektronik ATS 120A1-P480 AC/DC bench/mains PSU 48 V DC 2.5 A 120 W Regulated

Item no:3015423

This article

240 V AC

5.5/2.1 coaxial connector

1 x

IndoorsMains socket

2.5 A

AC/DC bench/mains PSU

48 V DC

Dehner Elektronik ATS 036T-A120 Bench PSU (fixed voltage) 12 V DC 3 A 36 W Regulated

Item no:1970078

100 V AC240 V AC

5.5/2.1 coaxial connector

1 x

Indoors

3 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATS 024T-A050 Adapter 5 V DC 4 A 20 W Regulated

Item no:1972494

100 V AC240 V AC

5.5/2.1 coaxial connector

1 x

Indoors

4 A

Adapter

5 V DC

Dehner Elektronik ATS 065T-A190 Bench PSU (fixed voltage) 19 V DC 3.43 A 65 W Regulated

Item no:2001069

240 V AC

5.5/2.1 coaxial connector

1 x

Indoors

3.43 A

Bench PSU (fixed voltage)

19 V DC

Dehner Elektronik ATS 036T-P150 Bench PSU (fixed voltage) 15 V DC 2.4 A 36 W Regulated

Item no:2108091

115 V AC240 V AC

5.5/2.1 coaxial connector

1 x

Indoors

2.4 A

Bench PSU (fixed voltage)

15 V DC

Dehner Elektronik ATS 036T-P090 Bench PSU (fixed voltage) 9 V DC 3.3 A 30 W Regulated

Item no:2108092

115 V AC240 V AC

5.5/2.1 coaxial connector

1 x

Indoors

3.3 A

Bench PSU (fixed voltage)

9 V DC

Dehner Elektronik ATS 036T-P050 Bench PSU (fixed voltage) 5 V 5 A 25 W Regulated

Item no:2108093

115 V AC240 V AC

5.5/2.1 coaxial connector

1 x

Indoors

5 A

Bench PSU (fixed voltage)

5 V

Dehner Elektronik ATS 160T-P240 Bench PSU (fixed voltage) 24 V DC 6.6 A 160 W Regulated

Item no:2300379

240 V AC

4-pin

1 x

Indoors

6.6 A

Bench PSU (fixed voltage)

24 V DC

Dehner Elektronik ATS 200T-P240S Bench PSU (fixed voltage) 24 V DC 8.3 A 200 W Regulated, incl. On/Off switch

Item no:2304598

110 V AC240 V AC

Mini DIN plug (4-pin)

1 x

Indoors

8.3 A

Bench PSU (fixed voltage)

24 V DC

Dehner Elektronik ATS 036T-A240 Bench PSU (fixed voltage) 24 V DC 1.5 A 36 W Regulated

Item no:2304600

110 V AC240 V AC

5.5/2.1 coaxial connector

1 x

Indoors

1.5 A

Bench PSU (fixed voltage)

24 V DC

Documents & Downloads

Datasheet

Datasheet 3015423 Dehner Elektronik ATS 120A1-P480 AC/DC bench/mains PSU 48 V DC 2.5 A 120 W Regulated

User & Safety Instructions

User & Safety Instructions 3015423 Dehner Elektronik ATS 120A1-P480 AC/DC bench/mains PSU 48 V DC 2.5 A 120 W Regulated

Warranty Terms

Warranty Terms 3015423 Dehner Elektronik ATS 120A1-P480 AC/DC bench/mains PSU 48 V DC 2.5 A 120 W Regulated

Description

High-performance, efficient power supply. Versatile use in information technology and for audio/video applications. The adapter is suitable for worldwide use through the wide-range input. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.

This text is machine translated.

Scope of delivery

Connection cable
