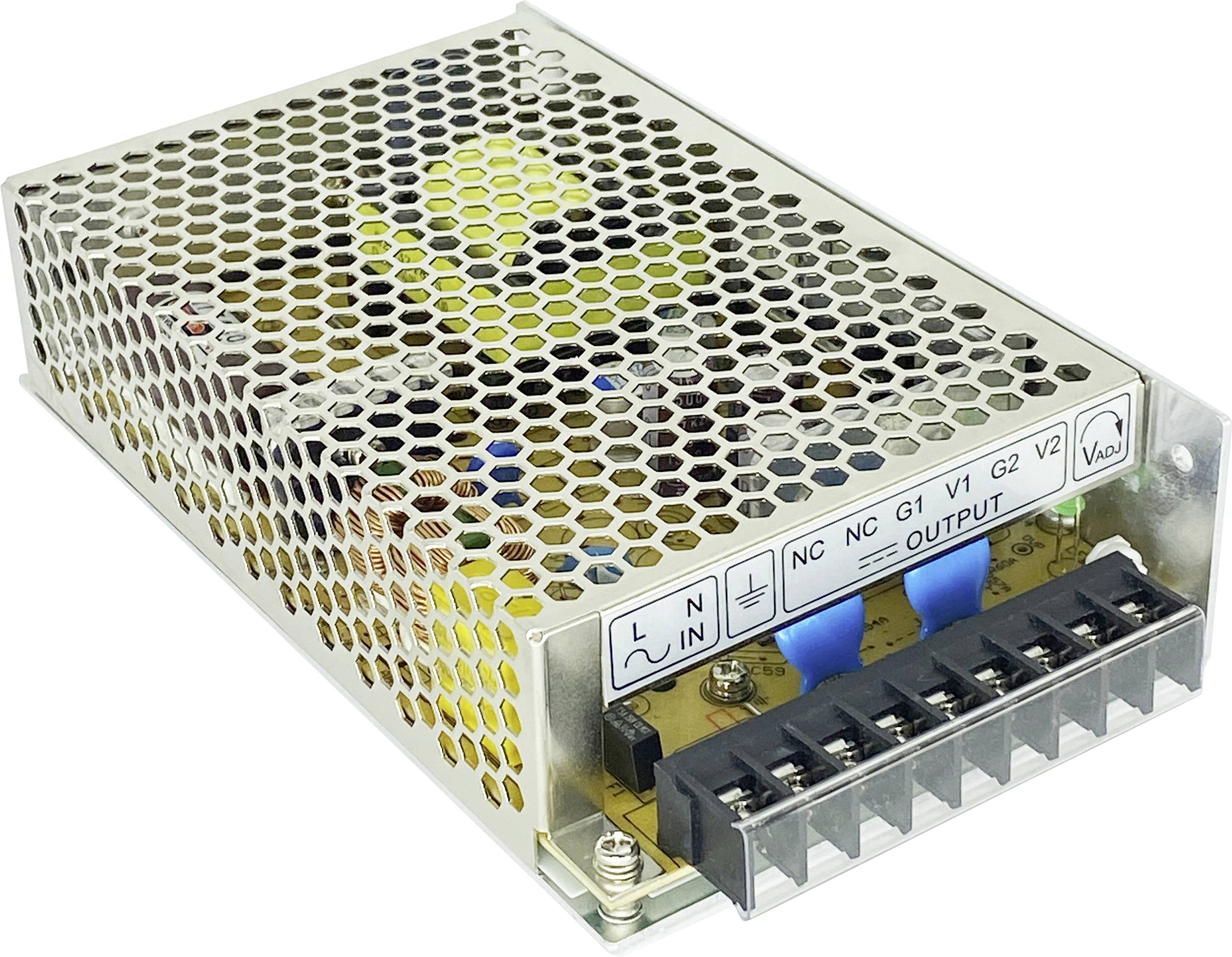

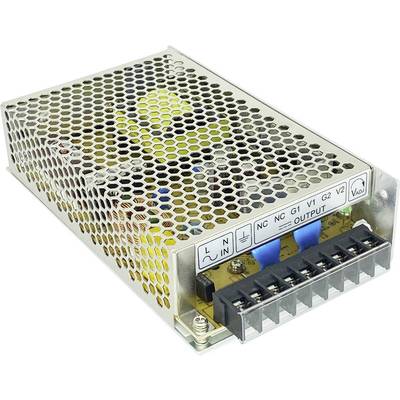

Dehner Elektronik SPS N080-D1 AC/DC industrial PSU module 9 A 80 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 87.99 / piece)
€ 87.99
incl. VAT
14-day return policy included
Highlights & Details
Industrial Power Supply SPS N080-D1 (Dual) Dehner Elektronik GmbH
- Output / 9 A
- Power 80 W
- Screw terminal
Technical specifications
- Product type
AC/DC industrial PSU module
- Max. output current
9 A
- Output current (max.) - rounded
9 A
- Min. input voltage
88 V AC
125 V DC
- Dim
(L x W x H) 159 x 95 x 38 mm
- Connection
Screw terminal
80 W
- Efficiency to
80 %
- Tolerance (output voltage)
5 %
- No. of outputs
2 x
- Output voltage 1
5 V DC
- Output voltage 2
12 V DC
- Output current 1
9 A
- Output current 2
4 A
- Type
closed
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
-20 °C
- Weight
0.51 g
- PSU features
Regulated
Surge protection
w/o cable
- Type
Switched PSU
- Width
95 mm
- Height
38 mm
- Length
159 mm
- Type
SPS N080-D1
Documents & Downloads
Datasheet
Datasheet 3397141 Dehner Elektronik SPS N080-D1 AC/DC industrial PSU module 9 A 80 W
User & Safety Instructions
User & Safety Instructions 3397141 Dehner Elektronik SPS N080-D1 AC/DC industrial PSU module 9 A 80 W
Conformity certificate
Conformity certificate 3397141 Dehner Elektronik SPS N080-D1 AC/DC industrial PSU module 9 A 80 W
Description
Switched-mode power supply in metal casing (closed design, enclosed) for providing double and triple regulated output voltage (Dual output / triple output).
High-performance, efficient power supply. Versatile application in industry, in information technology and for audio/video applications
High-quality casing power supply with performance up to 80 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
High-performance, efficient power supply. Versatile application in industry, in information technology and for audio/video applications
High-quality casing power supply with performance up to 80 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
Scope of delivery
- User manual
