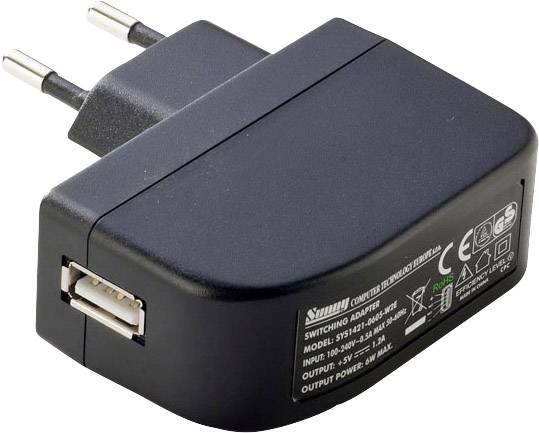

Dehner Elektronik SYS 1638-0605-W2E (Europe USB inlet) Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Highlights & Details
Plug power supply SYS 1638-0605W2E (USB-Inlet) Dehner Elektronik GmbH
- EN62368-1
- Protection class 2 (without protective conductor)
- Efficiency – Level VI (EU) 2019/1782
- Overvoltage protection
- Overload protection
- Short-circuit protection
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Used at
Mains socket
- Type
Switched PSU
- Max. output current
1.2 A
- Output voltage
5 V DC
- Output current (max.) - rounded
1.2 A
- Output
USB
- PSU features
Regulated
- Input voltage
230 V AC
6 W
- Dim
(L x W x H) 8 cm x 2.4 mm x 8 cm
- Connection
CEE 7/4 socket
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- EuP Status
Level VI
- Weight
72 g
- Cable length
150.00 cm
- Width
2.4 mm
- Height
8 cm
- Length
8 cm
- Type
SYS 1638-0605-W2E (Europe USB inlet)
Documents & Downloads
Datasheet
Datasheet 2267004 Dehner Elektronik SYS 1638-0605-W2E (Europe USB inlet) Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated
Datasheet 2267004 Dehner Elektronik SYS 1638-0605-W2E (Europe USB inlet) Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated
User & Safety Instructions
User & Safety Instructions 2267004 Dehner Elektronik SYS 1638-0605-W2E (Europe USB inlet) Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated
Conformity certificate
Conformity certificate 2267004 Dehner Elektronik SYS 1638-0605-W2E (Europe USB inlet) Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated
Warranty Terms
Warranty Terms 2267004 Dehner Elektronik SYS 1638-0605-W2E (Europe USB inlet) Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated
Description
Plug-in power supplies in compact design. This allows several devices to be operated side by side in socket strips.Powerful, compact power supply. Ideal for different applications. The power supply is suitable for continuous operation and offers maximum safety through the various protective measures. The power supply complies with the latest international energy saving guidelines.Wide-range input from 100V/AC to 240V/AC. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and thus a low heat generation.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Operating instructions
