Name: DEWALT DT5222-QZ HSS-G Metal twist drill bit 10 mm Total length 133 mm DIN 338 1 pc(s)
Brand: DEWALT
SKU: 2896917
Availability: BackOrder

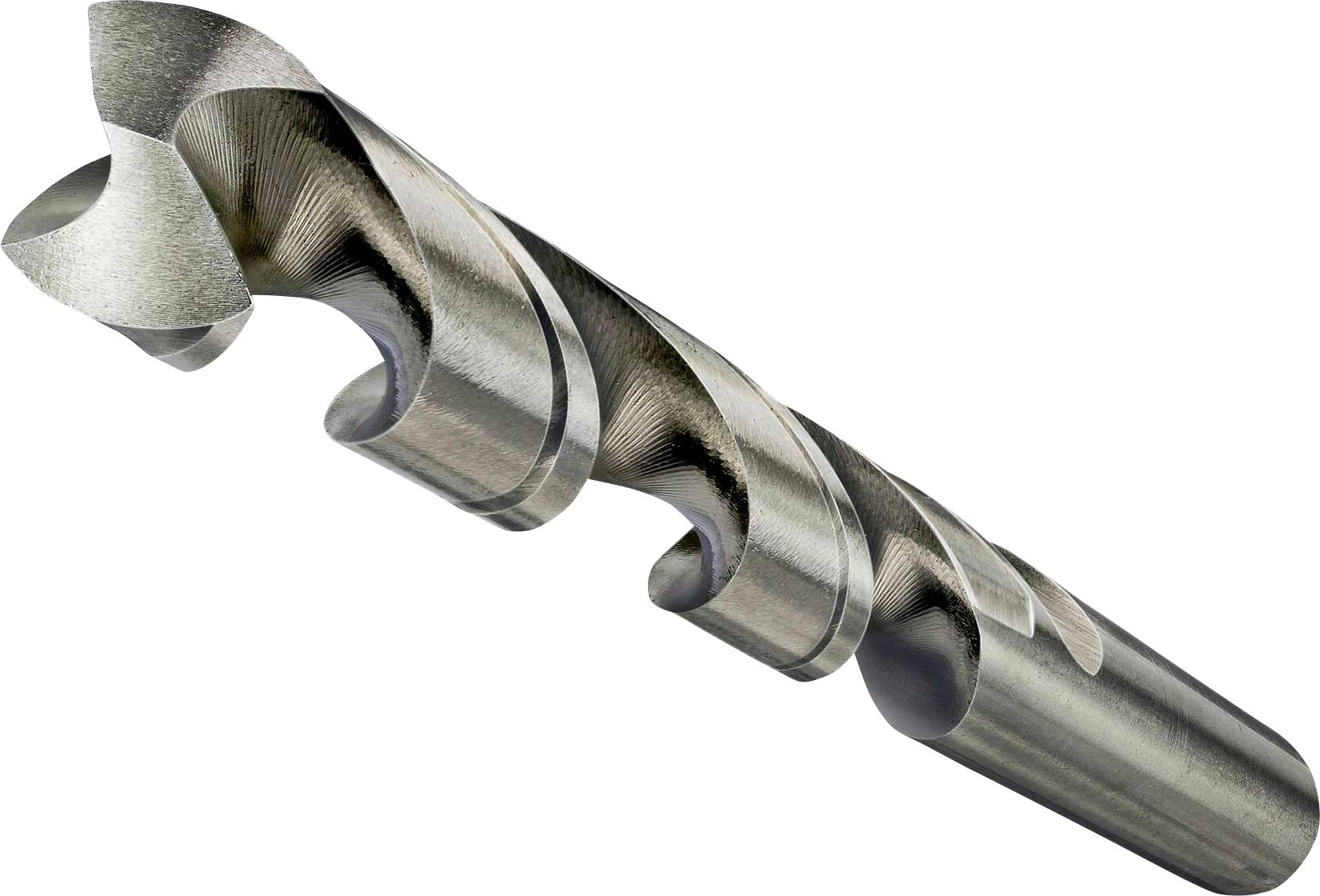

Metal drill bit in close-up, showing the sharp spiral blade and robust shaft. Suitable for machining hard materials.

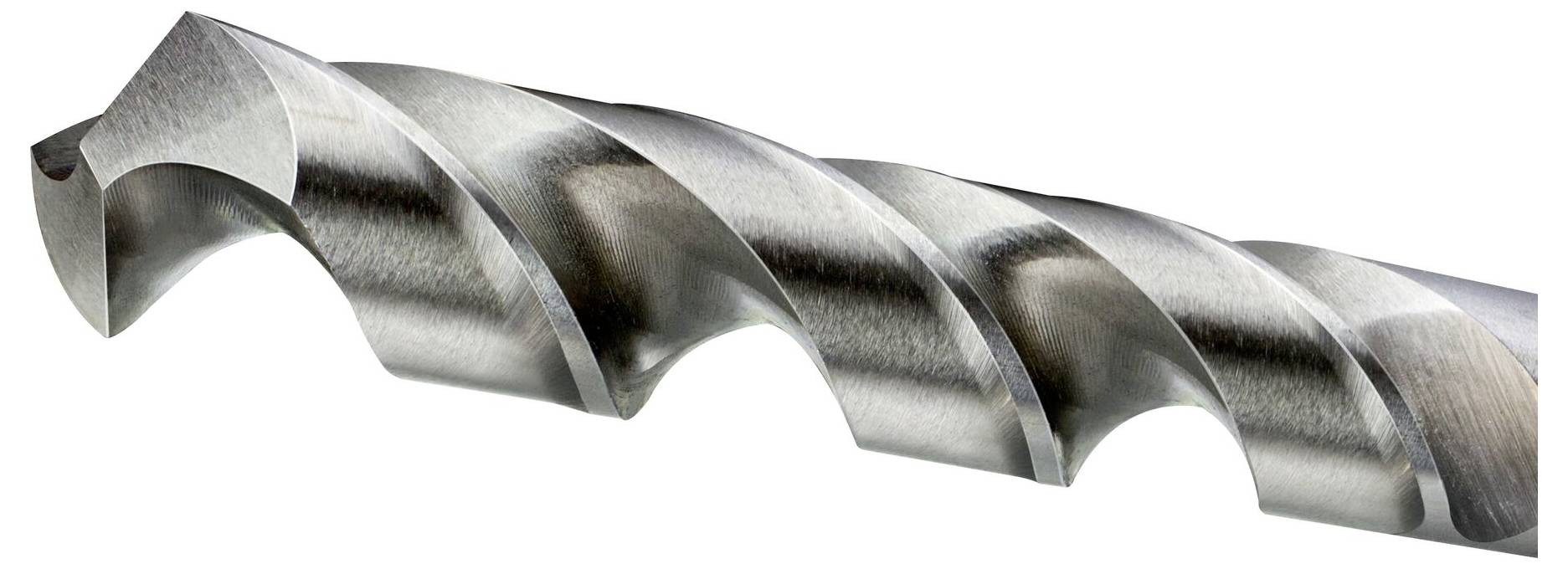

Close-up of a gleaming metal drill bit with spiral-edged cutting surfaces that appear smooth and sharp.

1/2

Product type

Metal twist drill bit

Drill hole Ø

10 mm

Content

1 pc(s)

Material

HSS-G

Material suitability

Metal

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.79 / piece)

€ 4.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DEWALT DT5222-QZ HSS-G Metal twist drill bit 10 mm Total length 133 mm DIN 338 1 pc(s)

Product strengths:Surface metallic blank, dry preservation
Diameter tolerance h8
Metalically blank surface, dry preservation
Made of high-performance quick cut steel (HSS) according to DIN 338
Precision ground spiral groove for maximum drilling progress and shelf life as well as outstanding run out accuracy
Diameter tolerance h8
Made of the fully ground, right-hand side spiral groove type N, 118° tip angle, tapered edge
Drill diameter of more than 13 mm with shaft rotated to 12.7 mm
Drill diameter of more than 13 mm with shaft rotated to 12.7 mm
Precision ground spiral groove for maximum drilling progress and shelf life as well as outstanding run out accuracy
Made of high-performance quick cut steel (HSS) according to DIN 338
From the fully ground, right-handed spiral grooves, type N, 118° tip angle, cone sheath grinding

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 10 mm

Drill hole Ø tolerance limit: h 8

Tip angle: 118°

Content: 1 pc(s)

Material: HSS-G

Material suitability: Metal

Working length: 87 mm

Total length: 133 mm

Drill hole diameter: 6 - 10 mm

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Material

Drill hole Ø

DEWALT DT5222-QZ HSS-G Metal twist drill bit 10 mm Total length 133 mm DIN 338 1 pc(s)

Item no:2896917

Dispatches on Fri 23 Oct

Conrad Electronic

This article

HSS-G

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.79^*

DEWALT DT5045-QZ DT5045-QZ HSS-G Metal twist drill bit 4.8 mm Total length 86 mm 1 pc(s)

Item no:2896897

Dispatches on Fri 23 Oct

Conrad Electronic

HSS-G

4.8 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.49^*

DEWALT DT5050-QZ DT5050-QZ HSS-G Metal twist drill bit 7 mm Total length 109 mm 1 pc(s)

Item no:2896898

Dispatches on Fri 23 Oct

Conrad Electronic

HSS-G

7 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

DEWALT DT5051-QZ DT5051-QZ HSS-G Metal twist drill bit 7.5 mm Total length 109 mm Triangular shank 1 pc(s)

Item no:2896899

Dispatches on Fri 23 Oct

Conrad Electronic

HSS-G

7.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

DEWALT DT5055-QZ DT5055-QZ HSS-G Metal twist drill bit 9.5 mm Total length 125 mm 1 pc(s)

Item no:2896900

Dispatches on Fri 23 Oct

Conrad Electronic

HSS-G

9.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

DEWALT DT5057-QZ DT5057-QZ HSS-G Metal twist drill bit 10.5 mm Total length 133 mm 1 pc(s)

Item no:2896901

Dispatches on Fri 23 Oct

Conrad Electronic

HSS-G

10.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

DEWALT DT5058-QZ DT5058-QZ HSS-G Metal twist drill bit 11 mm Total length 142 mm 1 pc(s)

Item no:2896902

Dispatches on Fri 23 Oct

Conrad Electronic

HSS-G

11 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.99^*

DEWALT DT5059-QZ DT5059-QZ HSS-G Metal twist drill bit 11.5 mm Total length 142 mm 1 pc(s)

Item no:2896903

Dispatches on Fri 23 Oct

Conrad Electronic

HSS-G

11.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

DEWALT DT5061-QZ DT5061-QZ HSS-G Metal twist drill bit 12.5 mm Total length 151 mm Triangular shank 1 pc(s)

Item no:2896904

Fast track dispatch on Thu 15 Oct

3 Piece(s)Conrad Electronic

HSS-G

12.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

DEWALT DT5063-QZ DT5063-QZ HSS-G Metal twist drill bit 4.1 mm Total length 75 mm 1 pc(s)

Item no:2896905

Dispatches on Fri 23 Oct

Conrad Electronic

HSS-G

4.1 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2896917 DEWALT DT5222-QZ HSS-G Metal twist drill bit 10 mm Total length 133 mm DIN 338 1 pc(s)

Description

Dewalt DT5222-QZ metal drill HSS-G 10x133x87mm

This text is machine translated.

Description

Dewalt DT5222-QZ metal drill HSS-G 10x133x87mm

This text is machine translated.
