Buy Diotec Rectifier AL1K DO 213AA 800 V 1 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

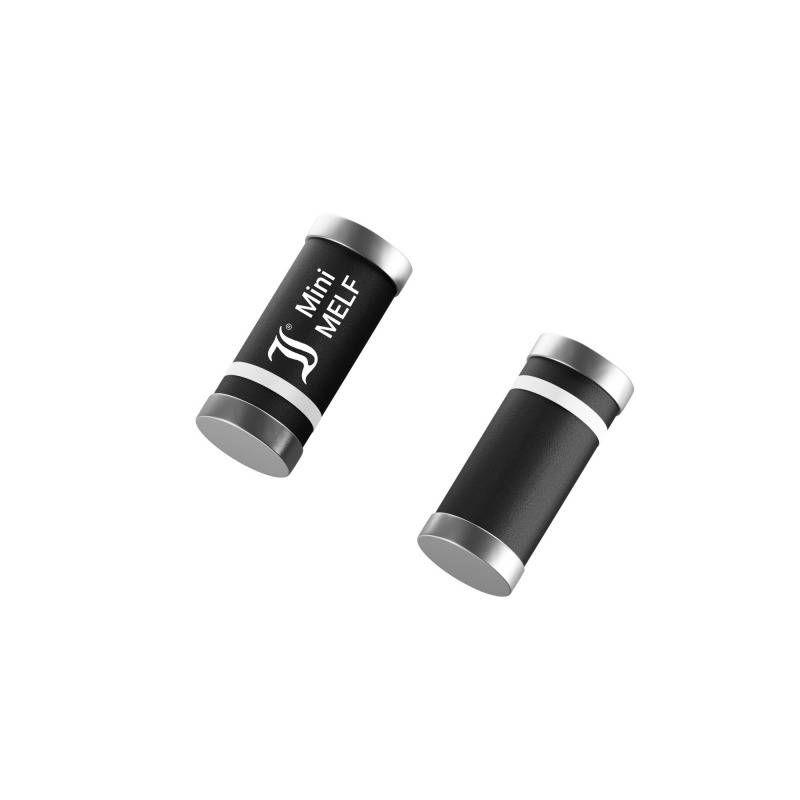

'Two black cylindrical resistors with silver end caps, inscription: Mini MELF. Electronic components for circuits.'

'Two black cylindrical resistors with silver end caps, inscription: Mini MELF. Electronic components for circuits.'

Image similar

Diotec

Product type

Rectifier

Enclosure

DO 213AA

Forward current I(F)

1 A

Reverse voltage U(R)

800 V

Forward voltage U(F)

1.30 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 250

Total (€ 0.08143 / piece)

€ 0.08

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type SMDHousing DO-213AA/MiniMelfPeriodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 175 °CForward voltage - VF 1.30 VIF 1.00 ASurge current - IFSM 27.00 AReverse current - IR 3,000 µAVR 800 VLock layer capacity - CJ: PFVR V

Type: AL1K

Product type: Rectifier

Enclosure: DO 213AA

Manufacturer: Diotec

Forward current I(F): 1 A

Reverse voltage U(R): 800 V

Forward voltage U(F): 1.30 V

Reverse leakage current I(r): 3 µA

Operating temperature (max.): 175 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 27 A

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2807256 Diotec Rectifier AL1K DO 213AA 800 V 1 A

User & Safety Instructions

User & Safety Instructions 2807256 Diotec Rectifier AL1K DO 213AA 800 V 1 A
