Buy Diotec Rectifier AL1M DO 213AA 1000 V 1 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

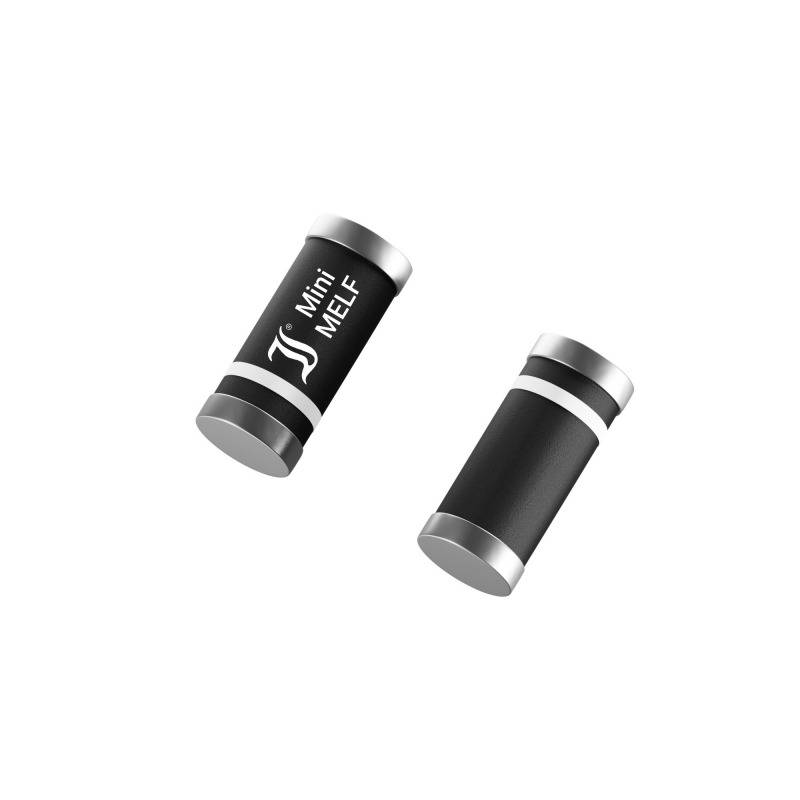

'Two black cylindrical resistors with silver end caps and the inscription Mini MELF.'

'Two black cylindrical resistors with silver end caps and the inscription Mini MELF.'

Image similar

Diotec

Product type

Rectifier

Enclosure

DO 213AA

Forward current I(F)

1 A

Reverse voltage U(R)

1000 V

Forward voltage U(F)

1.30 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.09798 / piece)

€ 0.10

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type SMDHousing DO-213AA/MiniMelfPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 175 °CForward voltage - VF 1.30 VIF 1.00 ASurge current - IFSM 27.00 AReverse current - IR 3,000 µAVR 1000 VLock layer capacity - CJ: PFVR V

Type: AL1M

Product type: Rectifier

Enclosure: DO 213AA

Manufacturer: Diotec

Forward current I(F): 1 A

Reverse voltage U(R): 1000 V

Forward voltage U(F): 1.30 V

Reverse leakage current I(r): 3 µA

Operating temperature (max.): 175 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 27 A

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2807258 Diotec Rectifier AL1M DO 213AA 1000 V 1 A

User & Safety Instructions

User & Safety Instructions 2807258 Diotec Rectifier AL1M DO 213AA 1000 V 1 A
