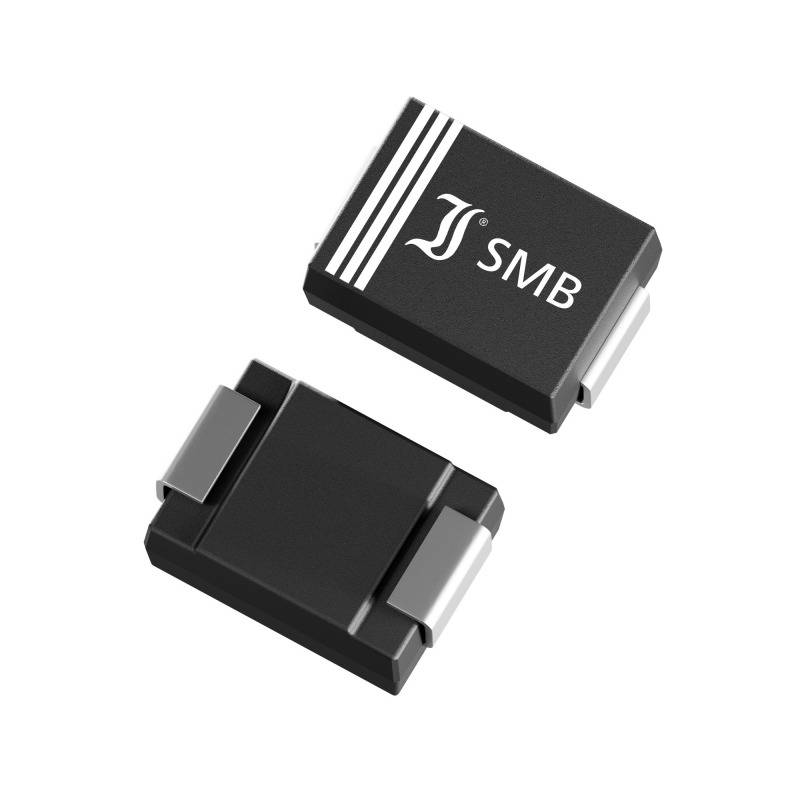

Diotec Rectifier ER2B DO 214AA 100 V 2 A
Product type
Rectifier
Enclosure
DO 214AA
Forward current I(F)
2 A
Reverse voltage U(R)
100 V
Forward voltage U(F)
1 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 200
Total (€ 0.11886 / piece)
€ 0.12
incl. VAT
14-day return policy included
Technical specifications
- Type
ER2B
- Product type
Rectifier
- Enclosure
DO 214AA
- Manufacturer
Diotec
- Forward current I(F)
2 A
- Reverse voltage U(R)
100 V
- Forward voltage U(F)
1 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
50 A
- Reverse recovery time T(rr)
35 ns
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2807664 Diotec Rectifier ER2B DO 214AA 100 V 2 A
User & Safety Instructions
User & Safety Instructions 2807664 Diotec Rectifier ER2B DO 214AA 100 V 2 A
