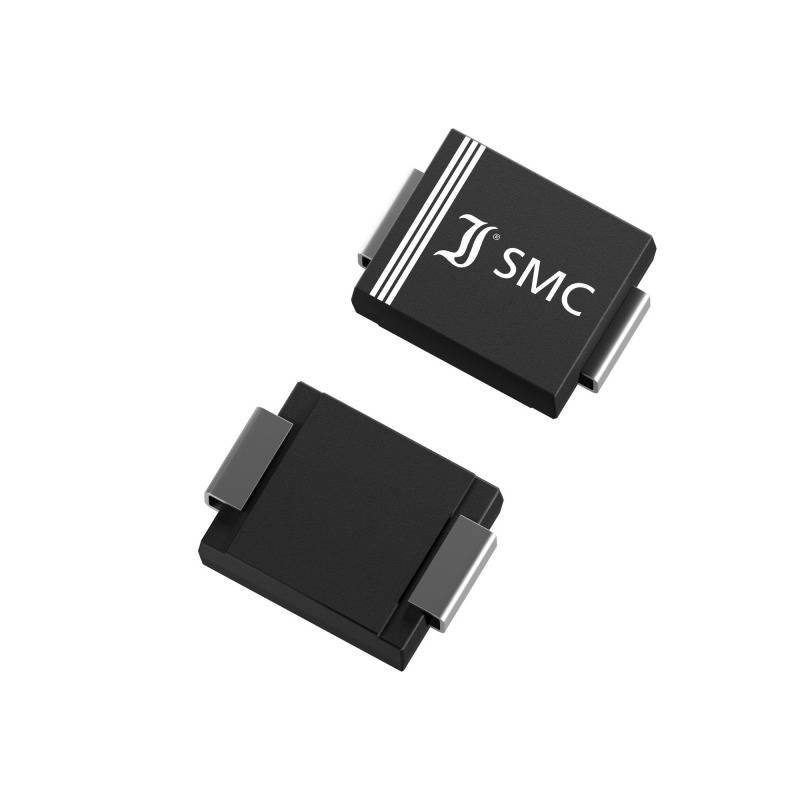

Two black electronic components in rectangular form with metallic connection surfaces, one of which is marked 'SMC'.

Two black electronic components in rectangular form with metallic connection surfaces, one of which is marked 'SMC'.

Image similar

Diotec

Product type

Rectifier

Enclosure

DO 214AB

Forward current I(F)

3 A

Reverse voltage U(R)

800 V

Forward voltage U(F)

1.15 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

2130 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 100

Total (€ 0.06984 / piece)

€ 0.07

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDHOUSING DO-214AB/SMCPeriodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 3.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 1.15 VIF 3.00 ASurge current - IFSM 100.00 AReverse current - IR 5,000 µAVR 800 VLock layer capacity - CJ: PFVR V

Type: S3K

Product type: Rectifier

Enclosure: DO 214AB

Manufacturer: Diotec

Forward current I(F): 3 A

Reverse voltage U(R): 800 V

Forward voltage U(F): 1.15 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 100 A

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2808751 Diotec Rectifier S3K DO 214AB 800 V 3 A

User & Safety Instructions

User & Safety Instructions 2808751 Diotec Rectifier S3K DO 214AB 800 V 3 A
