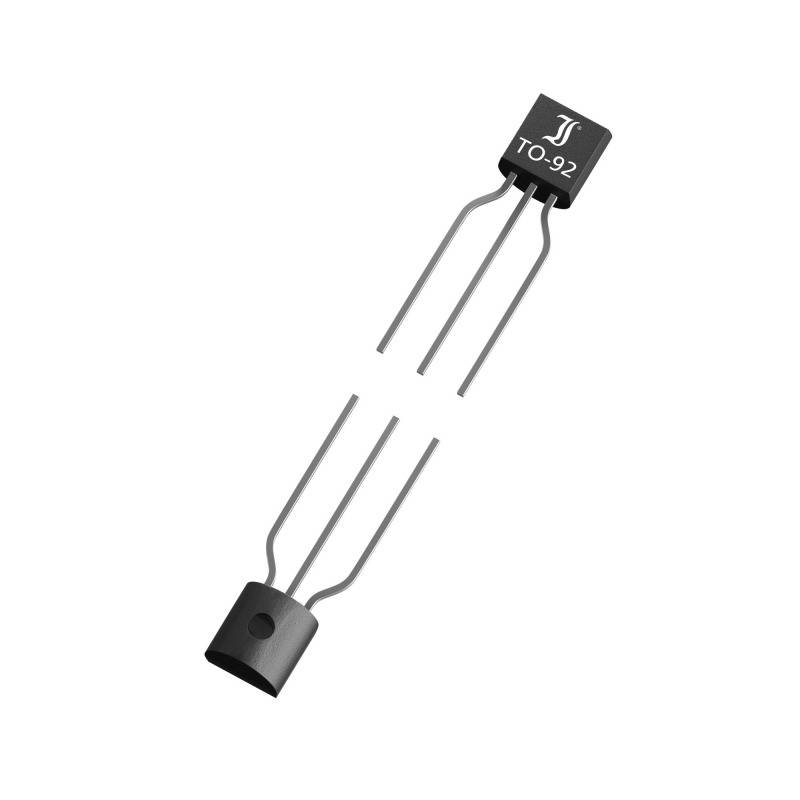

A transistor in a TO-92 package with three legs. Utilisation devices are used for amplification and switching in electronic circuits.

A transistor in a TO-92 package with three legs. Utilisation devices are used for amplification and switching in electronic circuits.

Image similar

Diotec

Product type

Transistor (BJT) - Discrete

Enclosure

TO 92

Type

NPN

Collector current

800 mA

Collector emitter voltage U(CEO)

25 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1226 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.02 / piece)

€ 0.02

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type wire-leadHousing TO-92Collector emitter voltage - VCEO 25 VDC collector current - IC: 800 mAPolarity - pin: NPNJunction temperature - Tjmax 150 °CPower loss - Ptot 0,625 W.Collector base current ratio - hfe: 400VCE 1 VIC 100 mACollector saturation voltage - VCEsat 700 mVIC 500 mAIB 50 mATransit frequency - ft:100 MHzIC 10 mAVCE 5 VF 50 MHz

Type: BC338-40

Product type: Transistor (BJT) - Discrete

Enclosure: TO 92

Manufacturer: Diotec

Type: NPN

Collector current: 800 mA

Collector emitter voltage U(CEO): 25 V

Collector-emitter saturation voltage (max.): 700 mV

Power (max) P(TOT): 0.625 W

DC current gain (hFE): 400

Transit frequency f(T): 50 MHz

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)

Operating temperature (max.): 150 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2809153 Diotec Transistor (BJT) - Discrete BC338-40 TO 92 NPN

User & Safety Instructions

User & Safety Instructions 2809153 Diotec Transistor (BJT) - Discrete BC338-40 TO 92 NPN
