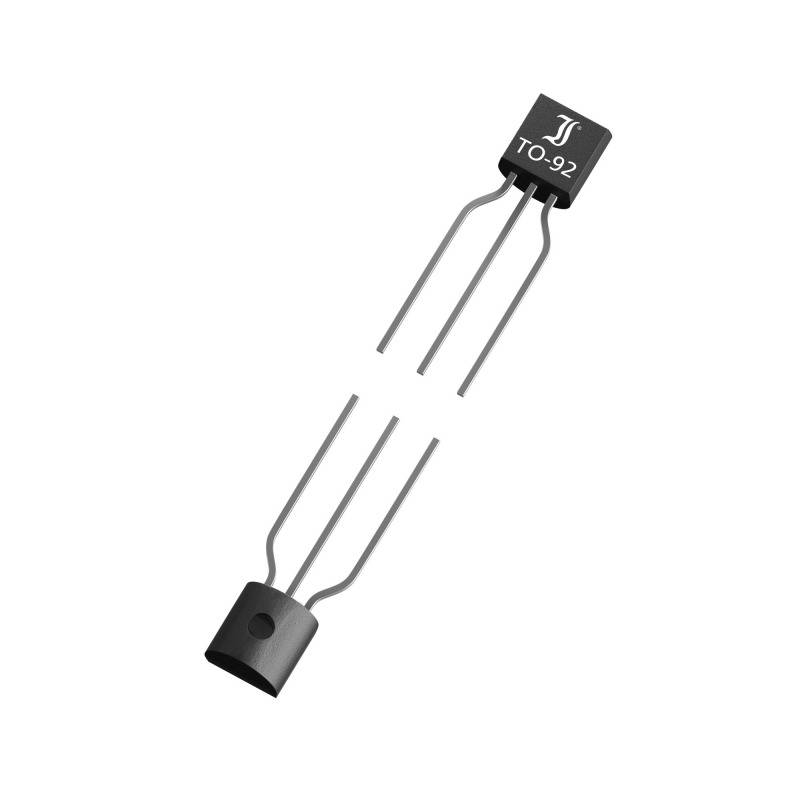

NPN transistor in a TO-92 package with three pins, used in electronic circuits for amplification or switching.

NPN transistor in a TO-92 package with three pins, used in electronic circuits for amplification or switching.

Image similar

Diotec

Product type

Transistor (BJT) - Discrete

Enclosure

TO 92

Type

NPN

Collector current

100 mA

Collector emitter voltage U(CEO)

65 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.03144 / piece)

€ 23.58

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type wire-leadHousing TO-92Collector emitter voltage - VCEO 65 VDC collector current - IC: 100 mAPolarity - pin: NPNJunction temperature - Tjmax 150 °CPower loss - Ptot 0,500 W.Collector base current ratio - hfe: 120VCE 5 VIC 100 mACollector saturation voltage - VCEsat 600 mVIC 100 mAIB 5 mATransit frequency - ft:300 MHzIC 10 mAVCE 5 VF 100 MHz

Type: BC546A

Product type: Transistor (BJT) - Discrete

Enclosure: TO 92

Manufacturer: Diotec

Type: NPN

Collector current: 100 mA

Collector emitter voltage U(CEO): 65 V

Collector-emitter saturation voltage (max.): 600 mV

Power (max) P(TOT): 0.5 W

DC current gain (hFE): 120

Transit frequency f(T): 100 MHz

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)

Operating temperature (max.): 150 °C

UKCA: yes
