Name: Diotec Transistor (BJT) - Discrete BC546ABK TO-92BK NPN
Brand: Diotec
SKU: 2809155
Availability: BackOrder

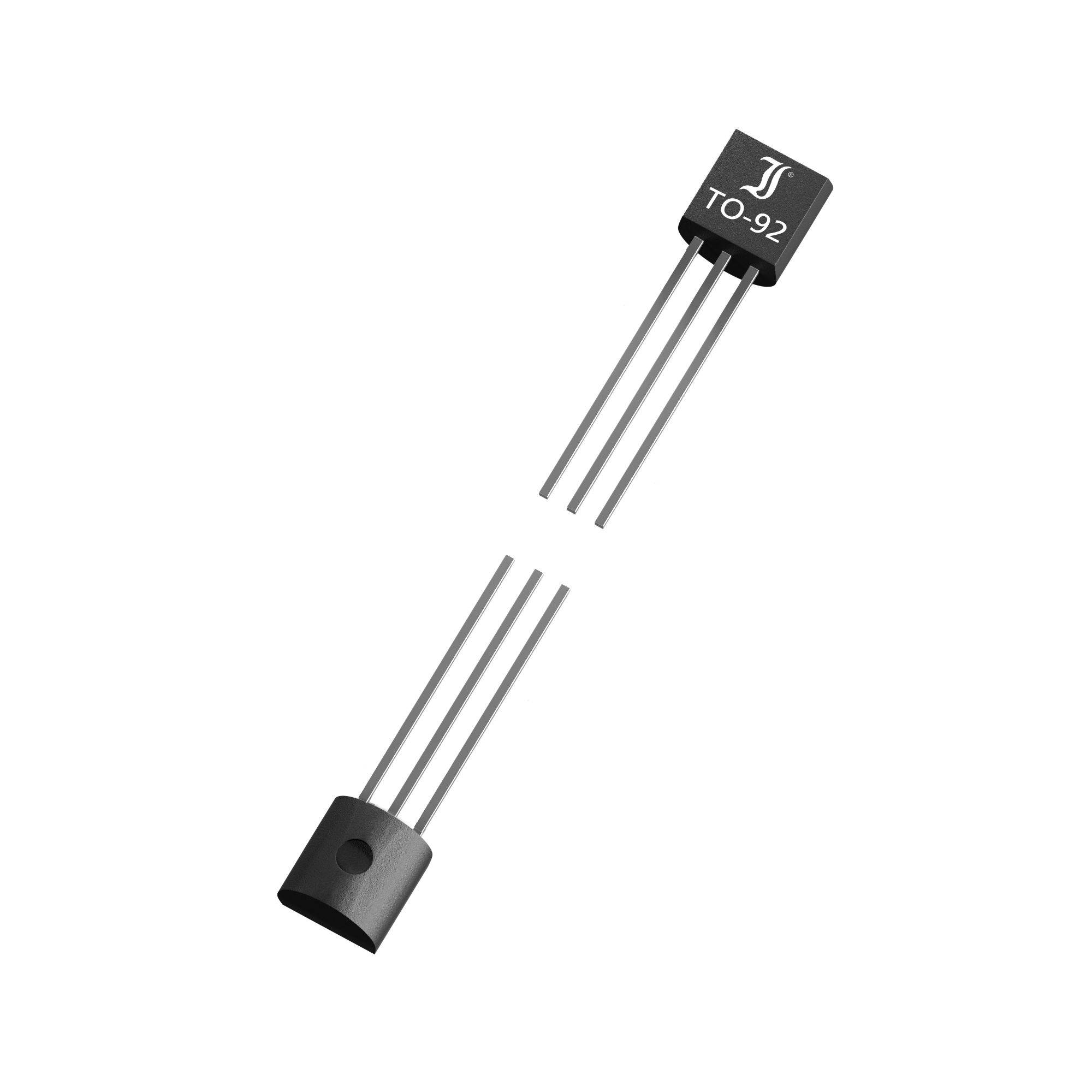

A black semiconductor component in a TO-92 package with three wire connections protruding from the bottom. Upper part removed and shown separately.

Image similar

Product type

Transistor (BJT) - Discrete

Enclosure

TO-92BK

Type

NPN

Collector current

100 mA

Collector emitter voltage U(CEO)

65 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue, 12 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 750

Total (€ 0.03461 / piece)

€ 25.96

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Transistor (BJT) - Discrete

Our service for you

Technical specifications

Type wire-leadCasing TO-92BK.Collector emitter voltage - VCEO 65 VDC collector current - IC: 100 mAPolarity - pin: NPNJunction temperature - Tjmax 150 °CPower loss - Ptot 0,500 W.Collector base current ratio - hfe: 110VCE 5 VIC 100 mACollector saturation voltage - VCEsat 600 mVIC 100 mAIB 5 mATransit frequency - ft:300 MHzIC 10 mAVCE 5 VF 100 MHz

Type: BC546ABK

Product type: Transistor (BJT) - Discrete

Enclosure: TO-92BK

Manufacturer: Diotec

Type: NPN

Collector current: 100 mA

Collector emitter voltage U(CEO): 65 V

Collector-emitter saturation voltage (max.): 600 mV

Power (max) P(TOT): 0.5 W

DC current gain (hFE): 110

Transit frequency f(T): 100 MHz

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)

Operating temperature (max.): 150 °C
