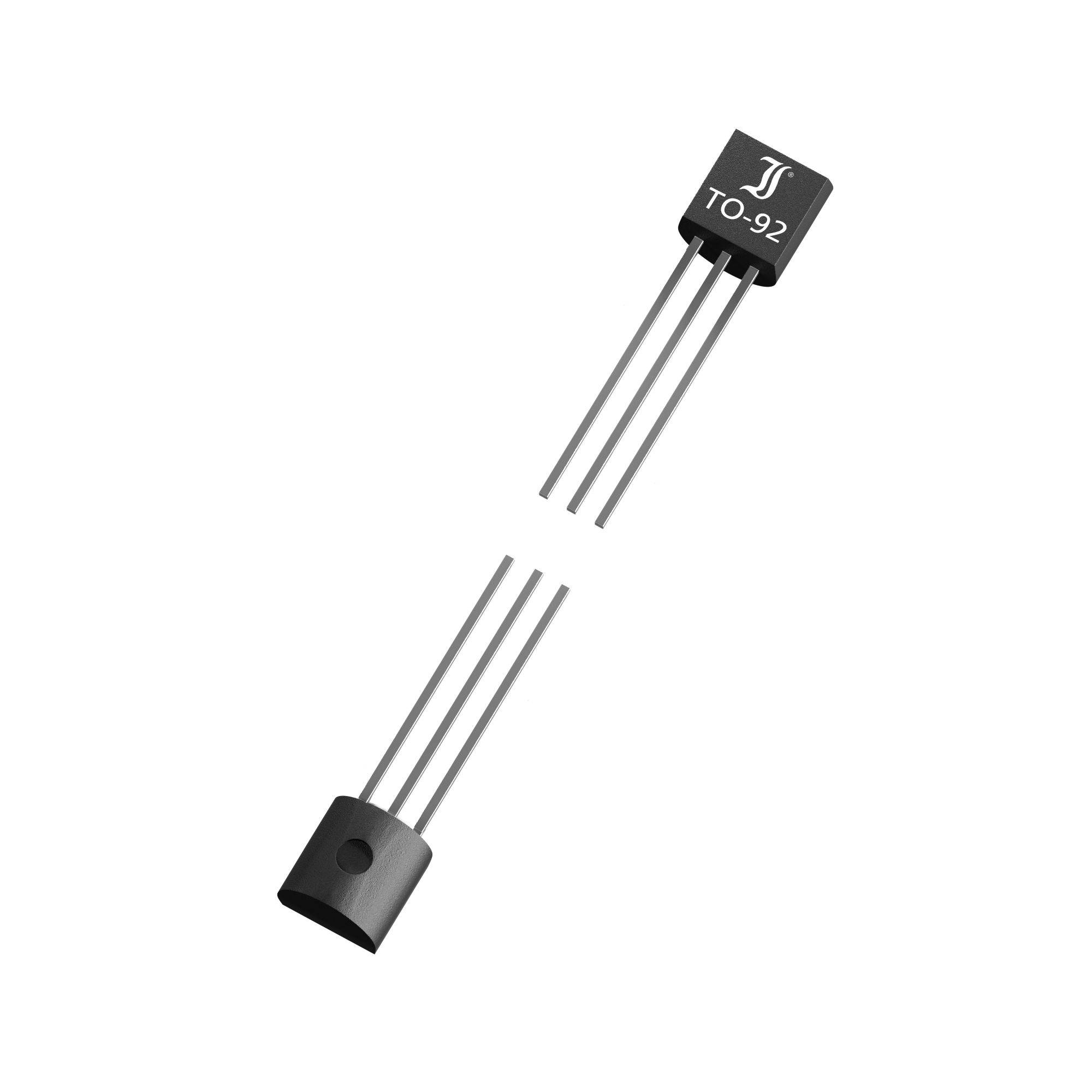

Image similar
Image similar
Diotec Transistor (BJT) - Discrete BC549CBK TO-92BK NPN
EAN:
Part number:
Item no:
Enclosure
TO-92BK
Type
NPN
Collector current
100 mA
Collector emitter voltage U(CEO)
30 V
Power (max) P(TOT)
0.5 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1000
-
€ 0.02203
3000
9% = € 0.00
€ 0.02003
5000
13% = € 0.00
€ 0.01923
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 1000
Total (€ 0.02203 / piece)
€ 22.03
plus VAT.
Technical specifications
- Type wire-leadCasing TO-92BK.Collector emitter voltage - VCEO 30 VDC collector current - IC: 100 mAPolarity - pin: NPNJunction temperature - Tjmax 150 °CPower loss - Ptot 0,500 W.Collector base current ratio - hfe: 400VCE 5 VIC 100 mACollector saturation voltage - VCEsat 600 mVIC 100 mAIB 5 mATransit frequency - ft:300 MHzIC 10 mAVCE 5 VF 100 MHz
- Type
BC549CBK
- Enclosure
TO-92BK
- Manufacturer
Diotec
- Type
NPN
- Collector current
100 mA
- Collector emitter voltage U(CEO)
30 V
- Collector-emitter saturation voltage (max.)
600 mV
- Power (max) P(TOT)
0.5 W
- DC current gain (hFE)
400
- Transit frequency f(T)
100 MHz
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Content
1 pc(s)
- Operating temperature (max.)
150 °C
- UKCA
yes
- Product type
Transistor (BJT) - Discrete
Documents & Downloads
Datasheet
Datasheet 2809166 Diotec Transistor (BJT) - Discrete BC549CBK TO-92BK NPN
User & Safety Instructions
User & Safety Instructions 2809166 Diotec Transistor (BJT) - Discrete BC549CBK TO-92BK NPN
