Name: Diotec Transistor (BJT) - Discrete BC557CBK TO-92BK PNP
Brand: Diotec
SKU: 2809173
Availability: InStock

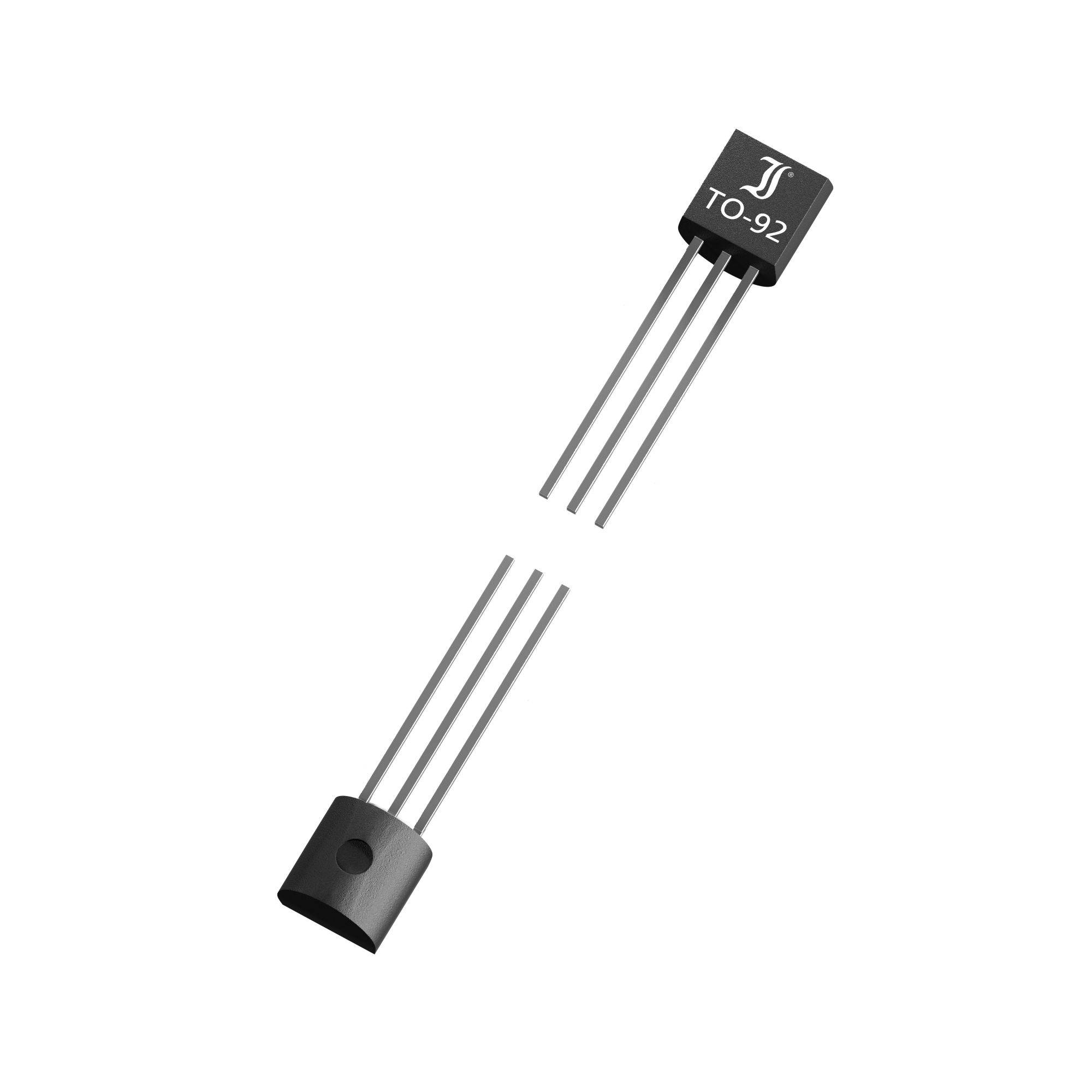

A black transistor in a TO-92 package with three legs, open case, a typical component in electronic circuits.

Image similar

Product type

Transistor (BJT) - Discrete

Enclosure

TO-92BK

Type

PNP

Collector current

100 mA

Collector emitter voltage U(CEO)

45 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1517 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 100

Total (€ 0.024 / piece)

€ 2.40

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type wire-leadCasing TO-92BK.Collector emitter voltage - VCEO 45 VDC collector current - IC: 100 mAPolarity - pin PNPJunction temperature - Tjmax 150 °CPower loss - Ptot 0,500 W.Collector base current ratio - hfe: 330VCE 5 VIC 2 mACollector saturation voltage - VCEsat 650 mVIC 100 mAIB 5 mATransit frequency - ft:150 MHzIC 10 mAVCE 5 Vf MHz

Type: BC557CBK

Product type: Transistor (BJT) - Discrete

Enclosure: TO-92BK

Manufacturer: Diotec

Type: PNP

Collector current: 100 mA

Collector emitter voltage U(CEO): 45 V

Collector-emitter saturation voltage (max.): 650 mV

Power (max) P(TOT): 0.5 W

DC current gain (hFE): 330

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)

Operating temperature (max.): 150 °C

UKCA: yes
